Nelweld Operations and Service Manual
- 44 -

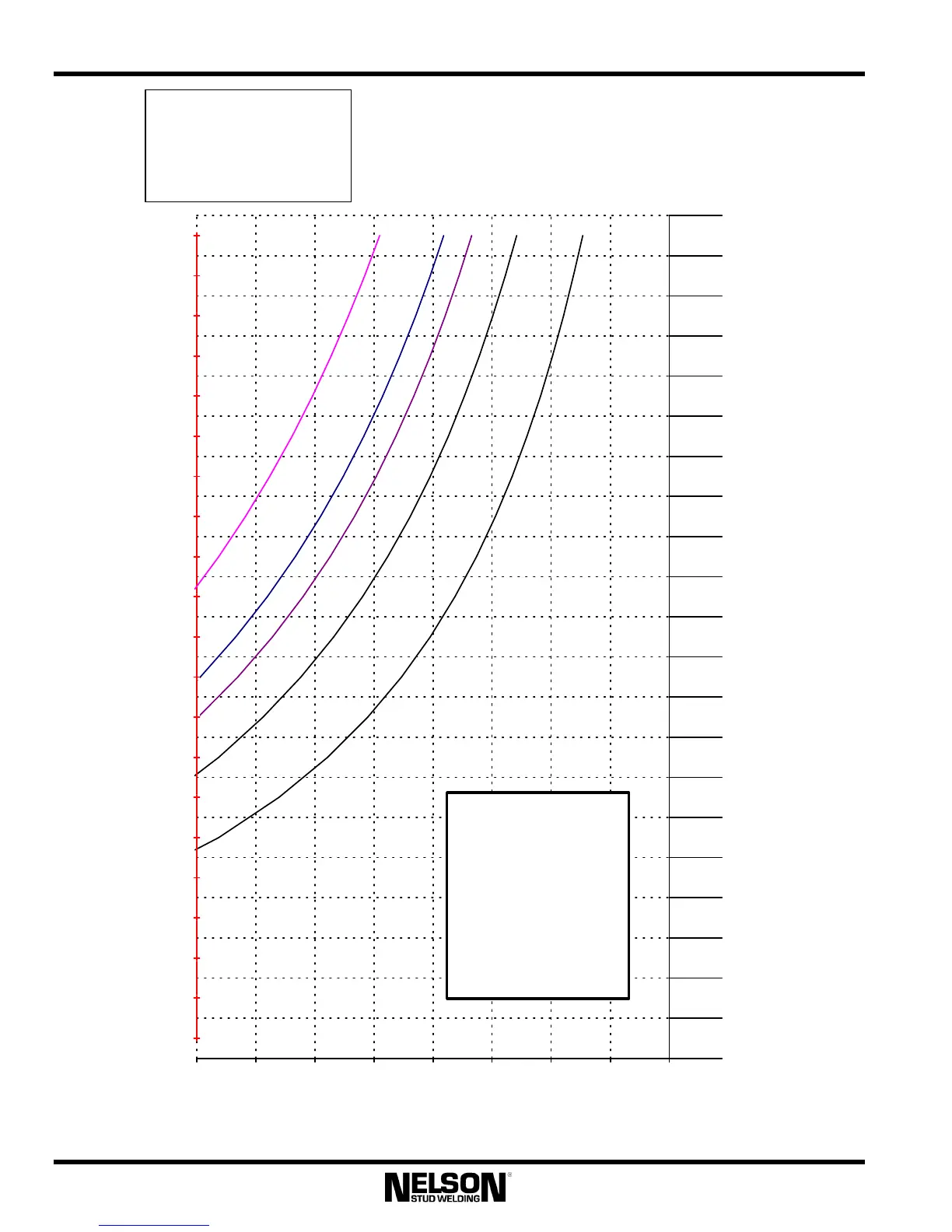

Maximum Cable Length: Nelweld 6000
500 750
1000 1250 1500 1750 2000 2250 2500
10 33 66 98 131 164 197 230 262 295 328 361 394 427 459 492 525 558 591 623 656
3 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200
Cable Length (ft or m), including ground cable
Current (amps)
feet
meters
4/0 (0000), 120mm
2
95mm
2
3/0 (000), 85mm
2
2/0 (00), 70mm
2
1/0 (0), 50mm
2
Example: Desired current = 1750 A Maximum Weld Cable Length: 1/0, 50mm
2
: 255 ft (77 m)
2/0, 70mm
2
: 361 ft (120m)
3/0, 85mm
2
: 440 ft (133m)
95mm
2
: 492 ft (150m)
4/0, 120mm
2
: 623 ft (190m)
Note: Some
4/O cable is
107sqmm,
which falls
between the
95sqmm and
120sqmm
