GB-13

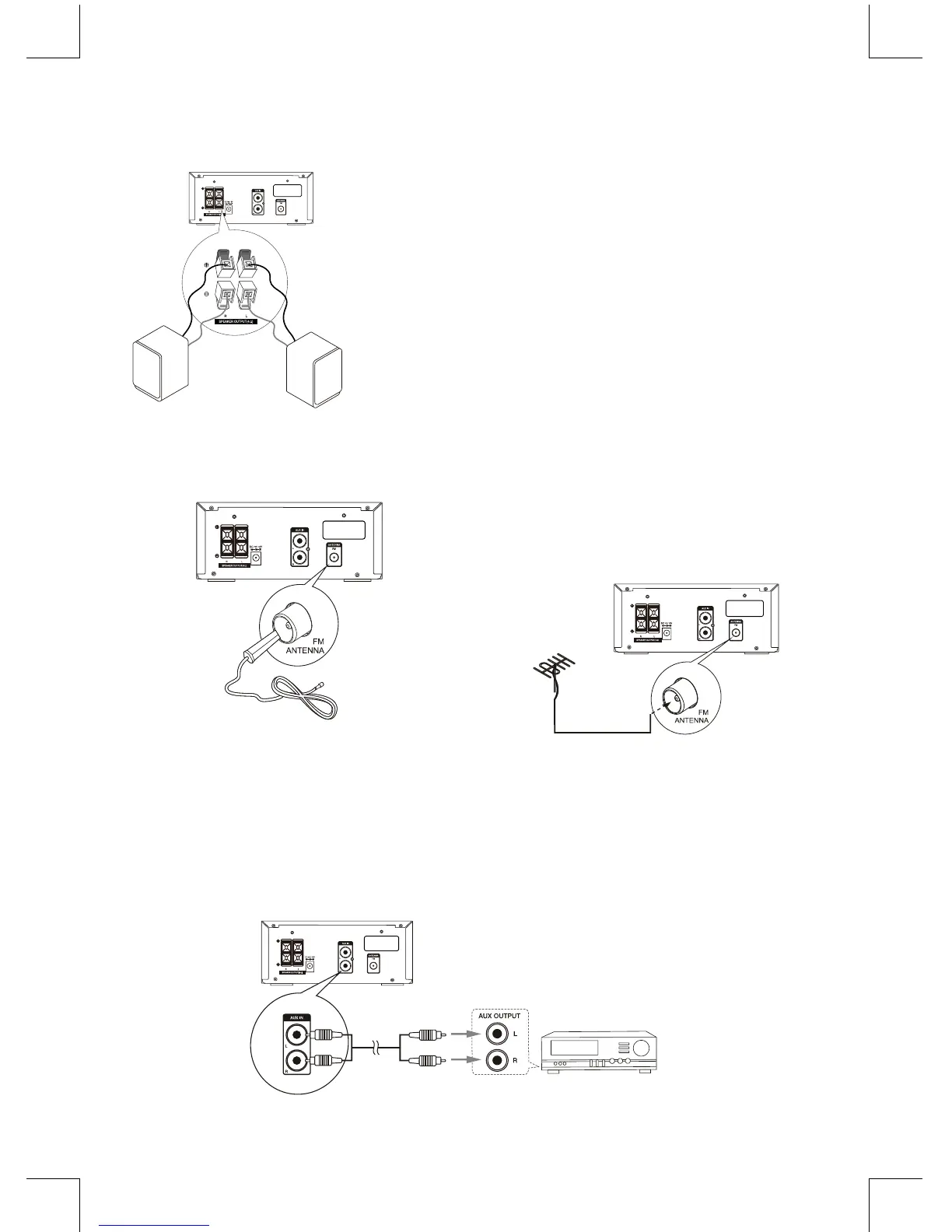

Connecting the Speakers
Connect the cable with a black head to the (-) terminals
and cable with a red head to the (+) terminals.
Connect to the FM Antenna
Caution:
To avoid noise, keep antennas away from the system, the connecting cord and the AC power
cord.
Connecting Auxiliary Equipment
Connect the AUX Input terminals on the rear of the unit to the line output terminals on the auxil-
iary equipment with an audio cable (not supplied) illustrated below.
2. If reception is poor, connect the outside
antenna.
Note: Before attaching a 75 ohm coaxial lead
(the kind with a round wire going to an
outside antenna), disconnect the
supplied FM wire antenna.
1. Connect the supplied FM Antenna to the FM
Antenna socket on the rear of the unit.
To Next Page
