Neoway N21 Series User Manual

N21
Hardware User Guide
Copyright © Neoway Technology Co., Ltd. All rights reserved.
22
3.4.2 Antenna Assembling
Antenna used for the module should meet the mobile device requirements: The VSWR ranges from
1.1 to 1.5 and the input impedance is 50Ω. Antenna should be well matched to achieve best
performance in different application scenarios.
Antenna interfaces can be connected to rubber ducky antenna, magnet antenna, or embedded Planar
Inverted F antenna (PIFA). Keep external RF wires far away from all disturbing sources, especially
digital signals and DC/DC power if using RF wires.
The following methods are commonly used to assemble antenna:

GSC RF connector
MM9329-2700RA1 from Murata is recommended. Figure 3-20 shows its encapsulation
specifications.

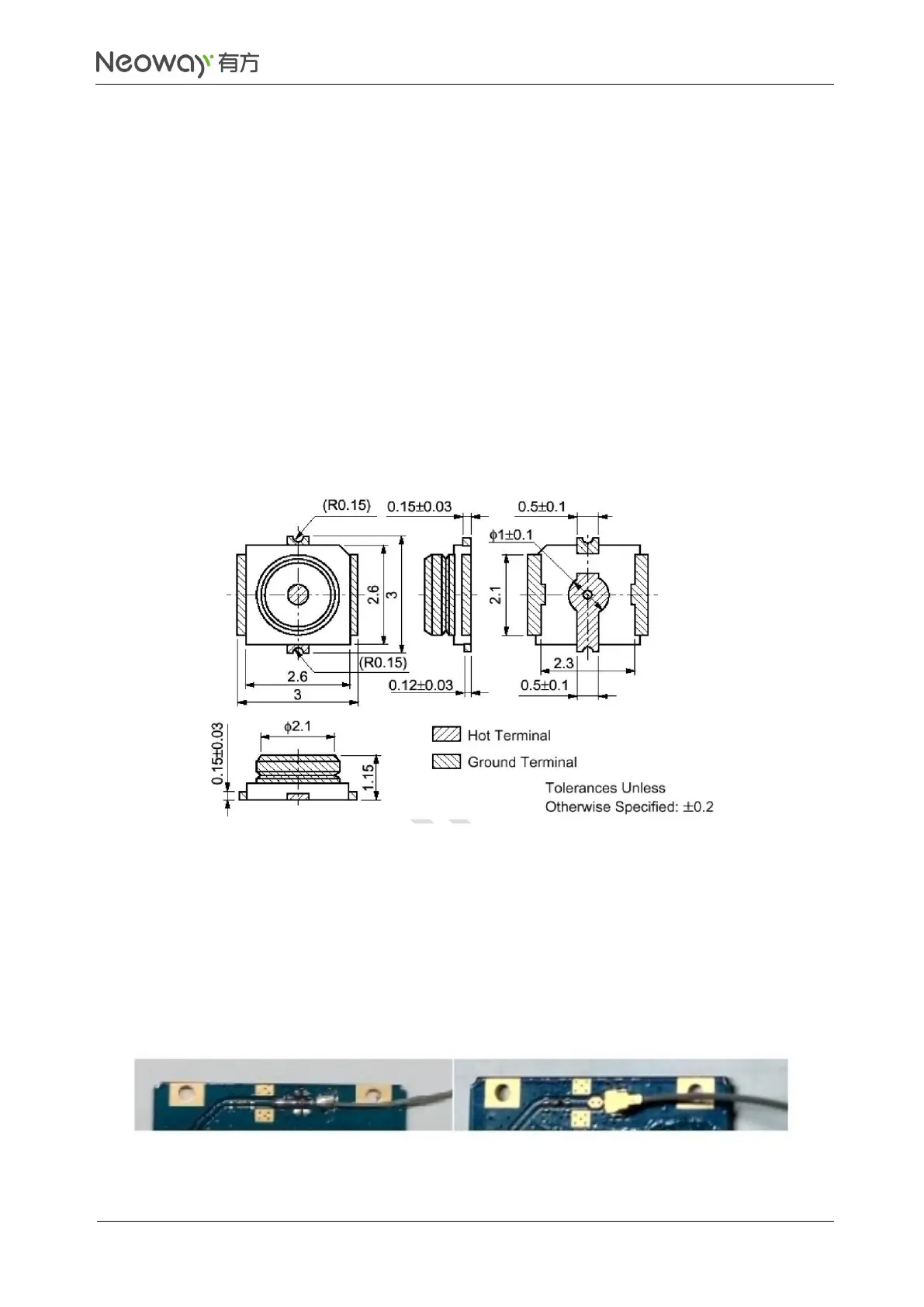

Figure 3-20 Specifications of MM9329-2700RA1

Soldering
RF wire can also be soldered to connect to the module. Ensure sufficient soldering in case of
damage that lowers RF performance.
Figure 3-21shows the two types of connections.
Figure 3-21 RF connections
