Configurations
It is recommended to install the gateway at the top of the tower, although it can also be installed at the bottom as
shown in the following figure. The selected options for powering and cabling from the required materials list will
depend on the selected configuration. When the gateway is installed at the bottom of the tower, the RF coax is
longer and two extra jumpers are required per RF antenna. When the gateway is installed at the top of the tower, a
PoE injector is required between the UPS and gateway.

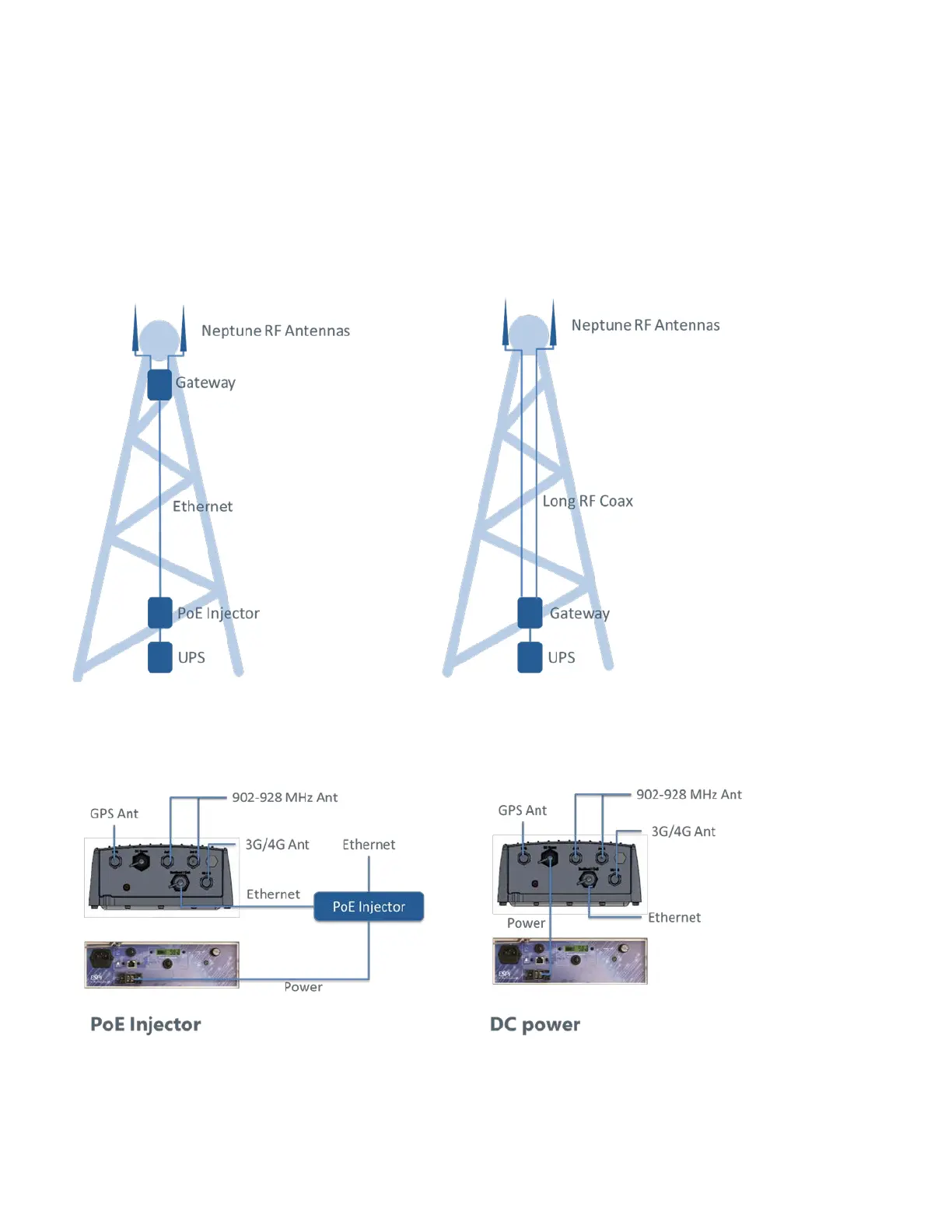

Figure 2 Gateway Placement
Please note, power should not be applied to the gateway via PoE and DC simultaneously.
The figure below illustrates the connections when using DC power or the PoE injector.
Figure 3 Powering Options
