Netafim SCREENGUARD User Manual

40 SCREENGUARD
™
INSTALLATION AND USER MANUAL
REPLACEMENT PARTS
Fine screen Assembly
Part
Filtration
grade (micron)
Cat. No.
Qty.
SGH 4" SGH 6" SGH 4"S SGH 6"S SGH 8" SGH 10"
2 100 μm 71965-000300 71965-000303 1
130 μm 71965-000301 71965-000304 1
200 μm 71965-000302 71965-000305 1
Part Description Cat. No. Qty.
2.1 Fine Screen 100/130/200μm 1
2.2 Centring Ring with Bearing 71965-000267 1
2.3 O-ring (See Seal Kit, page 44) 1
2.4 Countersunk Flat Head Cross Recess Screw 4x16H A2x70 4

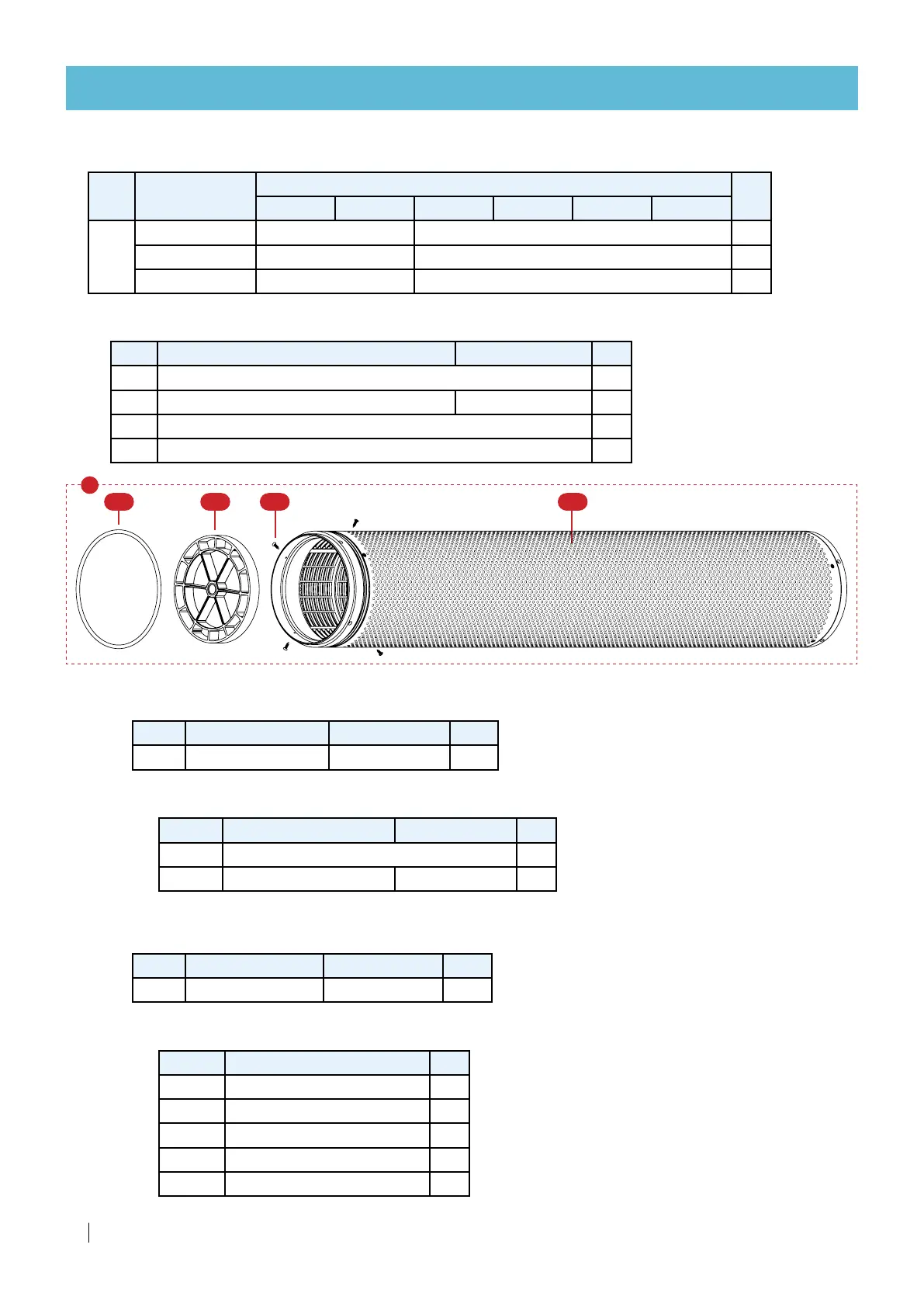

The Fine screen Assembly consists of the following parts
2.3 2.2 2.4 2.1
2
The Turbine Assembly consists of the following parts
Part Description Cat. No. Qty.
3.3.3.1 Turbine Set 1
3.3.3.2 Turbine Brass Bearing 71965-000266 1
Turbine Assembly
Part Description Cat. No. Qty.
3.3.3 Turbine Assembly 71965-000411 1 set
Part Description Qty.
3.3.4.1 Nozzle Clamp 2
3.3.4.2 Nozzle Round 1
3.3.4.3 M6x35 HEX Screw A2x70 2
3.3.4.4 M6 Washer A2x70 4
3.3.4.5 M6 Hex Nut A2x70 2
Nozzle Assembly
The Nozzle Assembly consists of the following parts
Part Description Cat. No. Qty.
3.3.4 Nozzle Assembly 71965-000412 1 set
