SCREENGUARD
™
INSTALLATION AND USER MANUAL 41
REPLACEMENT PARTS

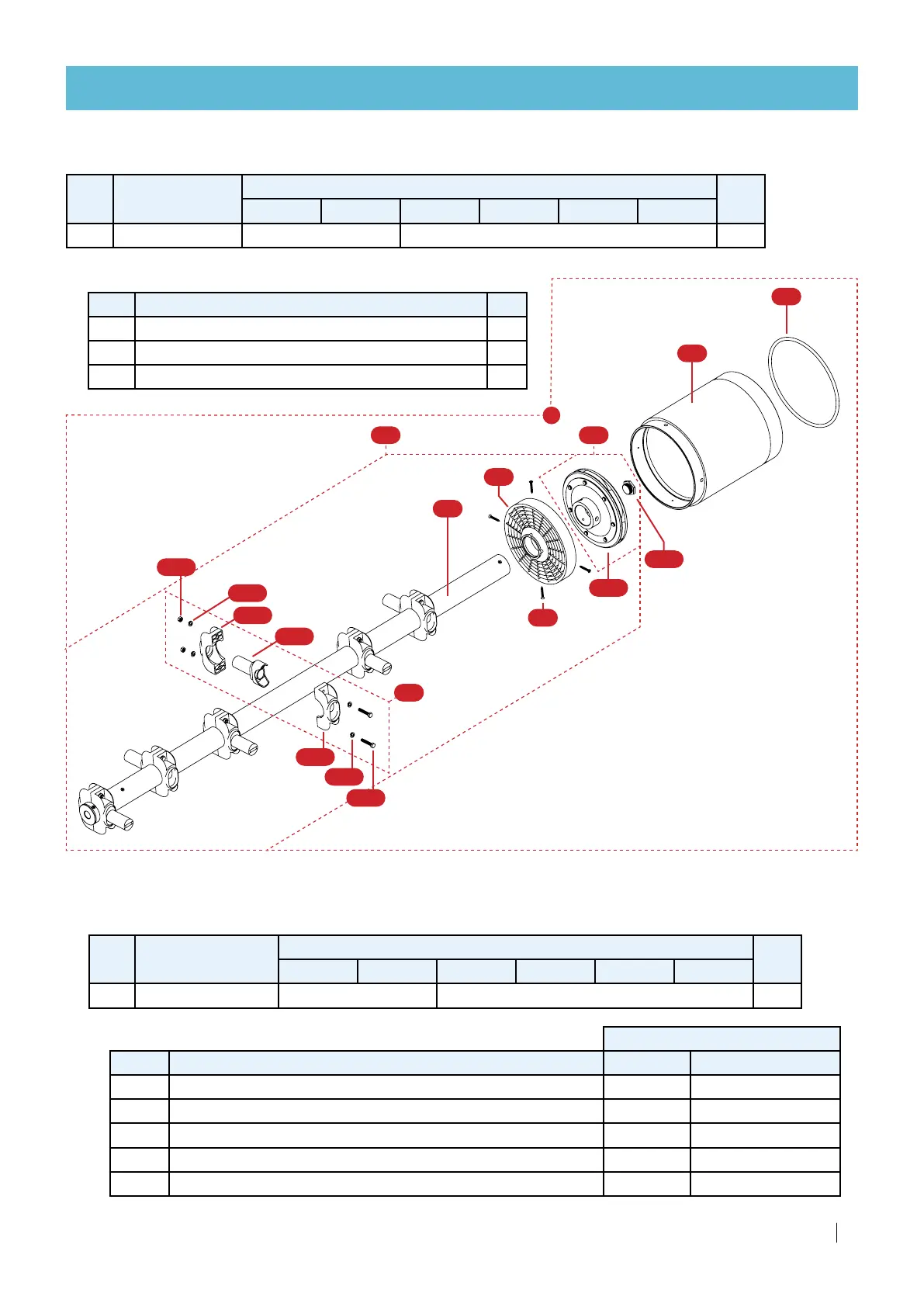

Flush Assembly
The Flush Assembly consists of the following parts
Part Description
Cat. No.
Qty.
SGH 4" SGH 6" SGH 4"S SGH 6"S SGH 8" SGH 10"
3 Flush Assembly 71965-000400 71965-000415 1 set
Part Description Qty.
3.1 Turbine Chamber Main Body 1
3.2 O-ring (See Seal Kit, page 44) 1
3.3 Suction Assembly (See below) 1
3.2
3.1
3.3.3
3.3.2
3.3.1
3.3.4
3.3
3.3.3.1
3.3.3.2
3.3.5
3.3.4.2
3.3.4.5
3.3.4.4
3.3.4.1
3
3.3.4.1
3.3.4.4
3.3.4.3
Suction Assembly
The Suction Assembly consists of the following parts
Part Description
Cat. No.
Qty.
SGH 4" SGH 6" SGH 4"S SGH 6"S SGH 8" SGH 10"
3.3 Suction Assembly 71965-000410 71965-000416 1 set
Qty.
Part Description SGH 4"/6" SGH 4"S/6"S/8"/10"
3.3.1 Suction Assembly Center Pipe and Shaft 1 1
3.3.2 Turbine Chamber Partition 1 1
3.3.3 Turbine Assembly (See page 40) 1 1
3.3.4 Nozzle Assembly (See page 40) 4 6
3.3.5 Countersunk Flat Head Cross Recess Screw 4x32H A2x70 3 3
