Netafim SCREENGUARD User Manual

42 SCREENGUARD
™
INSTALLATION AND USER MANUAL

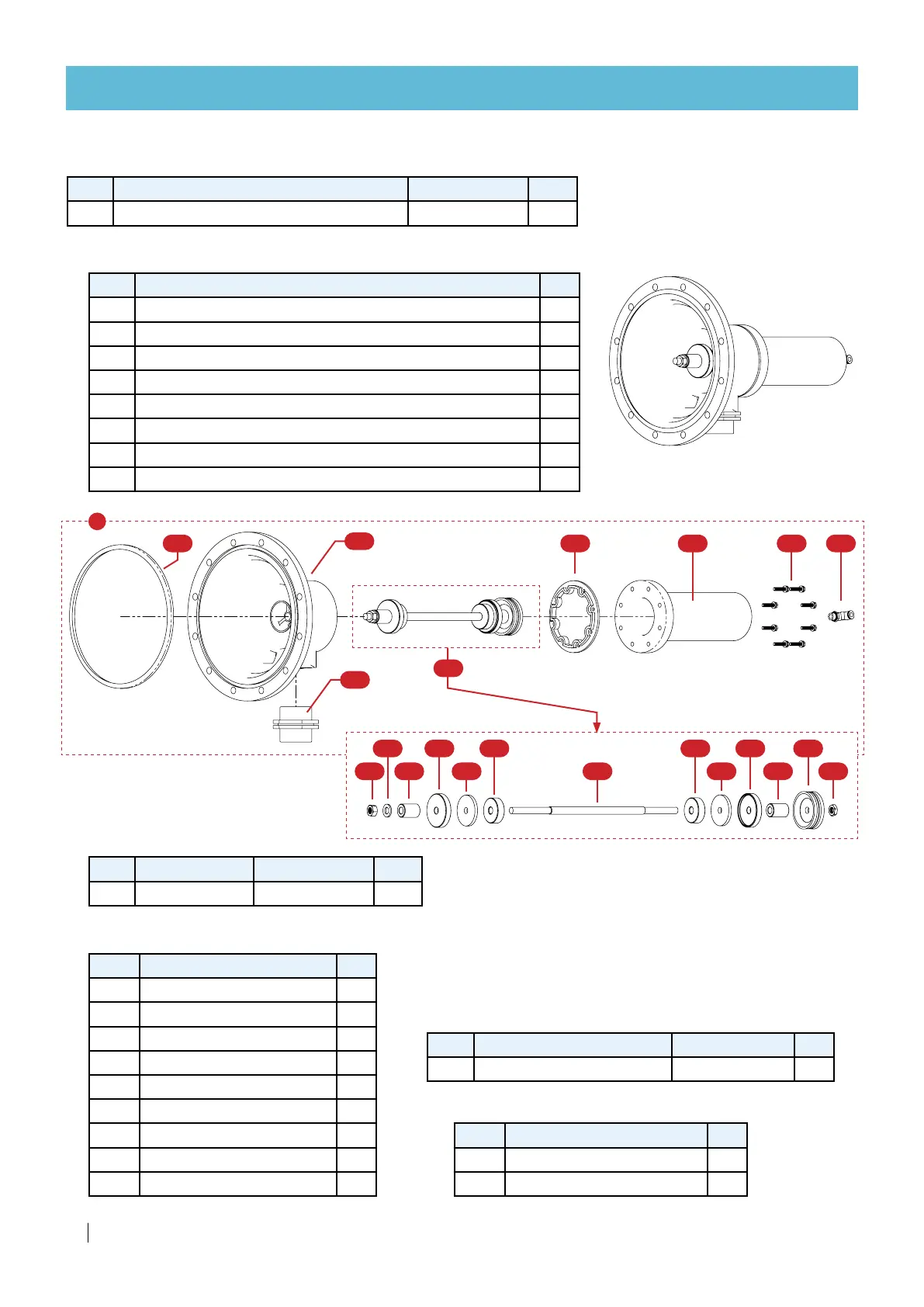

REPLACEMENT PARTS
Part Description Cat. No. Qty.
5 Piston Cover Assembly Stroke 200mm 71965-000402 1 set
Piston Cover Assembly
Part Description Qty.
5.1 Piston Cover H 1
5.2 Piston Cylinder S200 1
5.3 Cylinder Gasket (See Seal Kit, page 44) 1
5.4 Rod Assembly (See below) 1
5.5 Cover Gasket (See Seal Kit, page 44) 1
5.6 M6 Bolts and Washers Kit (See below) 1
5.7 Plug in Metal Connector 90 deg 8mm X 1/8" 1
5.8 Plastic Nipple 2" BSP 1
The Piston Cover Assembly consists of the following parts
Part Description Cat. No. Qty.
5.4 Rod Assembly 71965-000413 1 set
Rod Assembly
Part Description Qty.
5.4.1 Rod 1
5.4.2 Plastic Disc 2
5.4.3 Seal Disc 2
5.4.4 Brass Disk Seat 2
5.4.5 Plastic Spacer 2
5.4.6 Piston Seal 1
5.4.7 M12 Half Hex Nut A2x35 1
5.4.8 M12 Plain Washer A2x70 1
5.4.9 M12 Hex Nut A2x70 1
The Rod Assembly consists of the following parts
5.8
5.1
5.5 5.3 5.2 5.6 5.7
5.4
5.4.6
5.4.7
5.4.4
5.4.5
5.4.2
5.4.3
5.4.2
5.4.1
5.4.4
5.4.3
5.4.8
5.4.55.4.9
5
Part Description Cat. No. Qty.
5.6 M6 Bolts and Washer Kit 71965-000260 1
Bolts and Washer Kit
The Bolts and Washer Kit consists of the following parts
Part Description Qty.
5.6.1 M6 Plain Washer A2x70 8
5.6.2 M6x25 Hex Screw A2x70 8
