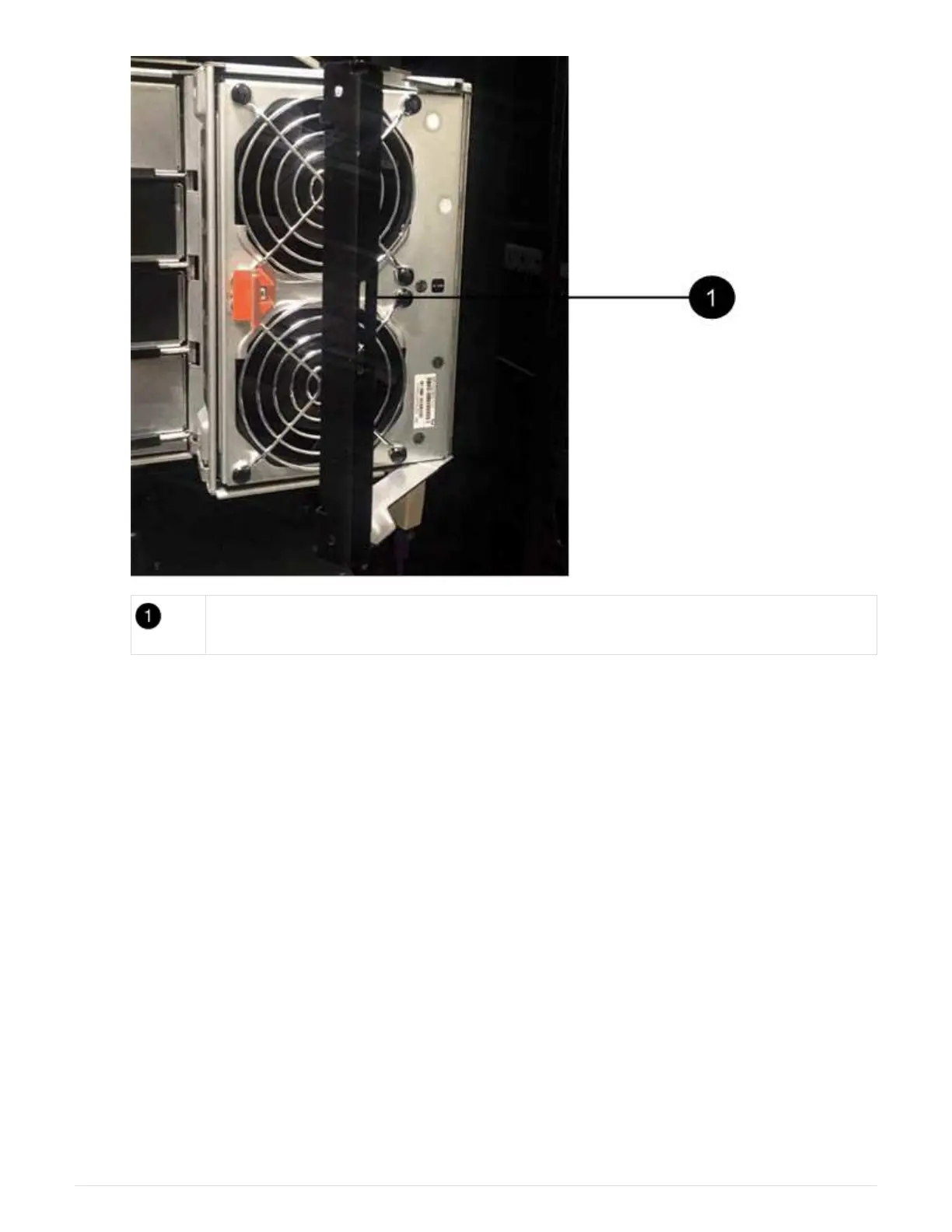

Fan module handle
b. Using the handle, pull the fan module out of the drive shelf, and set it aside.
3. Manually determine which of the five cable chains to disconnect.
The figure shows the right side of the drive shelf with the fan module removed. With the fan module
removed, you can see the five cable chains and the vertical and horizontal connectors for each drawer.
The callouts for drive drawer 1 are provided.
15

NetApp DS460C Specifications

General

Model	DS460C
Category	Storage
Form Factor	4U
Drive Support	60 drives
Drive Types	SAS
Connectivity	12Gb/s SAS
Host Connectivity	SAS
RAID Support	RAID 6 (with NetApp storage controllers)
