NetApp DS460C User Manual

Save all packaging materials for use when returning the failed IOM12 module.
3. Physically identify the failed IOM12 module from the system console warning message and the illuminated
attention (amber) LED on the failed IOM12 module.
4. Perform one of the following actions based on the type of configuration you have:
If you have a… Then…
Multipath HA, multipath, quad-path HA, or quad-
path configuration
Go to the next step.
FAS2600 series and FAS2700 single-path HA
configuration
a. Determine the target node (the node the failed
IOM12 module belongs to).
IOM A belongs to Controller 1. IOM B belongs
to Controller 2.
b.
Take over the target node:
storage
failover takeover -bynode partner
HA node
FAS2600 series single-path configuration a. Shut down the system from the system console:
halt
b. Verify that your system halted by checking the
storage system console.
5. Disconnect the cabling from the IOM12 module that you are removing.
Make note of the IOM12 module ports each cable is connected to.

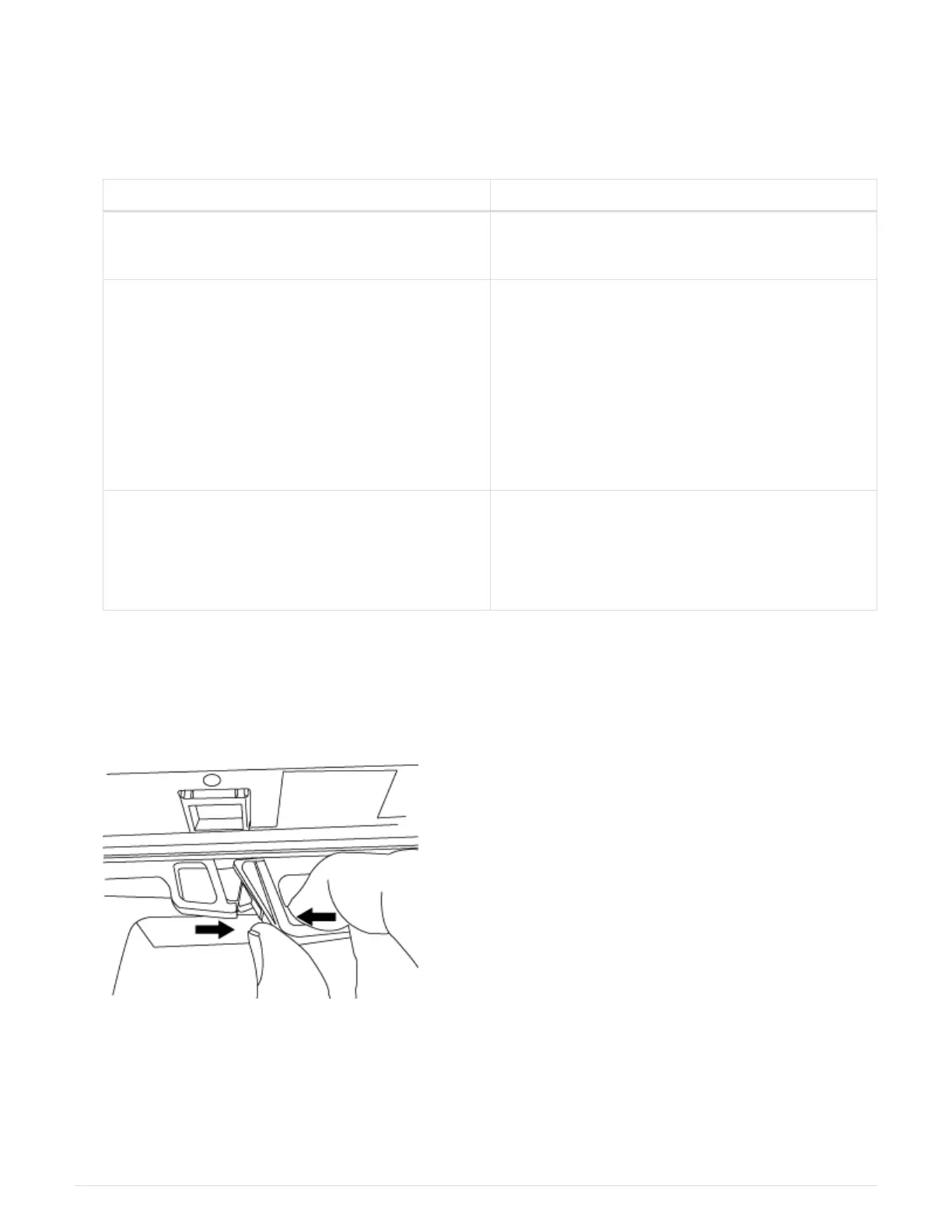

6. Press the orange latch on the IOM12 module cam handle until it releases, and then open the cam handle
fully to release the IOM12 module from the mid plane.
43

NetApp DS460C Specifications

General

Model	DS460C
Category	Storage
Form Factor	4U
Drive Support	60 drives
Drive Types	SAS
Connectivity	12Gb/s SAS
Host Connectivity	SAS
RAID Support	RAID 6 (with NetApp storage controllers)
