e. Install the mezzanine in the replacement controller and secure it with the thumbscrews.
f. Install the third riser in the replacement controller module.
Step 6: Move caching modules
You must move the caching modules from the impaired controller modules to the
replacement controller module when replacing a controller module.
You can use the following animation, illustration, or the written steps to move caching modules to the new
controller module.

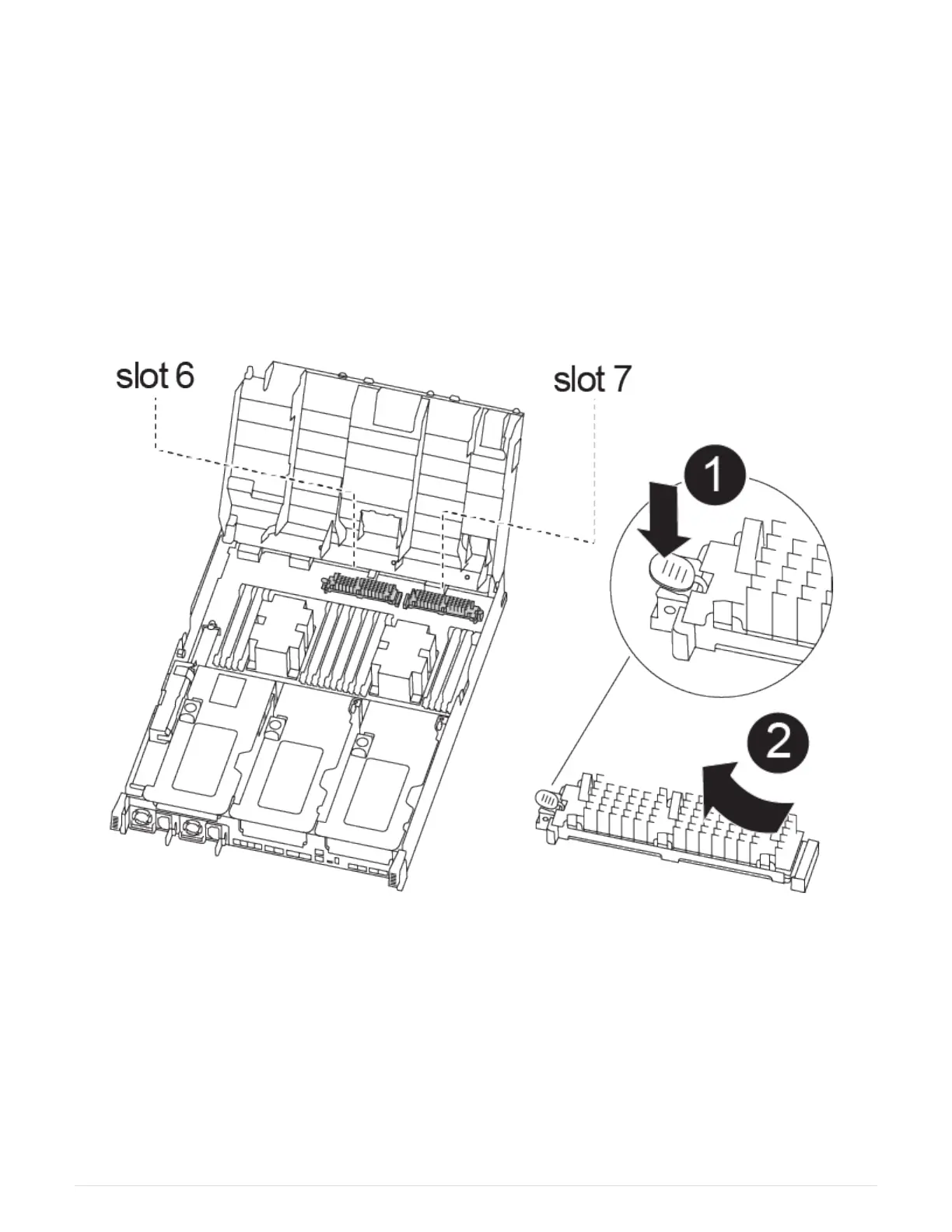

Moving the caching modules
1. If you are not already grounded, properly ground yourself.
2. Move the caching modules from the impaired controller module to the replacement controller module:
a. Press the blue release tab at the end of the caching module, rotate the module up, and then remove
the module from the socket.
b. Move the caching module to the same socket on the replacement controller module.
c. Align the edges of the caching module with the socket and gently insert the module as far into the
socket as it will go.
d. Rotate the caching module downward toward the motherboard.
62
