The maximum raw storage available in the StorageGRID Webscale appliance is limited to drives
within the single storage controller shelf. You cannot expand the available storage by adding a shelf
with additional drives.
Model SG6060 diagrams

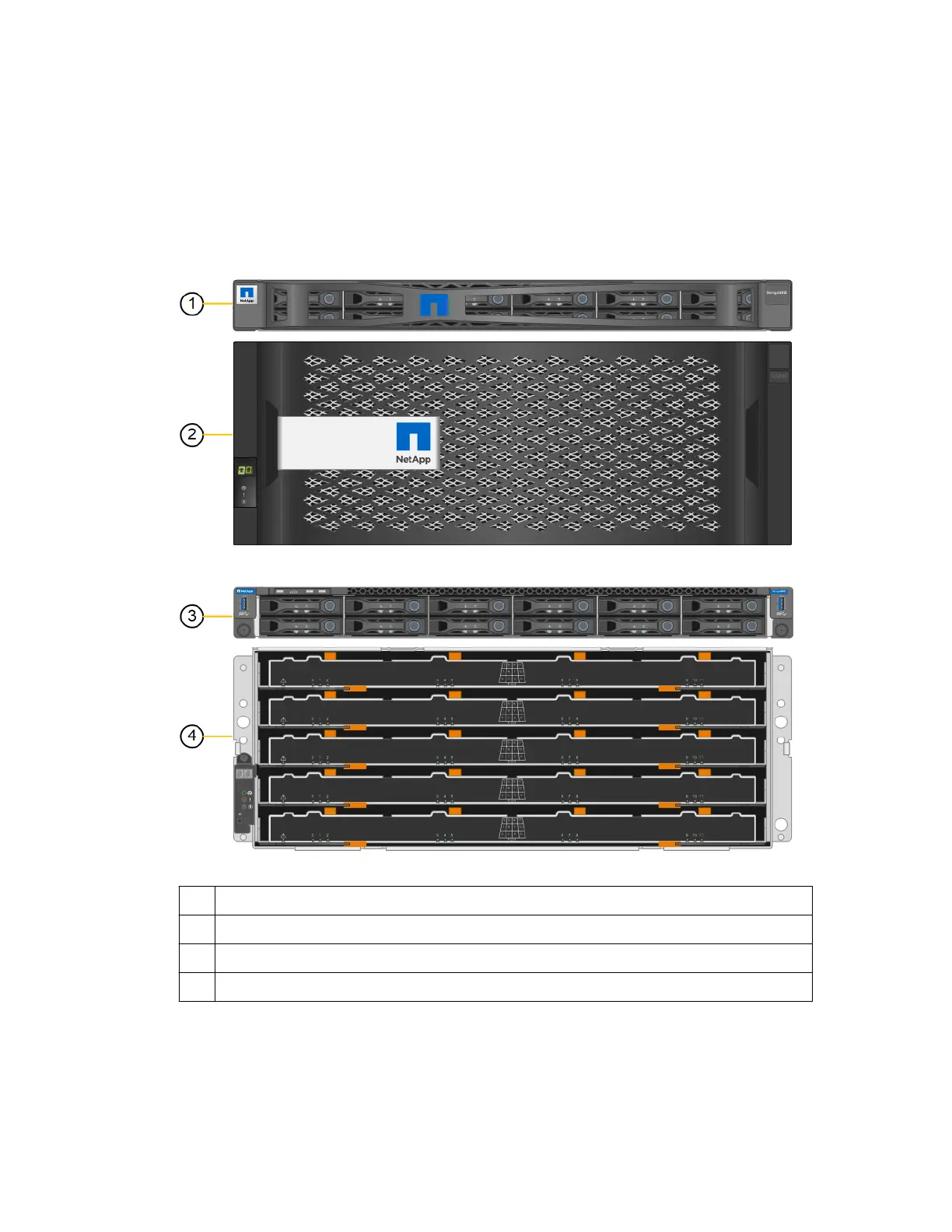

This figure shows the front of the SG6060 model, which includes a 1U compute controller, and a 4U
enclosure containing the storage controllers and 60 drives in five drive drawers.
1
SG6000-CN compute controller with front bezel
2 E2860 controller shelf with front bezel
3 SG6000-CN compute controller with front bezel removed
4 E2860 controller shelf with front bezel removed
This figure shows the back of the SG6060 model, including the compute and storage controllers,
fans, and power supplies.
6
