About this task

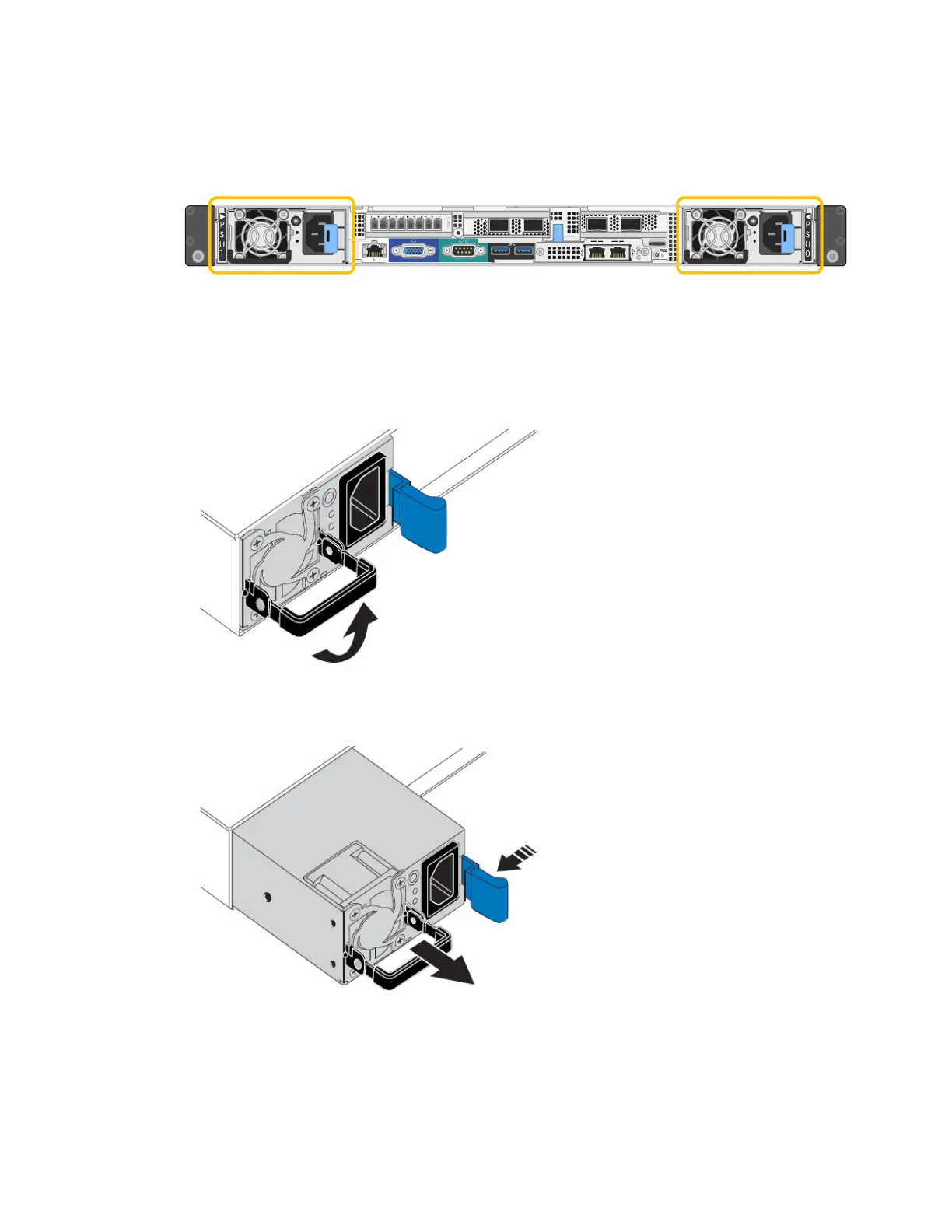

The figure shows the two power supply units for the SG6000-CN controller, which are accessible
from the back of the controller.
Steps
1.
Unplug the power cord from the power supply.
2.
Lift the cam handle.
3. Press the blue latch and pull the power supply out.
4. Slide the replacement power supply into the chassis.
Ensure that the blue latch is on the right side when you slide the unit in.
Maintaining the SG6000 appliance |
75
