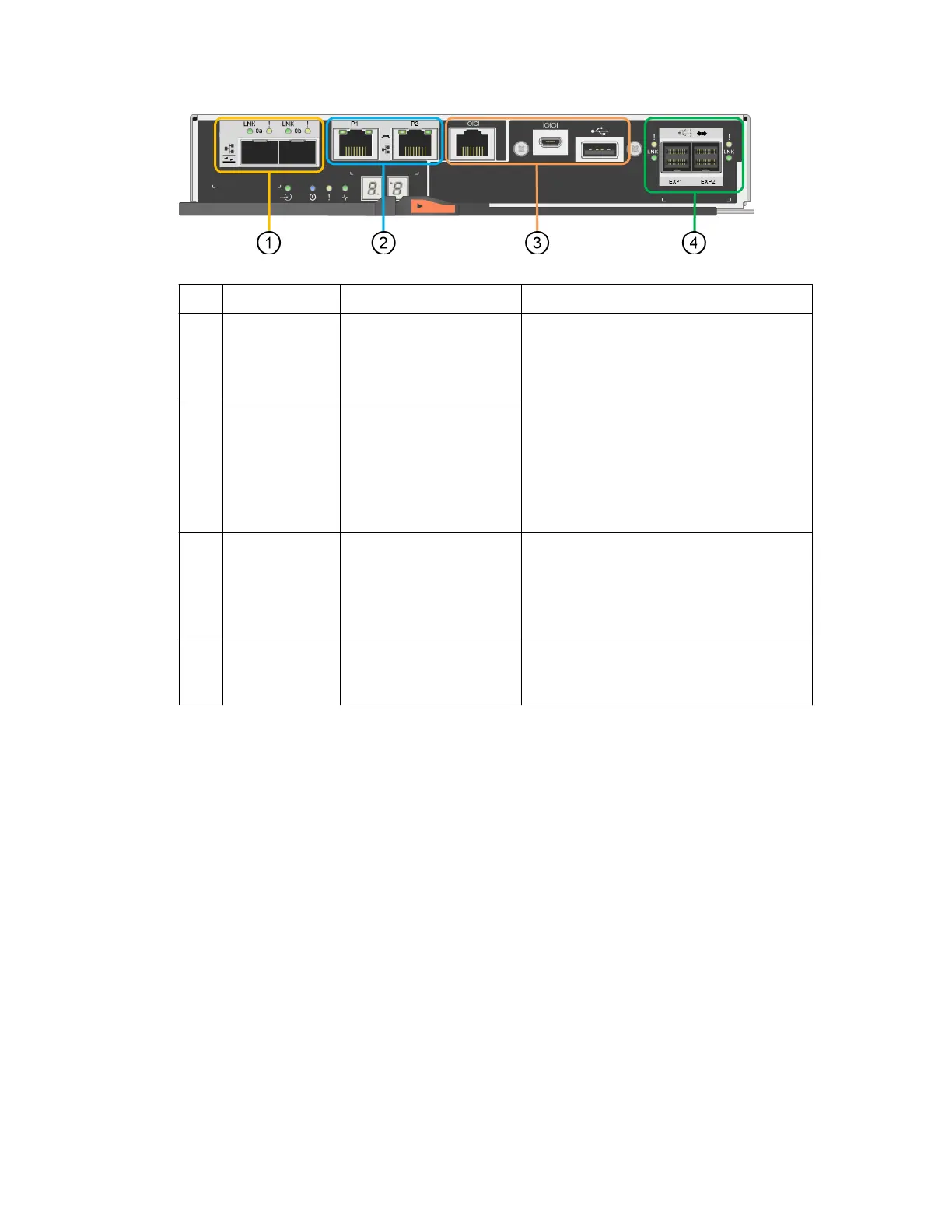

Port Type Use
1 Interconnect
ports 1 and 2
16-Gb/s FC optical SFP+ Connect each of the E2800 controllers to
the SG6000-CN controller.
There are four connections to the SG6000-
CN controller (two from each E2800).
2 Management
ports 1 and 2
1-Gb (RJ-45) Ethernet
• Port 1 connects to the network where
you access SANtricity System Manager
on a browser.
• Port 2 is reserved for technical support
use.
3 Diagnostic and
support ports
• RJ-45 serial port
• Micro USB serial port
• USB port
Reserved for technical support use.
4 Drive expansion
ports
12Gb/s SAS Not used. StorageGRID Webscale
appliances do not support expansion drive
shelves.
StorageGRID Webscale appliance overview | 9
