NetComm Wireless 4G M2M Router
Wake settings
Use the Wake mode drop down list to select a condition under which the router should return from the sleep state.
Wake triggered by ignition pin
This mode sets the router to wake up when the signal on the ignition pin reaches the specified value.

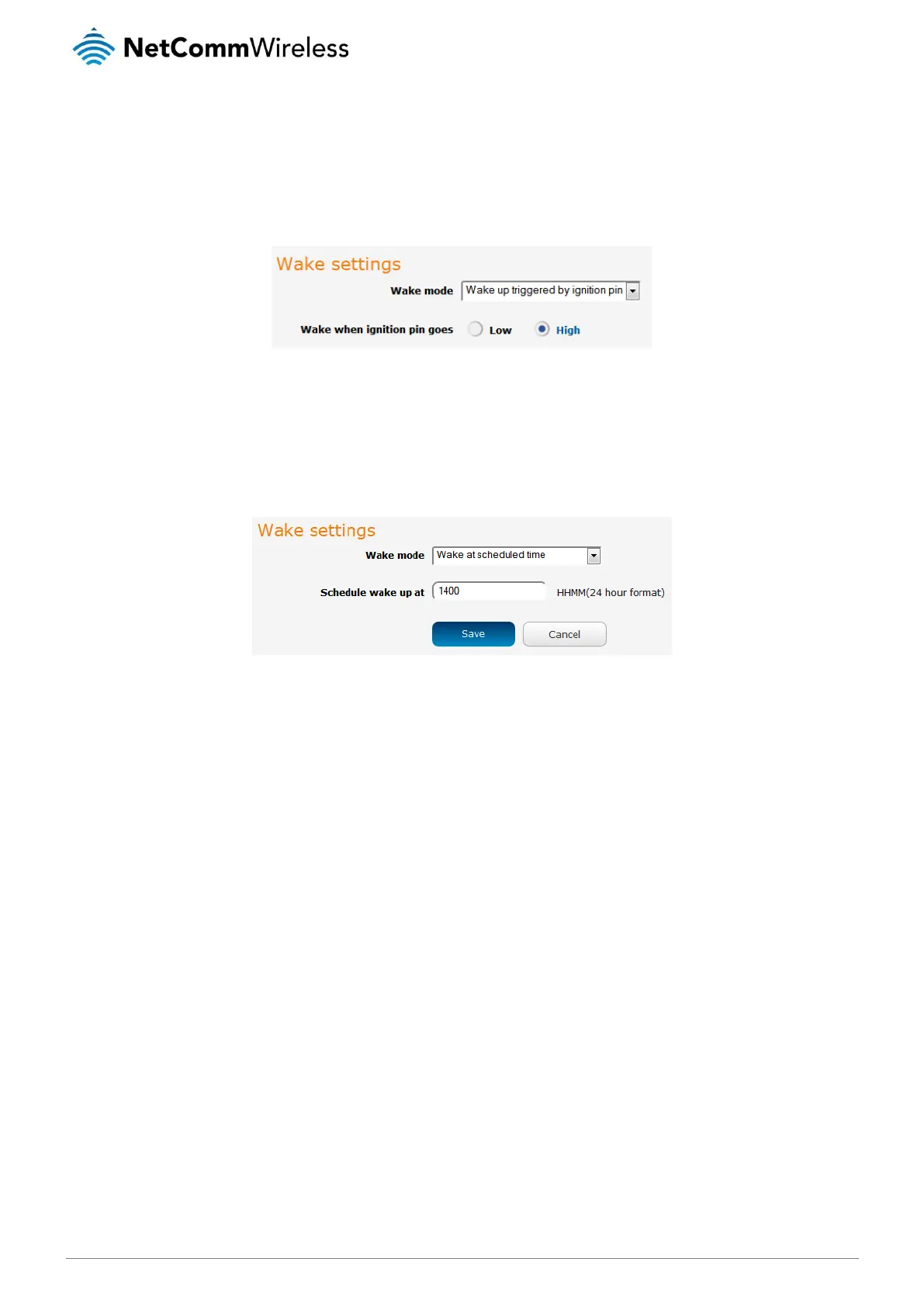

Figure 133 - Wake up triggered by ignition pin
Use the Wake up when ignition pin goes setting to select Low or High. By default, this is set to High.
Wake up at scheduled time
When this mode is selected, the router wakes up at the time specified in the Schedule wake up at field, regardless of the state of
the ignition pin. Enter the time in 24 hour format without the semi-colon.
Figure 134 - Wake up at scheduled time
Enter the time in seconds to wait before returning from sleep state in the Always wake up after field. A setting of 0 means that the
router will automatically wake from sleep state immediately.
