NetComm Wireless 4G M2M Router
DHCP
The DHCP page is used to adjust the settings used by the router’s built in DHCP Server which assigns IP addresses to locally
connected devices. To access the LAN configuration page, click on the Networking menu at the top of the screen, click on the LAN
menu on the left then select the DHCP menu item.
DHCP relay configuration
In advanced networks configurations where the NTC-140-02router should not be responsible for DHCP assignment, but instead an
existing DHCP server is located on the Wireless WAN or LAN connections, the clients behind the NTC-140-02router are able to
communicate with the DHCP server when DHCP relay is enabled. This enables the NTC-140-02router to accept client broadcast
messages and to forward them onto another subnet.
To configure the router to act as a DHCP relay agent click the DHCP relay toggle key to turn it ON and enter the DHCP server
address into the DHCP server address field. DHCP relay is disabled by default.

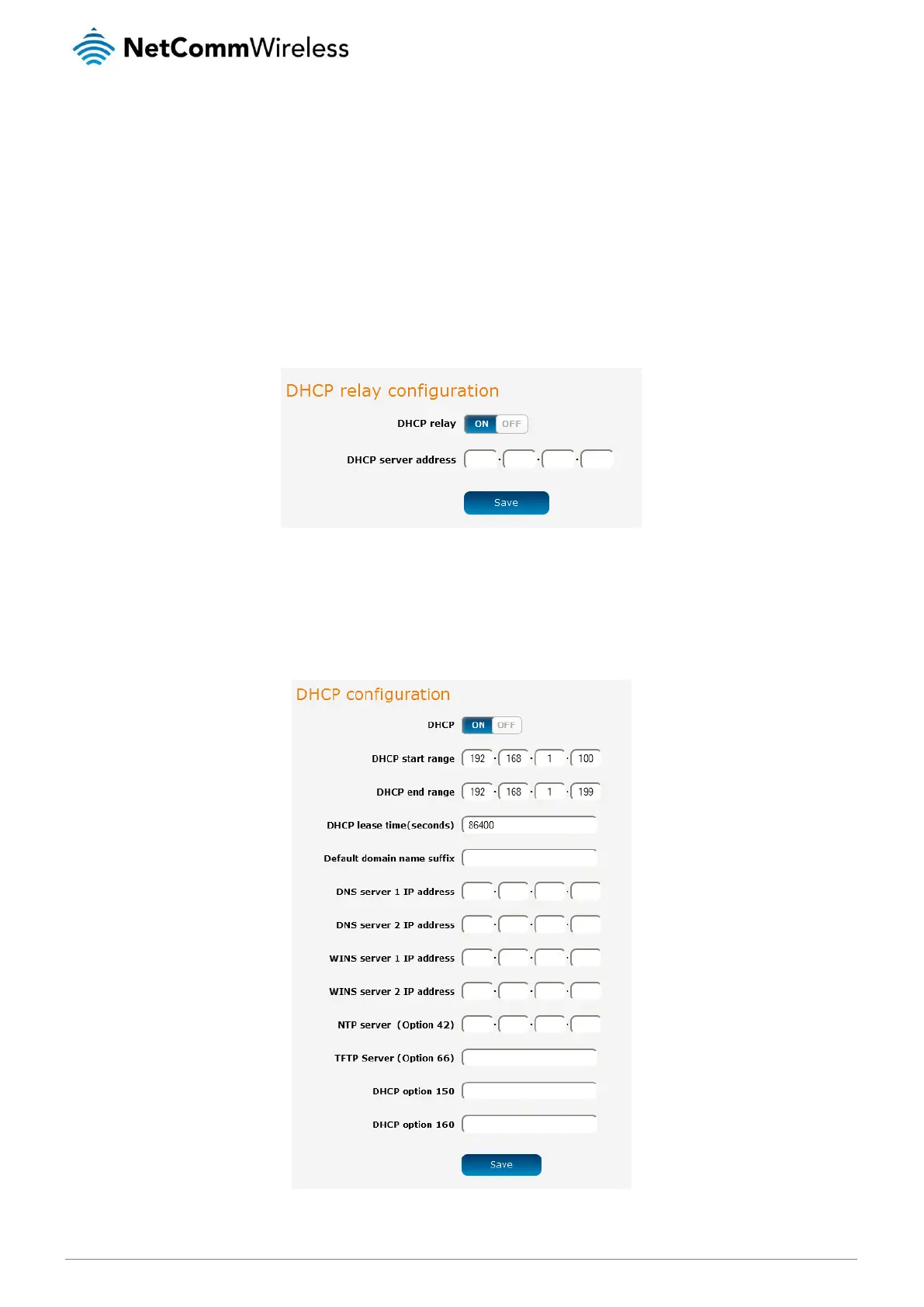

Figure 37 – DHCP relay configuration
DHCP configuration
You can manually set the start and end address range to be used to automatically assign addresses within, the lease time of the
assigned address, the default domain name suffix, primary and secondary DNS server, the primary and secondary WINS server, as
well as the advanced DHCP settings such as NTP, TFTP and Option 150/Option 160 (VoIP options).
Figure 38 - DHCP configuration
