NETGEAR AC1900 Model R7000 User Manual

Specify Network Settings
101
Nighthawk AC1900 Smart WiFi Router Model R7000

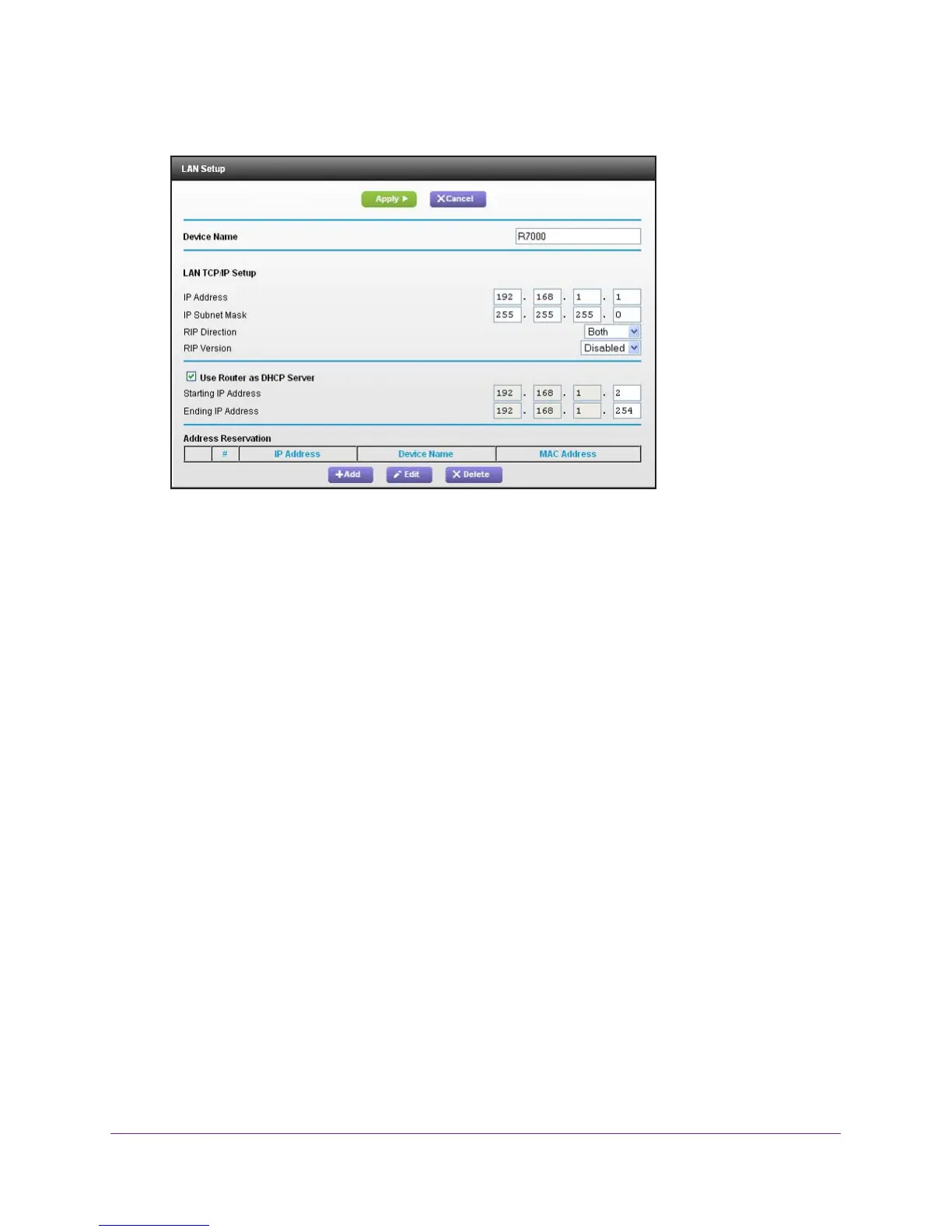

4. Select ADVANCED > Setup > LAN Setup.
5. Make sure that the Use Router as DHCP Server check box is selected.
6. Specify the range of IP addresses that the router assigns:
a. In the Starting IP
Address field, type the lowest number in the range.
This IP address must be in the same subnet as the router.
b. In the Ending IP
Address field, type the number at the end of the range of IP
addresses.
This IP address must be in the same subnet as the router.
7. Click the Apply button.
Your settings are saved.
The router delivers the following parameters to any LAN device that requests DHCP:
• An IP address from the range that you have defined
• Subnet mask
• Gateway IP address (the router’
s LAN IP address)
• DNS server IP address (the router’
s LAN IP address)
Disable the DHCP Server Feature in the Router
By default, the router acts as a DHCP server. The router assigns IP, DNS server, and default
gateway addresses to all computers connected to the LAN. The assigned default gateway
address is the LAN address of the router.
You can use another device on your network as the DHCP server, or specify the network
settings of all your computers.

NETGEAR AC1900 Model R7000 Specifications

General

WiFi Performance	AC1900 (600 + 1300 Mbps)
WiFi Range	Very large homes
Processor	1GHz Dual Core
Antenna	3 external antennas
Beamforming+	Yes
Dynamic QoS	Yes
VPN Support	Yes
Guest Network	Yes
Parental Controls	Yes
Dimensions	11.22 x 7.26 x 1.97 in (285 x 184.5 x 50 mm)
RAM	256 MB
Flash Memory	128 MB
WiFi Technology	802.11ac
Ethernet Ports	5 (1 WAN & 4 LAN) Gigabit Ethernet ports
USB Ports	1 x USB 3.0, 1 x USB 2.0
Weight	1.65 lb (0.75 kg)
