NETGEAR AC1900 Model R7000 User Manual

Optimize Performance
45
Nighthawk AC1900 Smart WiFi Router Model R7000

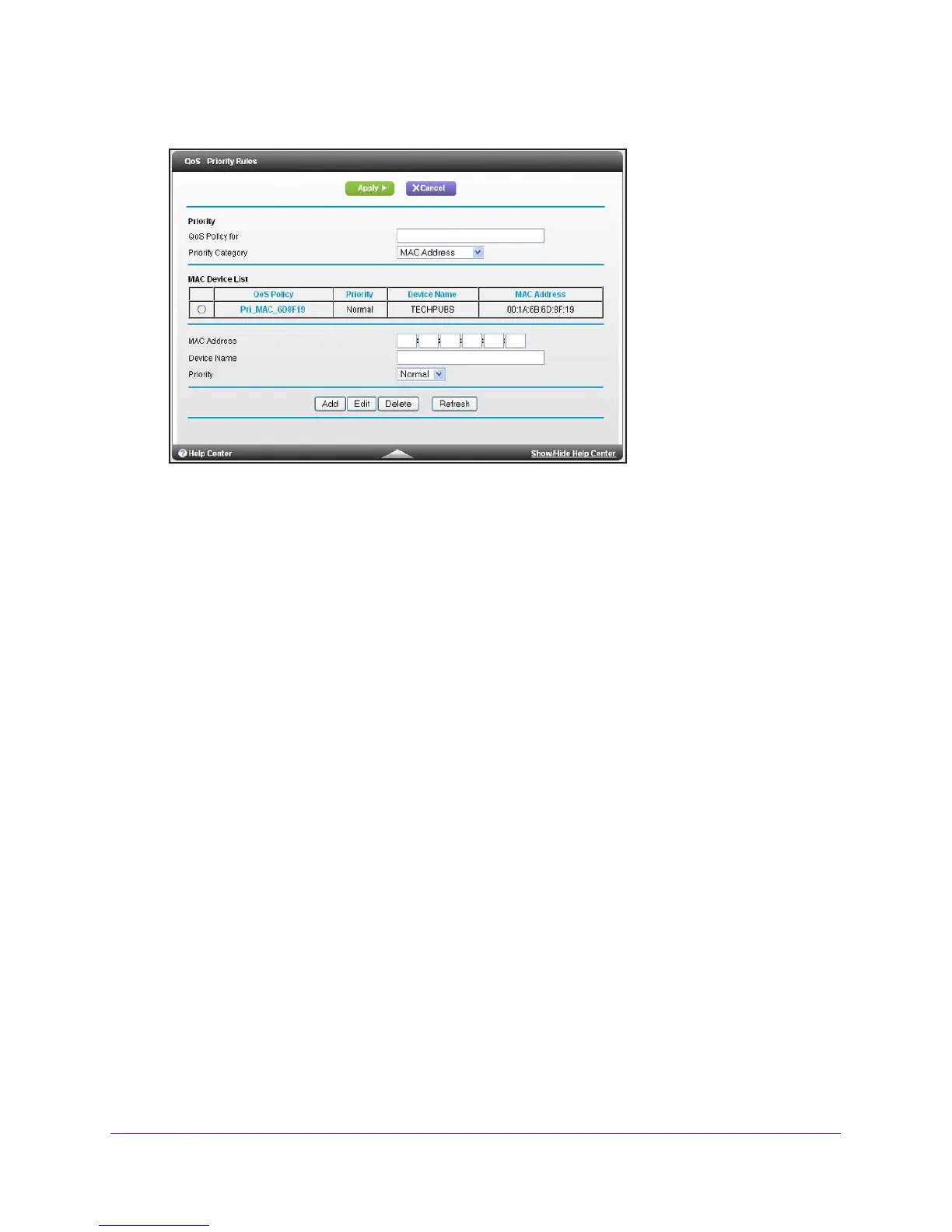

7. From the Priority Category list, select MAC Address.
8. If the device is in the MAC Device List, select its radio button.
The information from the MAC Device List populates the policy name, MAC Address, and
Device Name fields. If the device is not in the MAC Device List, click the Refresh button.
If it still does not display
, complete these fields.
9. From the Priority list, select Highest.
This is the priority for Internet access for this device’s traffic relative to other applications
and traf
fic. The options are Low, Normal, High, and Highest.
10. Click the Apply button.
This rule is saved.
Edit an Upstream QoS Policy
 To edit a QoS policy:
1. Launch an Internet browser from a computer or wireless device that is connected to the
network.
2. T
ype http://www.routerlogin.net or http://www.routerlogin.com.
A login screen displays.
3. Enter the router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Select ADV
ANCED > Setup > QoS Setup > Upstream QoS.
5. Click the Setup QoS Rule button.
6. Select the radio button for the QoS policy
.

NETGEAR AC1900 Model R7000 Specifications

General

WiFi Performance	AC1900 (600 + 1300 Mbps)
WiFi Range	Very large homes
Processor	1GHz Dual Core
Antenna	3 external antennas
Beamforming+	Yes
Dynamic QoS	Yes
VPN Support	Yes
Guest Network	Yes
Parental Controls	Yes
Dimensions	11.22 x 7.26 x 1.97 in (285 x 184.5 x 50 mm)
RAM	256 MB
Flash Memory	128 MB
WiFi Technology	802.11ac
Ethernet Ports	5 (1 WAN & 4 LAN) Gigabit Ethernet ports
USB Ports	1 x USB 3.0, 1 x USB 2.0
Weight	1.65 lb (0.75 kg)
