NETGEAR AC1900 Model R7000 User Manual

Specify Network Settings
110
Nighthawk AC1900 Smart WiFi Router Model R7000

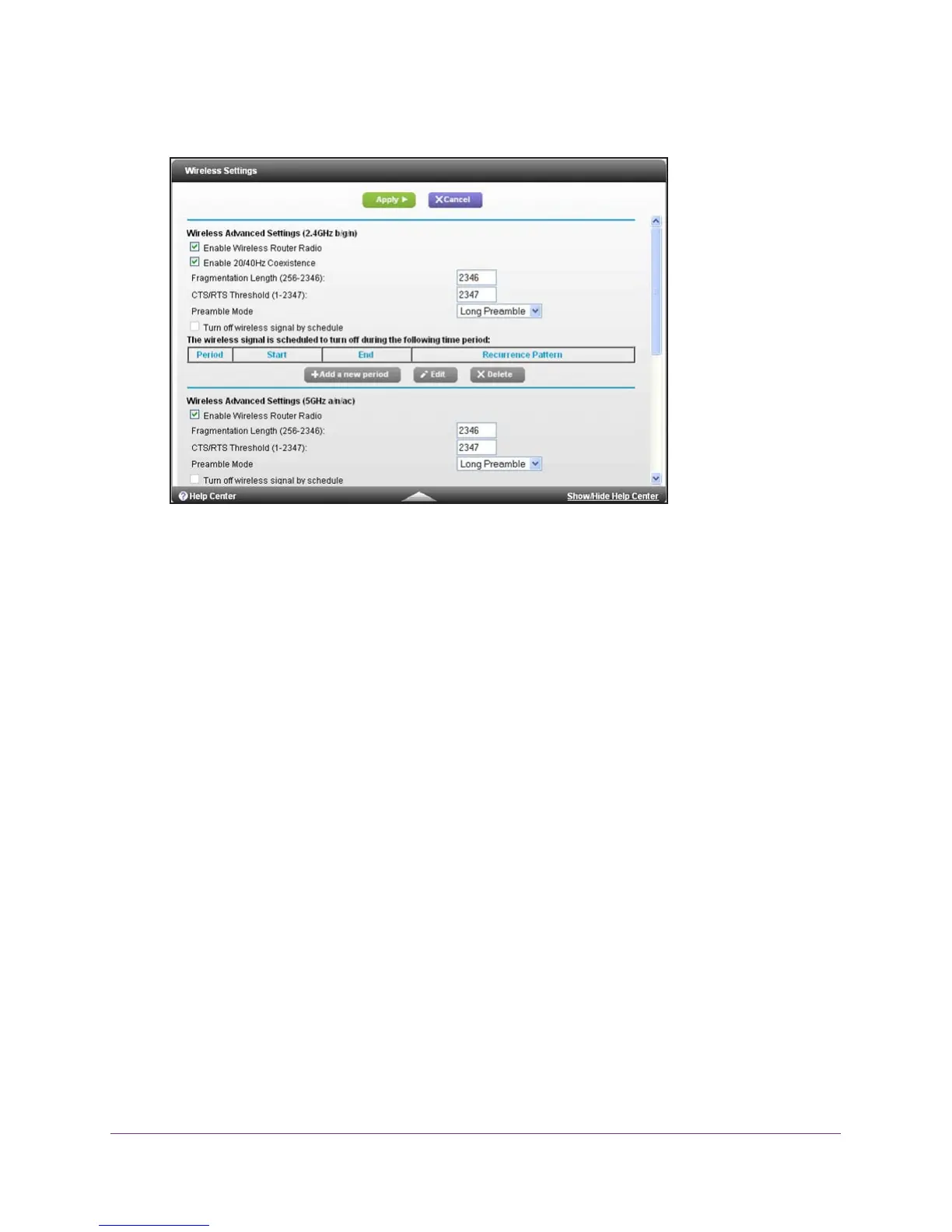

4. Select ADVANCED > Advanced Setup > Wireless Settings.
5. Select or clear the Enable Wireless Radio check boxes in the 2.4 GHz and 5 GHz
sections of the screen.
Clearing this check box turns off the WiFi feature of the router.
6. Click the Apply button.
If you turned off both wireless radios, the WiFi On/Off LED and the WPS LED turn off. If
you turned on the wireless radios, the WiFi On/Of
f LED and the WPS LED light.
Set Up a Wireless Schedule
You can use this feature to turn off the wireless signal from your router at times when you do
not need a wireless connection. For example, you might turn it off for the weekend if you
leave town.
 To set up the wireless schedule:
1. Launch an Internet browser from a computer or wireless device that is connected to the
network.
2. T
ype http://www.routerlogin.net or http://www.routerlogin.com.
A login screen displays.
3. Enter the router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Select ADV
ANCED > Advanced Setup > Wireless Settings.

NETGEAR AC1900 Model R7000 Specifications

General

WiFi Performance	AC1900 (600 + 1300 Mbps)
WiFi Range	Very large homes
Processor	1GHz Dual Core
Antenna	3 external antennas
Beamforming+	Yes
Dynamic QoS	Yes
VPN Support	Yes
Guest Network	Yes
Parental Controls	Yes
Dimensions	11.22 x 7.26 x 1.97 in (285 x 184.5 x 50 mm)
RAM	256 MB
Flash Memory	128 MB
WiFi Technology	802.11ac
Ethernet Ports	5 (1 WAN & 4 LAN) Gigabit Ethernet ports
USB Ports	1 x USB 3.0, 1 x USB 2.0
Weight	1.65 lb (0.75 kg)
