Specify Network Settings
119
Nighthawk AC1900 Smart WiFi Router Model R7000
A login screen displays.
3. Enter the router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Select W
ireless and verify that the wireless settings match the base unit exactly.
The wireless security option must be set to None.

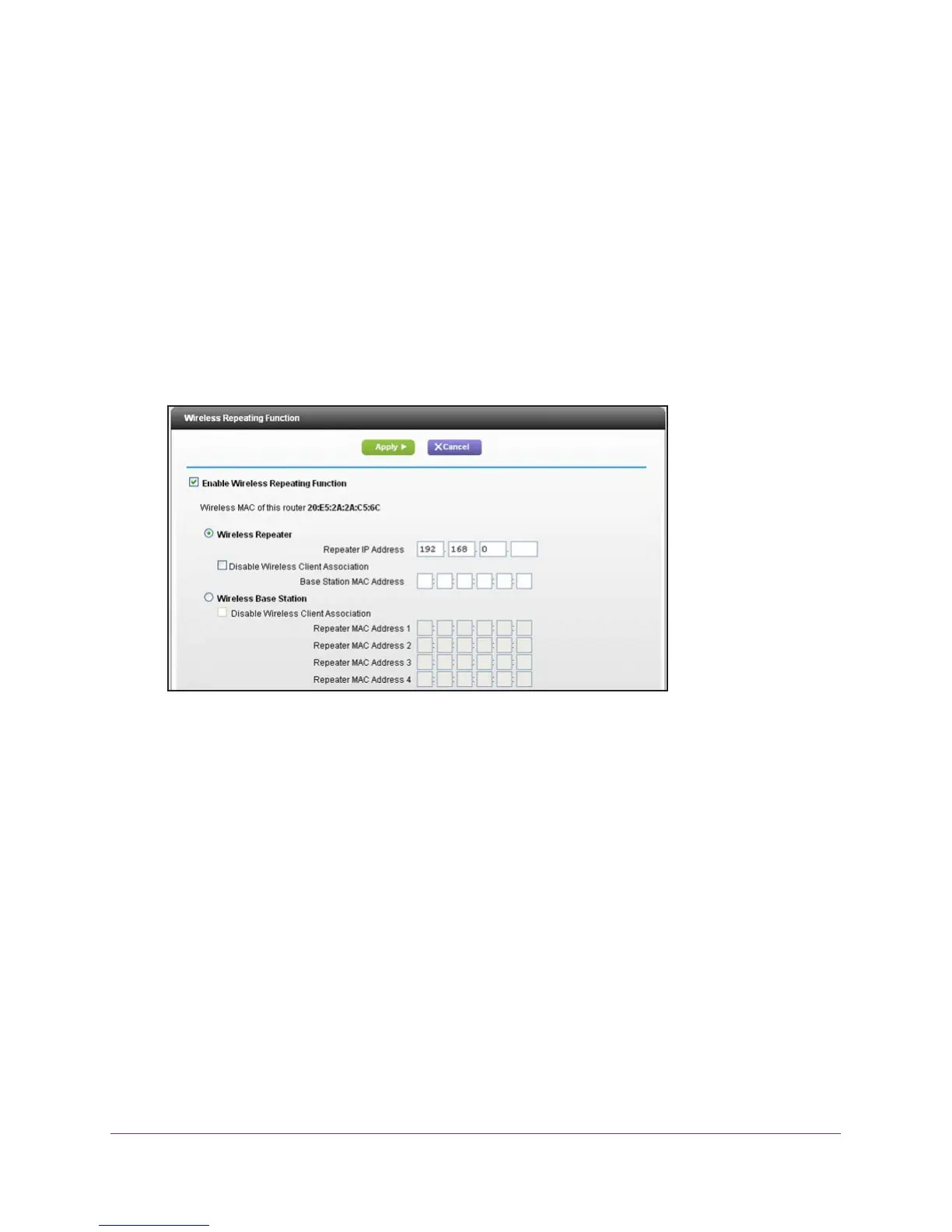

5. Select ADV
ANCED > Wireless Repeating Function.
6. Select the Enable W
ireless Repeating Function check box.
7. Select the W
ireless Repeater radio button.
8. In the Repeater IP Address field, type the IP address of the repeater router.
This IP address must be in the same subnet as the base station, but different from the
LAN IP address of the base station.
9. T
o prevent wireless clients from associating with the repeater and allowing LAN client
associations only, select the Disable Wireless Client Association check box.
You can leave the check box cleared if you prefer wireless clients to be able to associate
with the repeater
.
10. In the Base Station MAC Address field, enter the MAC addresses for the access point that
will be the base station.
11. Click the Apply button.
Your changes are saved.
12. V
erify connectivity across the LANs.
A computer on any wireless or wired LAN segment of the router can connect to the
Internet or share files and printers with any other computer or server connected to the
other access point.
