Manage Your Network
130
Nighthawk AC1900 Smart WiFi Router Model R7000
The user name is admin. The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Select ADV

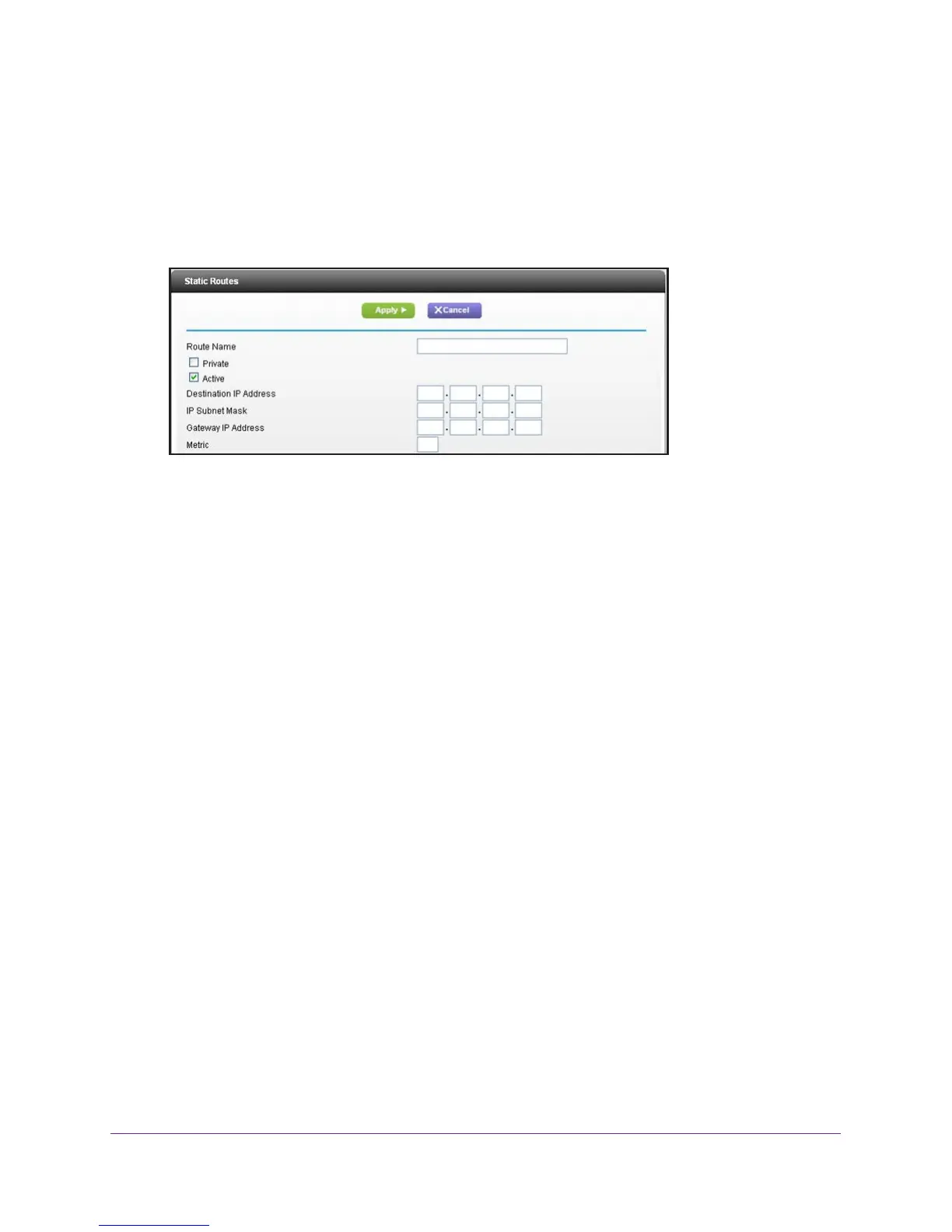

ANCED > Advanced Setup > Static Routes.
5. Click the Add button.
6. In the Route Name field, type a name for this static route (for identification purposes only.)
7. Select the Private check box if you want to limit access to the LAN only
.
If Private is selected, the static route is not reported in RIP.
8. Select the Active check box to make this route ef
fective.
9. T
ype the IP address of the final destination.
10. T
ype the IP subnet mask for this destination. If the destination is a single host, type
255.255.255.255.
11. T
ype the gateway IP address, which must be on the same LAN segment as the router.
12. T
ype a number from 1 through 15 as the metric value.
This value represents the number of routers between your network and the destination.
Usually
, a setting of 2 or 3 works, but if this is a direct connection, set it to 1.
13. Click the Apply button.
The static route is added.
To edit a static route:
1. In the table, select the radio button for the route.
2. Click the Edit button.
The Static Routes screen adjusts.
3. Edit the route information.
4. Click the Apply button.
Your changes are saved.
