Hardware Overview
15
AC1900, N900, and N450 WiFi Cable Data Gateways
Back Panel of the N900 WiFi Cable Data Gateway
LAN ports
Coaxial cable connector
USB port
Power adapter input
Reset button
The back panel contains ports, connectors, and a recessed button.

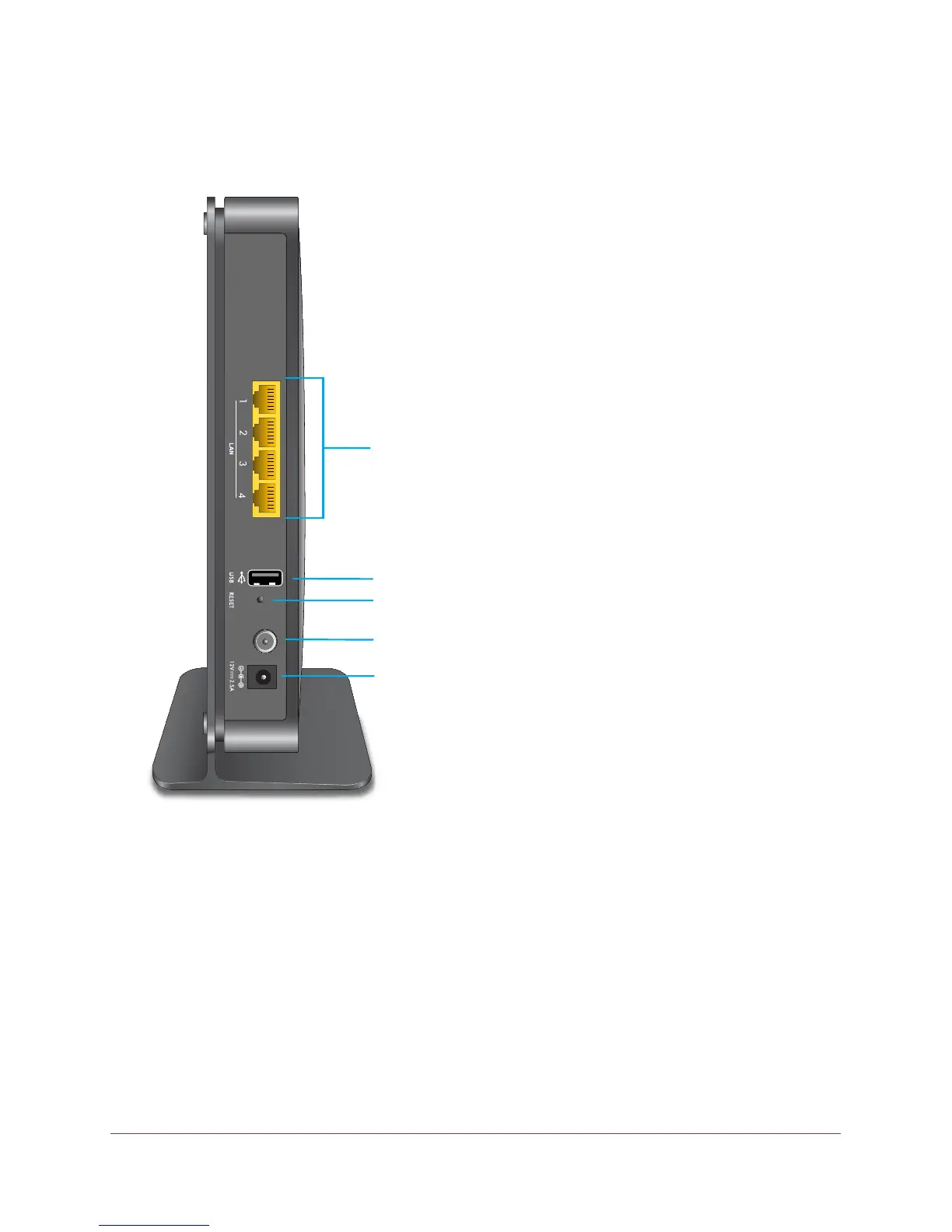

Figure 5. Back panel connections and button of the N900
The back panel includes the following components, viewed from top to bottom:
• Four 10/100/1000 Mbps Ethernet LAN ports. Use these ports to connect local computers
to the Ethernet LAN of the cable data gateway.
• USB port.
The USB 2.0 port lets you connect a USB hard drive or flash drive to the cable
data gateway.
• Recessed Reset button. T
o set the gateway to the original factory settings, press and
hold the Reset button for at least seven seconds. For more information, see Return the
WiFi Cable Data Gateway to Its Factory Default Settings on page 94.
• Coaxial cable connector.
Attach a coaxial cable to the cable service provider’s
connection.
• Power input connector.
Attach the power adapter cable to this input.
