Specify Network Settings
39
ADSL2+ Gateway

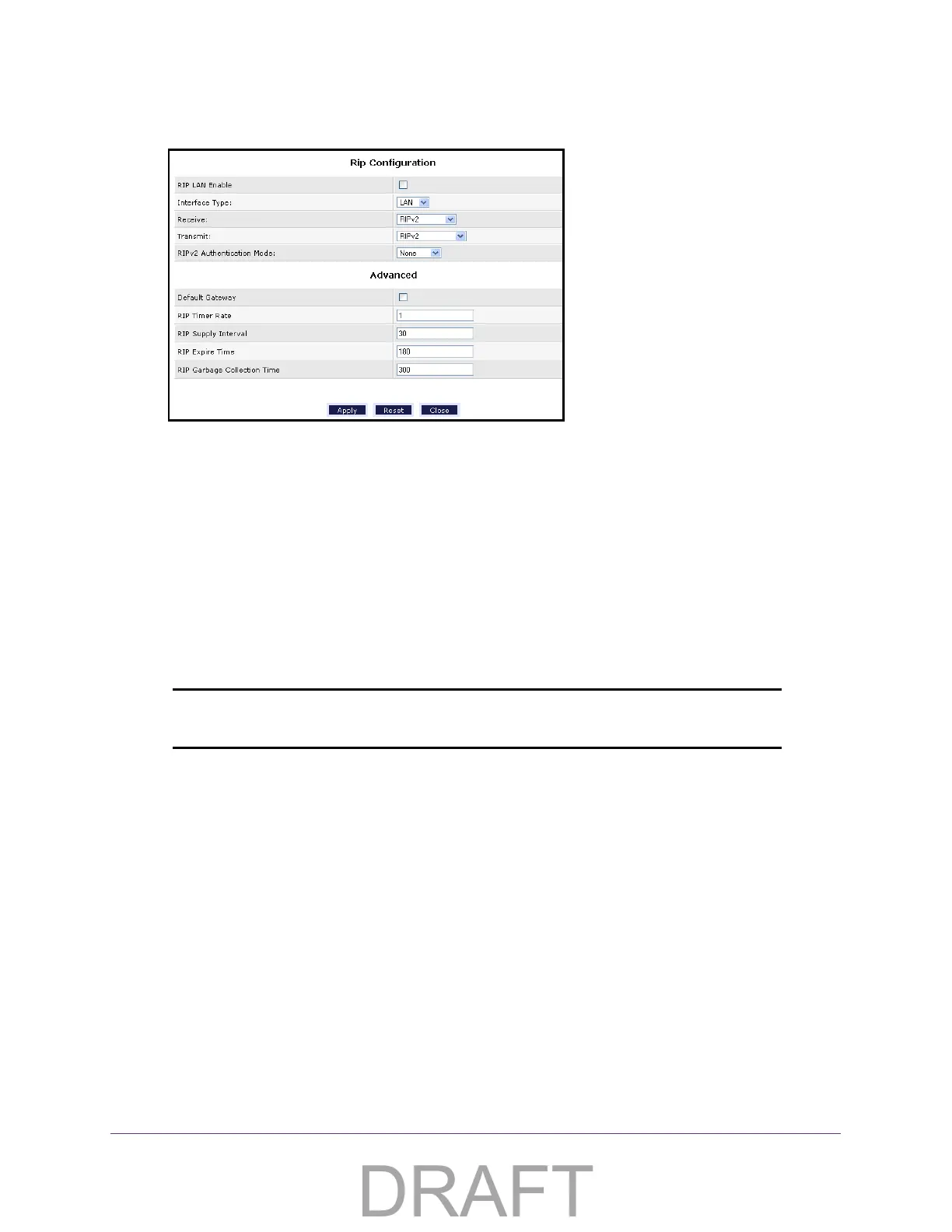

6. Select RIP Configuration.
7. To enable RIP, select the RIP LAN Enable check box.
8. In the Interface T
ype list, select LAN or WAN.
The WAN side is receive-only.
9. Complete the fields to specify the RIP version and the authentication mode.
10. T
o specify a default gateway, select the Default Gateway
check box.
This setting controls whether the gateway advertises itself as a gateway.
11. Click the Apply button.
Your settings are saved.
Note: You can click the Reset button to return the gateway RIP
configuration settings to their default values.
Enable or Disable Multicast IGMP Proxy
By default, IGMP proxy is enabled.
To enable multicast IGMP proxy:
1. Launch an Internet browser from a computer or wireless device that is connected to the
network.
2. T
ype http:/192.168.254.254.
A login window opens.
3. Enter the user name and password.
The user name is
admin. The
default
password is admin. The user name and password
are case-sensitive.
