3-6 Connecting the Router to the Internet
Note: To use a one-line filter with a separate splitter, insert the splitter into the phone
outlet, connect the one-line filter to the splitter, and connect the phone to the filter.
2. CONNECT THE DG834 TO THE INTERNET.
Note: Improperly connecting a filter to your DG834 router will block your ADSL
connection.
a. Turn off your computer.
b. Connect the ADSL port of the DG834 to the ADSL port (B) of the two-line filter.

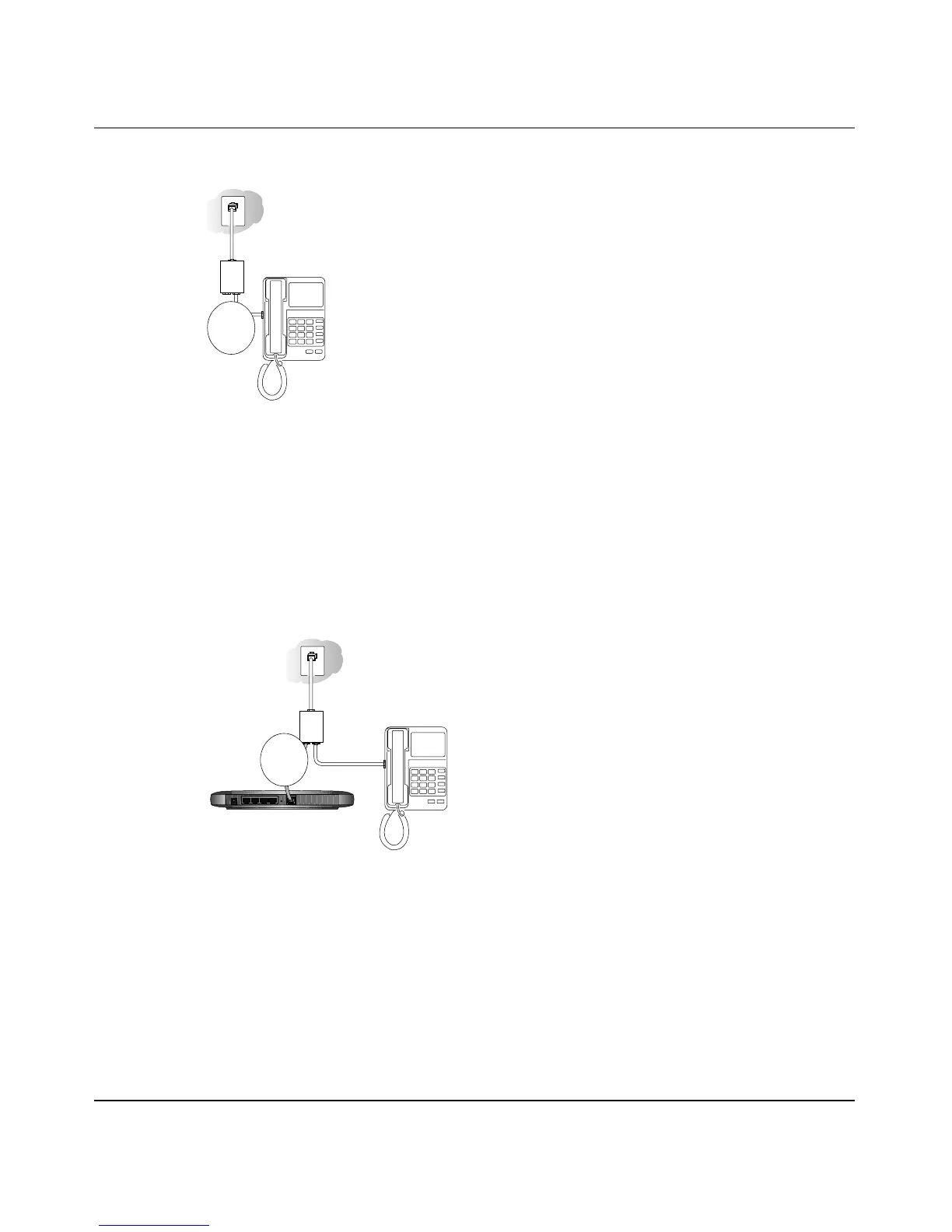

Figure 3-5: Connecting DG834 router to an ADSL microfilter and phone
c.
Connect the Ethernet cable (C) from your DG834’s LAN port to the Ethernet adapter in
your computer.
Figure 3-6: Connecting a computer to the DG834 router
Phone
DSL
Line
A
Phone
DSL
Line
B
