Reference Manual for the ADSL Modem Wireless Router DG834G
7-8 Advanced Configuration
v1.3, March 2007
4. Click Apply to enter the reserved address into the table.
To edit or delete a reserved address entry:
1. Click the button next to the reserved address you want to edit or delete.
2. Click Edit or Delete.
How to Configure LAN TCP/IP Settings
1. Log in to the router at its default LAN address of http://192.168.0.1 with its default User Name
of admin, default password of password, or using whatever User Name, Password and LAN
address you have chosen for the router.

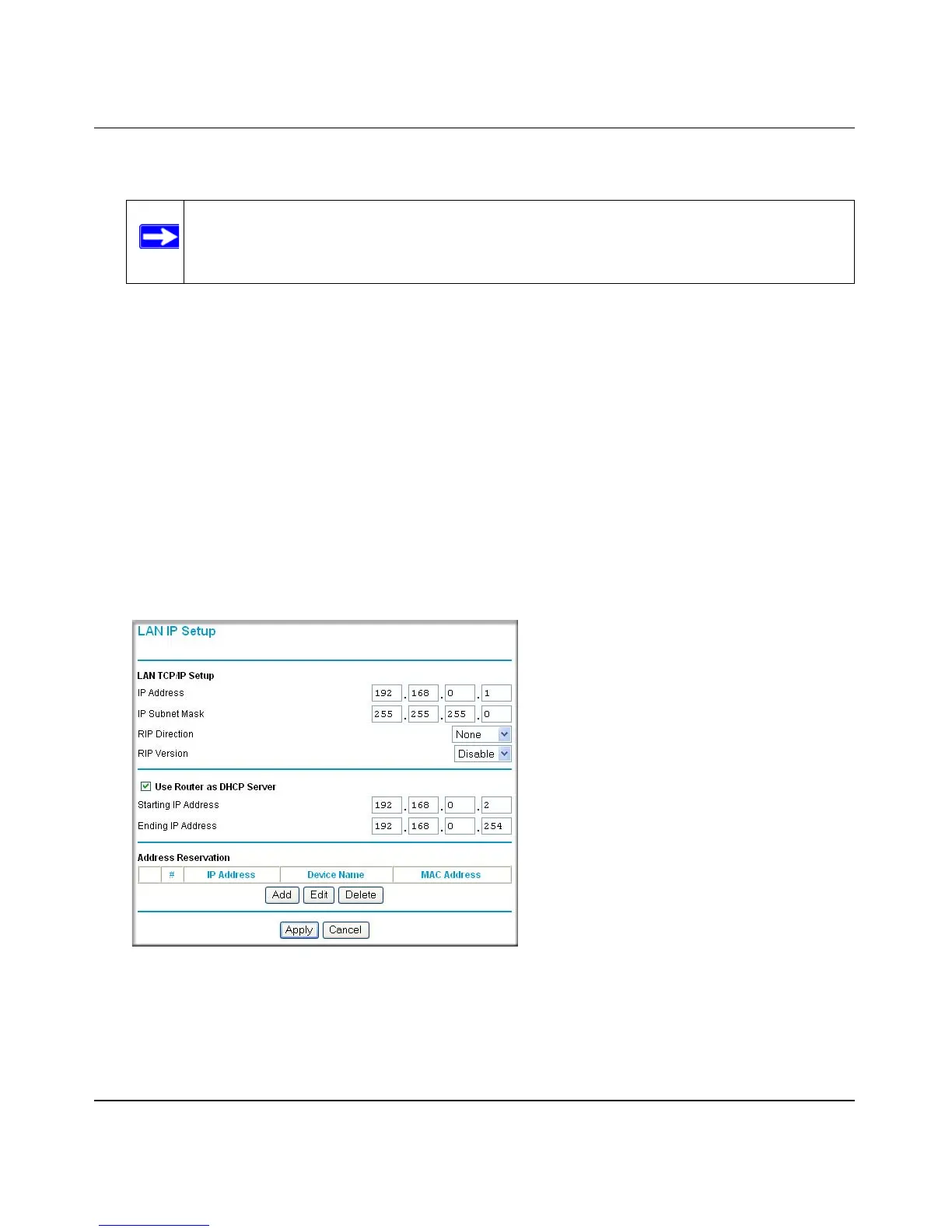

2. From the Main Menu, under Advanced, click the LAN IP Setup link to view the menu,
shown:
3. Enter the TCP/IP, DHCP, or Reserved IP parameters.
4. Click Apply to save your changes.
Note: The reserved address will not be assigned until the next time the computer
contacts the router's DHCP server. Reboot the computer or access its IP
configuration and force a DHCP release and renew.
Figure 7-3
