Extender Network Settings
26
N300 WiF Range Extender

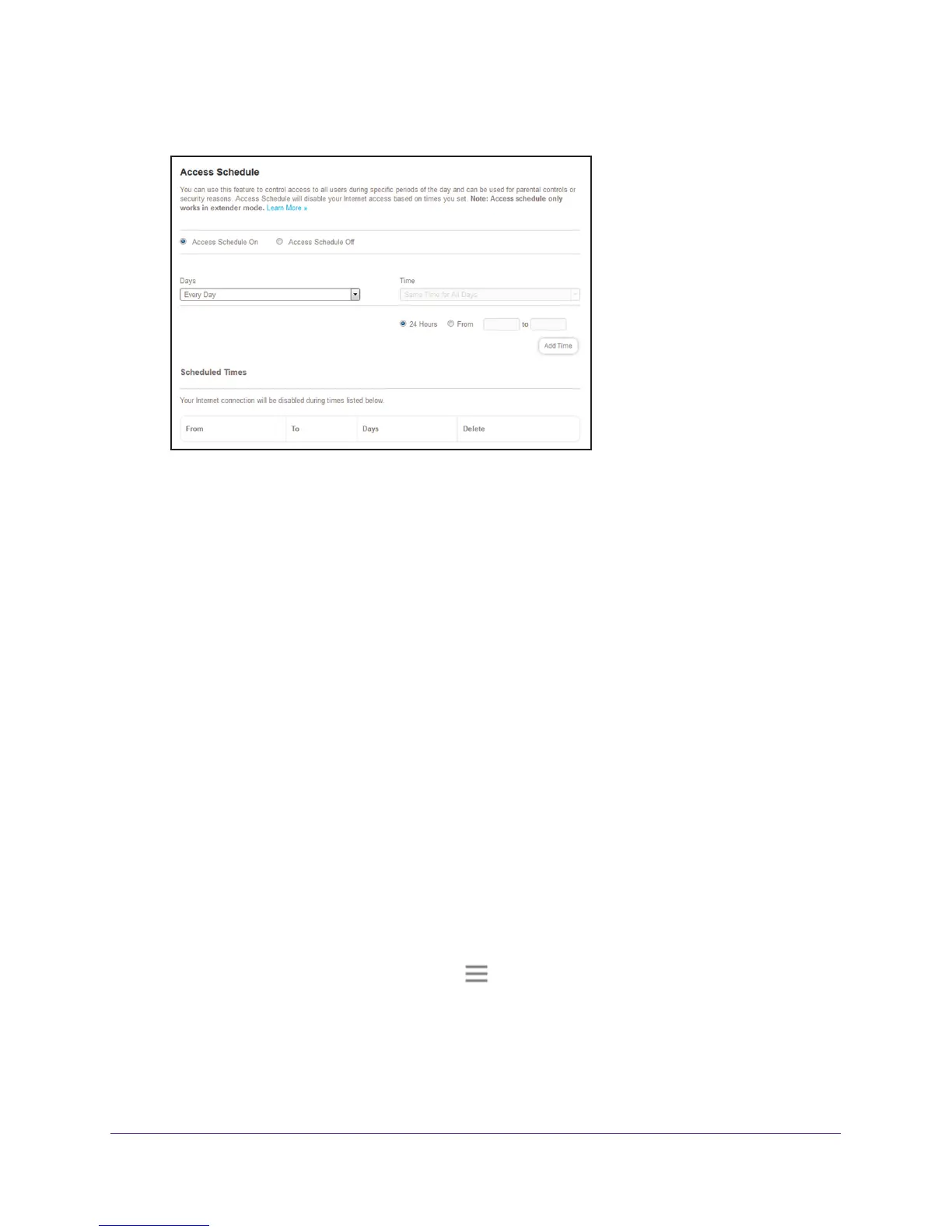

5. Select Do More > Access Schedule.
6. Select the Access Schedule On radio button.
The page adjusts.
7. In the Days menu and the T
ime menu, select the days and time when you want to disable
Internet access.
8. Click the Add T
ime button to add the time that you specified to the Scheduled Times table.
9. Click the SA
VE button.
Your settings are saved.
Set Up the Extender to Use a Static IP Address
The extender comes set up to use a dynamic IP address, which is the correct setting for most
home networks.
 To set up the extender to use a static IP address:
1. On a computer or WiFi device that is connected to the extender network, launch a web
browser
.
2. In the address field of your browser
, enter www.mywifiext.net.
3. When prompted, enter your email address and password.
The Status page displays.
4. If your browser displays the Menu icon
, click it.
The extender menu displays.
5. Select Settings > W
iFi Settings.
The WiFi Settings page displays.

Table of Contents

Other manuals for NETGEAR EX2700

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR EX2700 and is the answer not in the manual?

NETGEAR EX2700 Specifications

General IconGeneral
TypeNetwork repeater
Maximum transfer distance- m
External power adapterNo
On/off switchYes
Product colorWhite
LED indicatorsPower, WPS
Antennas quantity2
Bandwidth2.4 GHz
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology10/100Base-T(X)
Security algorithmsWEP, WPA, WPA2-PSK
Ethernet LAN (RJ-45) ports1
Weight and Dimensions IconWeight and Dimensions
Depth34 mm
Width55 mm
Height67 mm
Weight98 g
