NETGEAR EX6150 User Manual

Get Started
15
AC1200 WiF Range Extender
 To use the extender in access point mode:
1. Plug the extender into an electrical outlet.
2. W
ait for the Power LED to light amber and then turn green.
If the Power LED does not light, press the Power On/Off button on the side of the
extender
.
3. Use an Ethernet cable to connect the Ethernet port on the extender to a router Ethernet LAN
port or a remote Ethernet LAN jack with LAN access.
The extender joins the LAN and creates a WiFi hotspot.
4. Use a WiFi network manager on a computer or WiFi device to find and connect to the
NETGEAR_EXT (SSID) WiFi network.
You can join one of the following extender WiFi networks:
• NETGEAR_EXT
• NETGEAR_5GEXT
When you join the network, the extender Client Link LED lights to show that you are
connected.
5. Launch a web browser and enter www
.mywifiext.net in the address field.
The New Extender Setup screen displays.
6. Click the NEW EXTENDER SETUP button.
The first time that you log in to the extender, the Create Account screen displays. If the
Create
Account screen does not display, visit www.mywifiext.net.

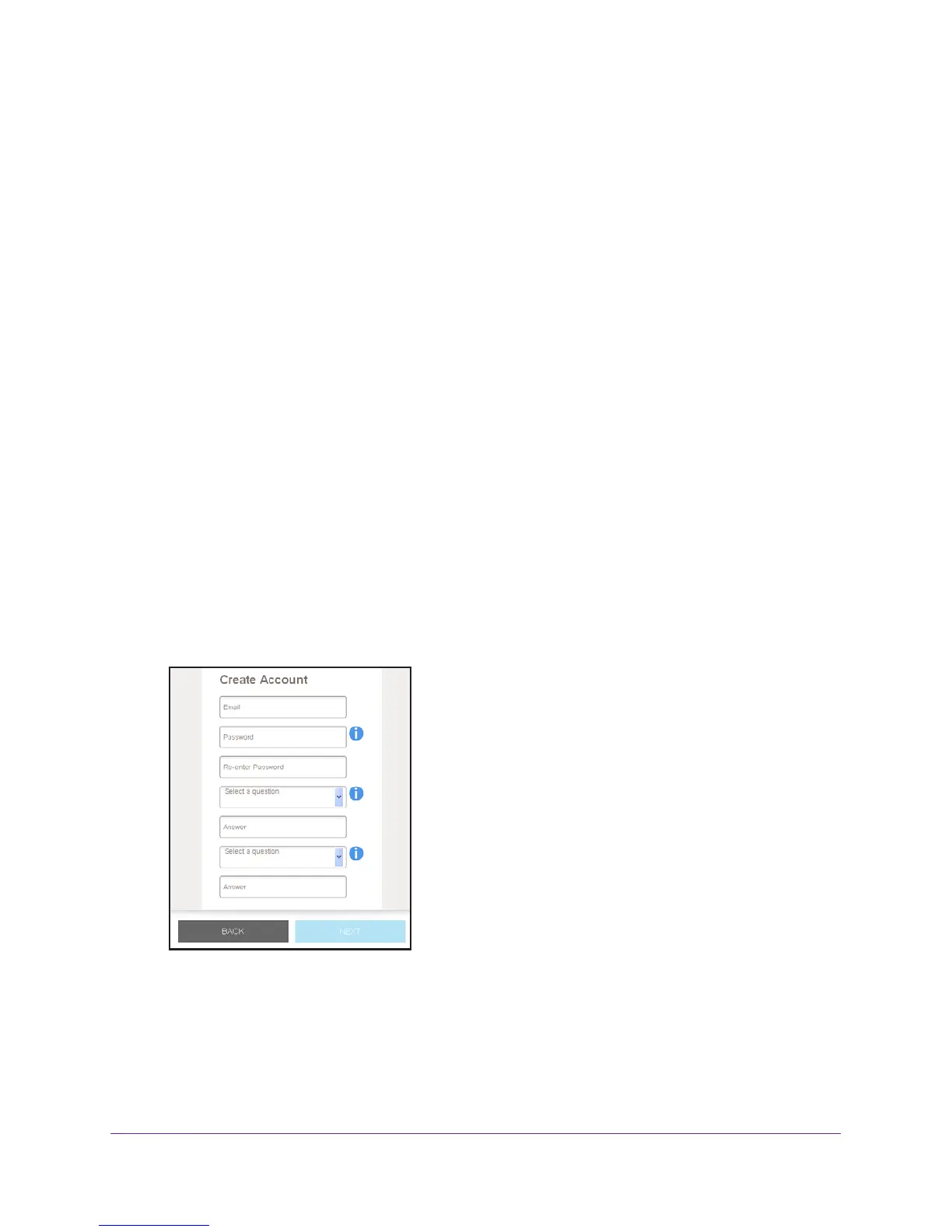

7. Complete the fields on the Create Account screen and click the NEXT button.

NETGEAR EX6150 Specifications

General

Type	-
Maximum transfer distance	- m
Windows operating systems supported	Yes
Product color	White
Antennas quantity	2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Security algorithms	WPS
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Wi-Fi data rate (max)	1200 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	74 mm
Width	122 mm
Height	38 mm
Weight	293 g
