NETGEAR EX6150 User Manual

Extender Network Settings
23
AC1200 WiF Range Extender

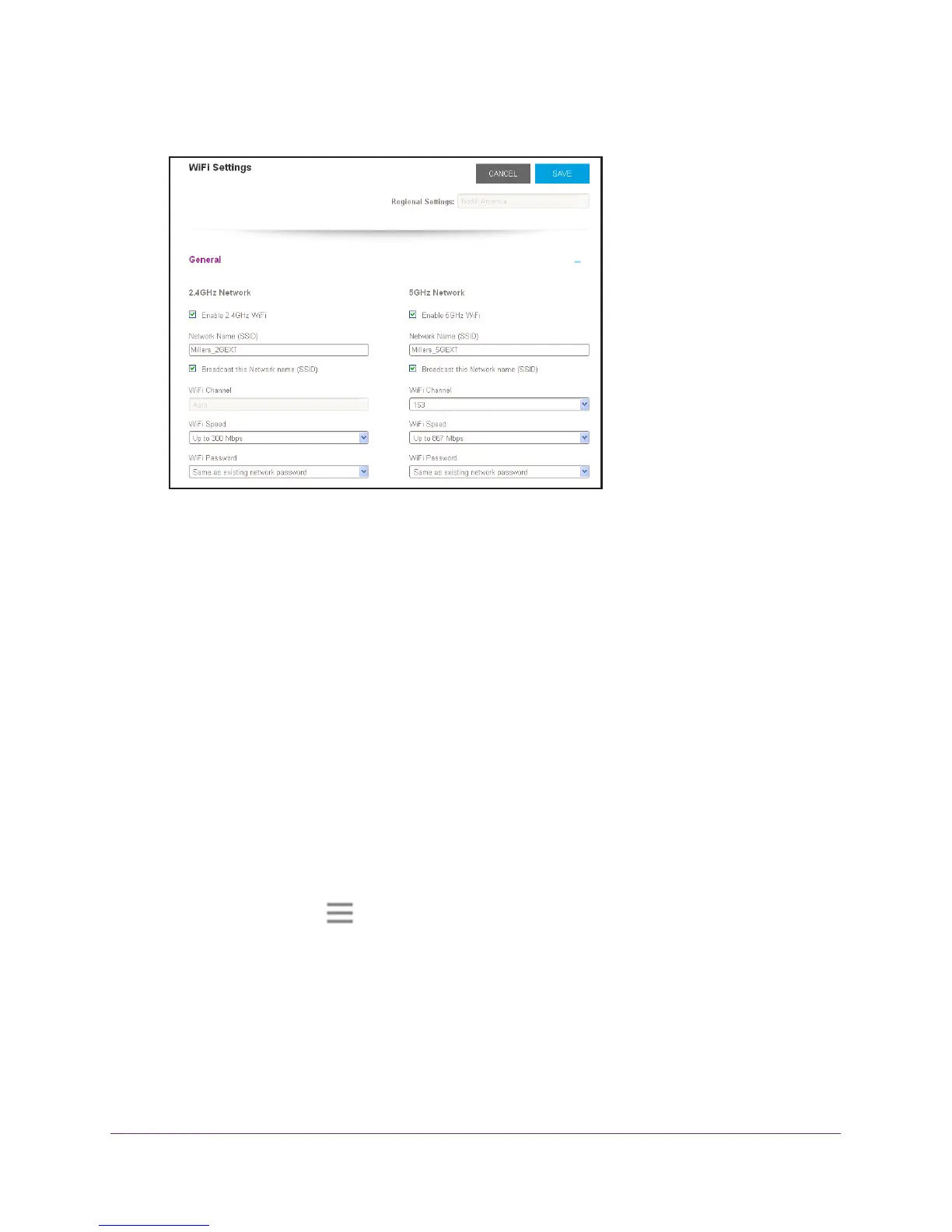

5. Select Settings > WiFi.
6. In each Network Name (SSID) field, type a network name.
7. Click the SA
VE button.
Your settings are saved.
Turn Off the SSID Broadcast to Create a Hidden Network
By default, the extender broadcasts its WiFi signal so that its wireless network names
(SSIDs) are easy for you to find and connect to from your computer, tablet, or smartphone.
You can turn off the SSID broadcast to create a hidden WiFi network. To connect to a hidden
network you must know its SSID and password and manually enter them.
 To turn off the SSID broadcast to create a hidden network:
1. On a computer or WiFi device that is connected to the extender network, launch a web
browser
.
2. In the address field of your browser
, enter www.mywifiext.net.
3. When prompted, enter your email address and password.
4. Click the Menu icon
.
The extender menu displays.

NETGEAR EX6150 Specifications

General

Type	-
Maximum transfer distance	- m
Windows operating systems supported	Yes
Product color	White
Antennas quantity	2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Security algorithms	WPS
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Wi-Fi data rate (max)	1200 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	74 mm
Width	122 mm
Height	38 mm
Weight	293 g
