NETGEAR EX6150 User Manual

Extender Network Settings
24
AC1200 WiF Range Extender

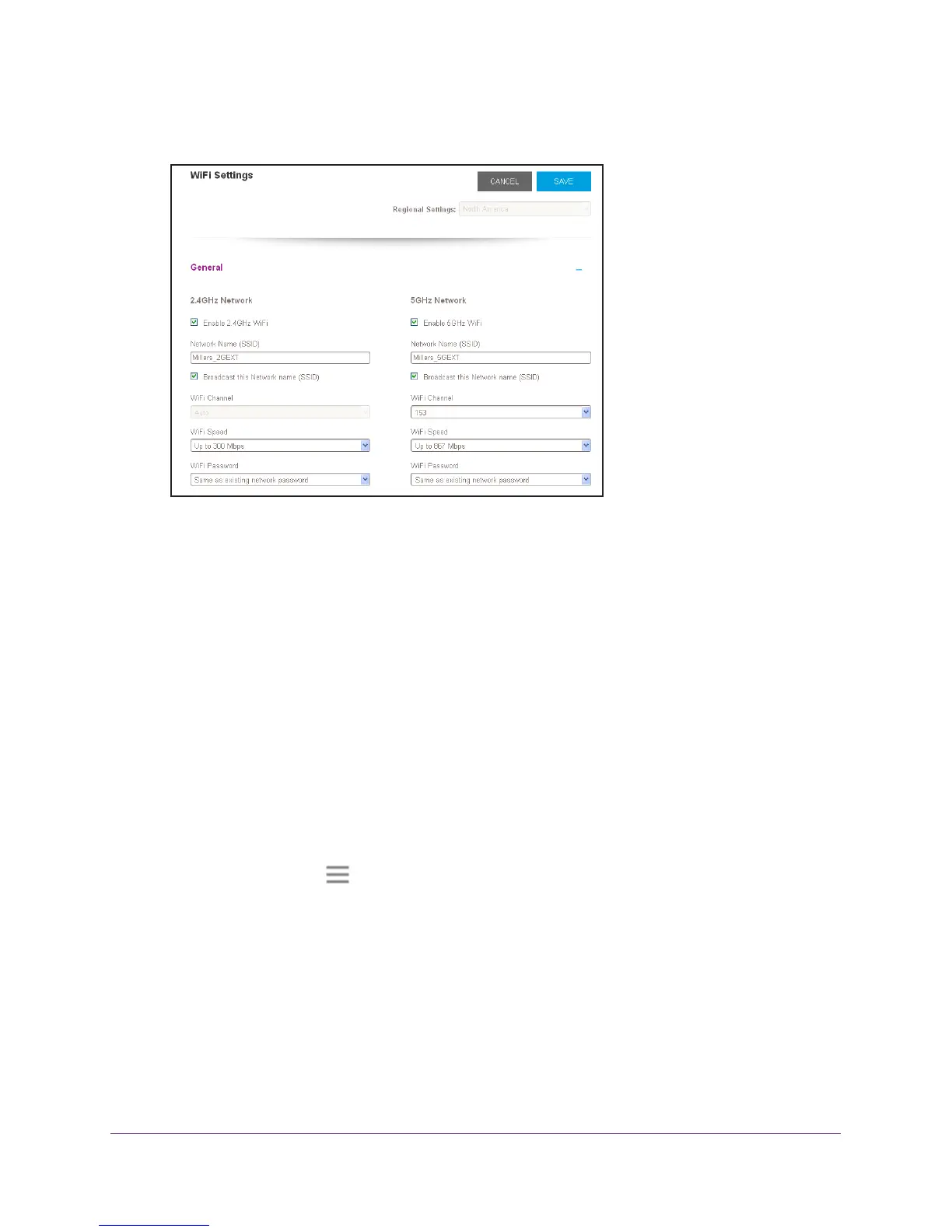

5. Select Settings > WiFi.
6. Clear the Broadcast the Network name (SSID) check box.
7. Click the SA
VE button.
Your settings are saved.
Disable or Enable the WiFi Radios
By default, the extender’s WiFi radios broadcast signals in the 2.4 GHz and 5 GHz bands. If
you disable the WiFi radios, then no one can connect with WiFi to the extender.
 To disable or enable the WiFi radios:
1. On a computer or WiFi device that is connected to the extender network, launch a web
browser
.
2. In the address field of your browser
, enter www.mywifiext.net.
3. When prompted, enter your email address and password.
4. Click the Menu icon
.
The extender menu displays.

NETGEAR EX6150 Specifications

General

Type	-
Maximum transfer distance	- m
Windows operating systems supported	Yes
Product color	White
Antennas quantity	2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Security algorithms	WPS
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Wi-Fi data rate (max)	1200 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	74 mm
Width	122 mm
Height	38 mm
Weight	293 g
