NETGEAR FS728TP User Manual

FS728TP Smart Switch Software Administration Manual
6-26 Managing Security
v1.1, September 2009
IPv4 Rules
The IPv4 Rules screen allows an IP Rule to be defined within a configured ACL. Rules can be
added only if the ACL is not bound to an interface.
To define IPv4 Rules:

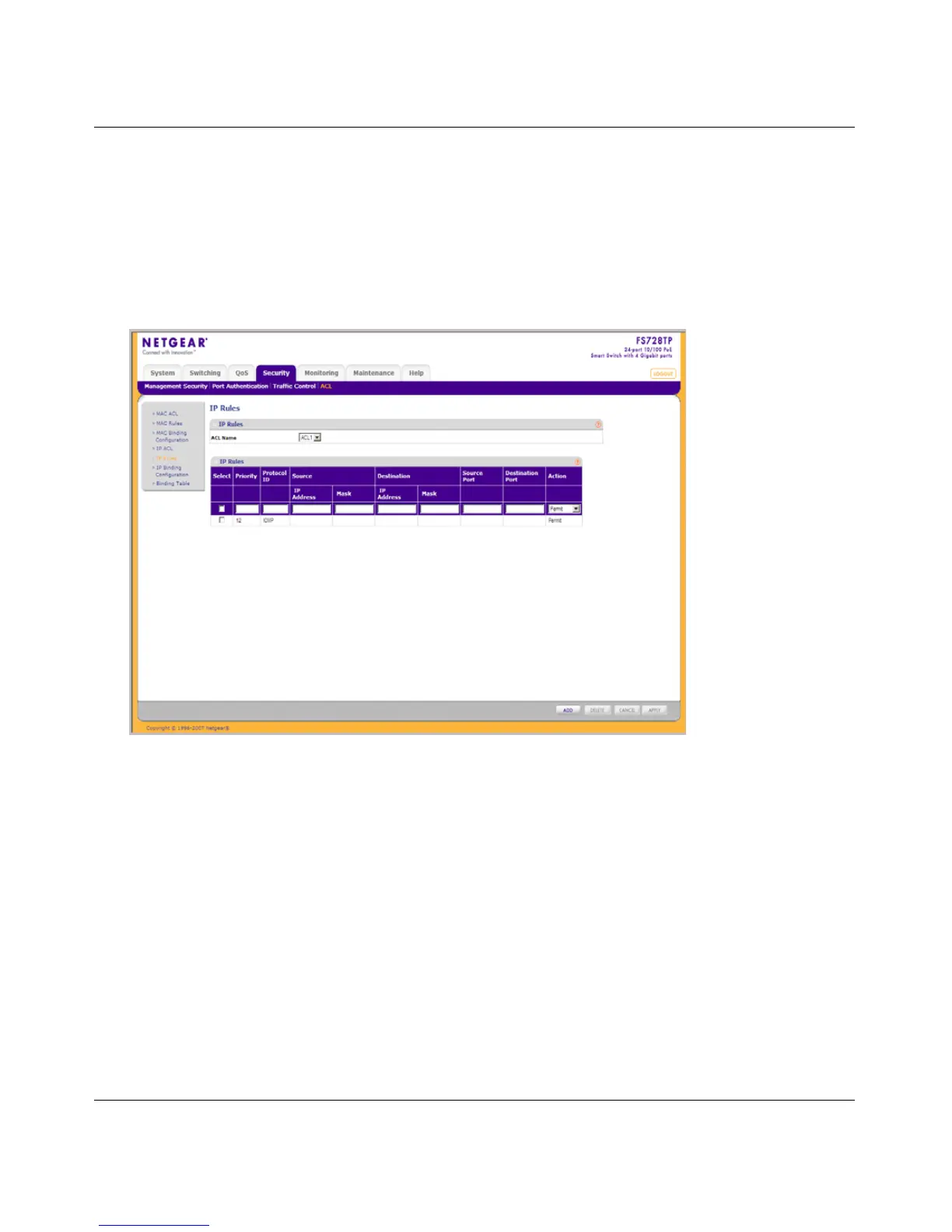

1. Click Security > ACL > IPv4 Rules. The IPv4 Rules screen displays:
The IPv4 Rules screen contains the following fields:
IPv4 Rules
• ACL Name – Select the ACL Name from the list
IPv4 Rules Table
• Priority – Enter the rule priority. When the packet is matched to a rule, user groups are
either granted permission or denied device management access. The rule number is
essential to matching packets to rules, as packets are matched on a first-fit basis.
• Protocol ID – Enter the protocol in the rule to which the packet is matched.
• Source IP Address – Enter the source IP Address.
Figure 6-13

NETGEAR FS728TP Specifications

General

MAC address table	8000 entries
Store-and-forward	Yes
Packet buffer memory	3 MB
Maximum data transfer rate	1 Gbit/s
Number of VLANs	128
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Latency	20 μs
Dimensions (WxDxH)	440 x 257 x 43 mm
Power requirements	100 - 240 VAC, 50 - 60 Hz
Authentication method	IEEE 802.1x
Connectivity technology	Wired
DHCP features	DHCP client
Switch type	Managed
Power connector	DC-in jack
SFP/SFP+ slots quantity	2
Gigabit Ethernet (copper) ports quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Stackable	No
Certification	CE mark FCC Part 15 Class A VCCI Class A C-Tick EN 55024 cUL IEC 950/EN 60950
Noise level	49 dB
Mean time between failures (MTBF)	176000 h
Power consumption (typical)	225 W
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Weight	3600 g
