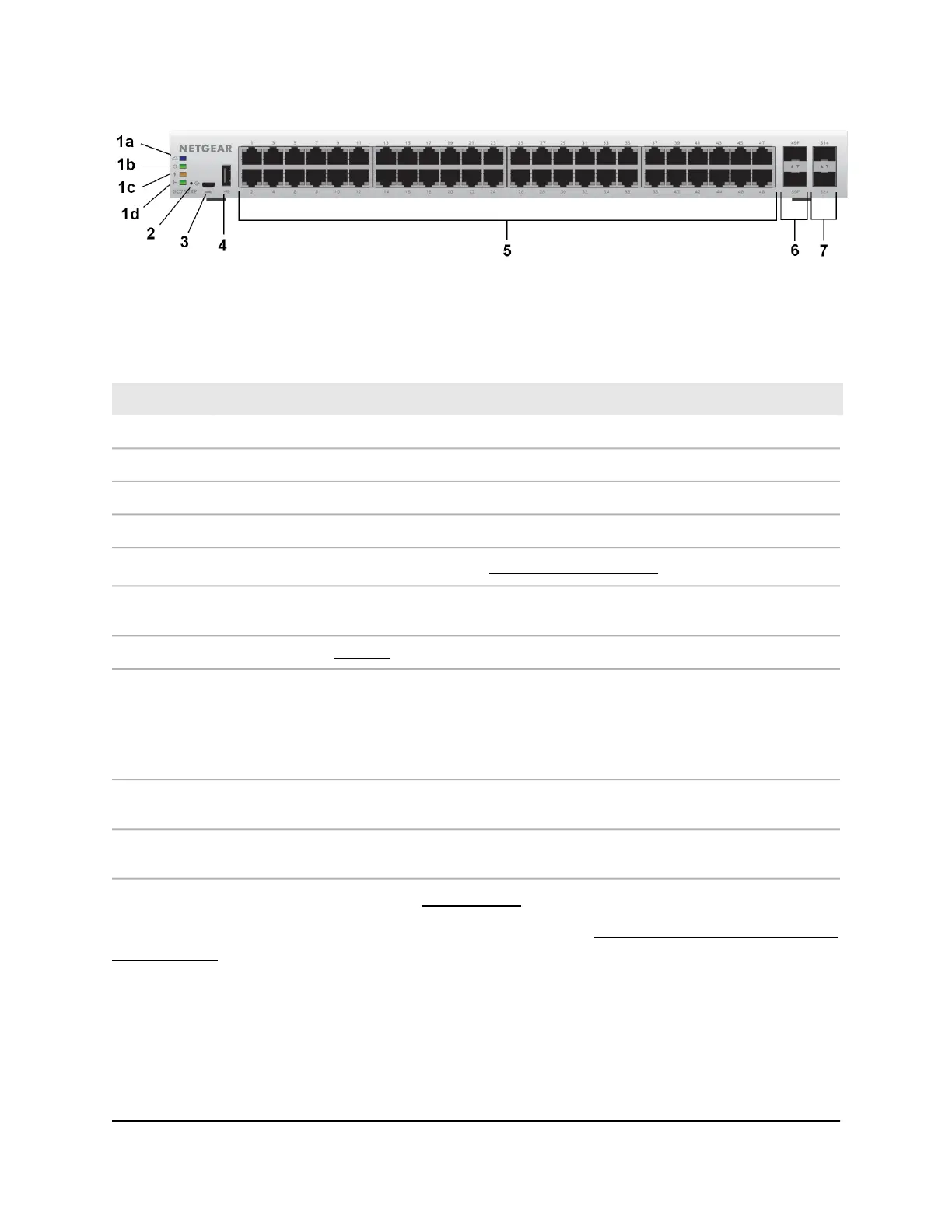

Figure 4. Front panel model GC752XP
Table 2. Front panel components
DescriptionNumber
Cloud Connection LED1a
Power LED1b
PoE Max or Fault LED for model GC752XP only1c
Fan LED1d
Recessed multifunction Reset button (see Multifunction Reset Button on page 22)
2
One micro USB console and debug port. Use this port only as directed and assisted by technical
support.
3
USB 2.0 port (see USB Port on page 21)4
Model GC752X. Forty-eight independent 10/100/1000BASE-T RJ-45 ports, numbered 1 through
48. Each port provides one LED that functions as the combined speed and activity LED.
Model GC752XP. Forty-eight independent 10/100/1000BASE-T RJ-45 PoE+ ports, numbered 1
through 48. Each port provides a left LED that functions as the combined speed and activity LED
and a right LED that indicates the PoE status.
5
Two dedicated Gigabit SFP fiber ports, numbered 49F and 50F, that can accept optional transceiver
modules. Each port provides a single LED that functions as the combined link and activity LED.
6
Two dedicated 10G SFP fiber ports, numbered 51F+ and 52F+, that can accept optional transceiver
modules. Each port provides a single LED that functions as the combined link and activity LED.
7
For information about the LEDs, see Status LEDs on page 16.
For information about optional transceiver modules, see SFP and SFP+ Ports for Fiber
Connectivity on page 21.
Status LEDs
This section describes the status LED designations of the switch.
Hardware Installation Guide16Hardware Overview
Insight Managed 28-Port and 52-Port Gigabit Ethernet (PoE+) Smart Cloud Switch
