NETGEAR M4100 Series Hardware Installation Guide

Hardware Installation
18
NETGEAR Managed Switch
Install the Switch on a Wall (M4100-D12G, M4100-D10-PoE, and
M4100-D12G-POE+ Only)

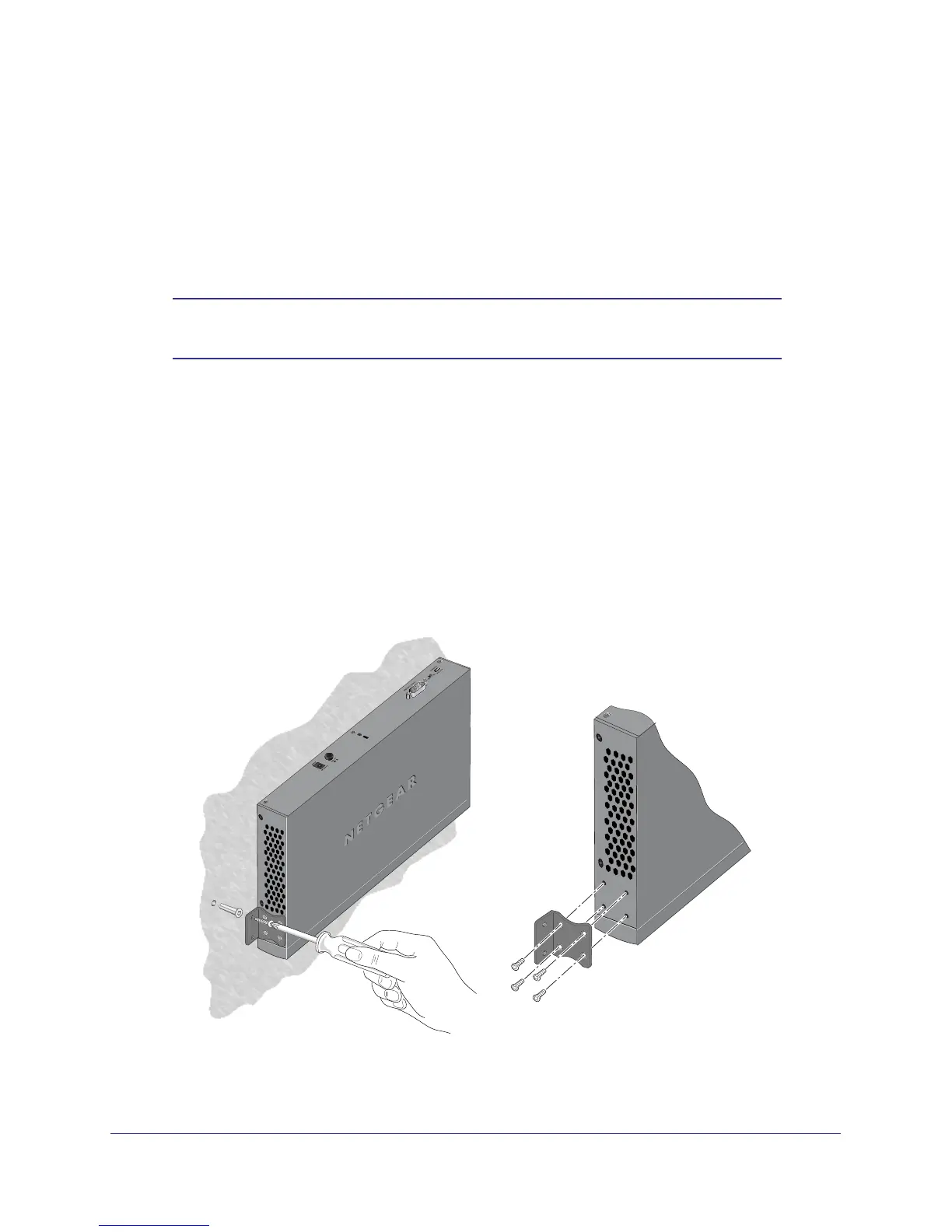

If you install the switch on a wall in the vertical position, be sure to orient the switch as
shown in the following figure. The switch should be mounted so that the ports face up or
down. Do not mount the switch with the ports to the side. The exhaust air should come
out the side of the switch case.
Note: The switch should have a minimum of 5 inches (130 millimeters) of
clearance on all sides.
1. Attach the supplied mounting brackets to the sides of the switch.
2. Use four Phillips head screws to fasten each bracket to the sides of the switch.
3. T
ighten the screws with a No. 1 Phillips screwdriver to secure each bracket.
4. Mark the position of bracket holes on the wall.
5. Drill holes 4.7 mm diameter and 22.2 mm depth at each mark.
6. Hammer caps into holes in the wall.
7. Use two Phillips head screws to fasten each bracket to the wall.
8. T
ighten the screws with a No. 2 Phillips screwdriver to secure the switch to the wall.

NETGEAR M4100 Series Specifications

General

Model	M4100 Series
Switch Type	Managed
Form Factor	Rack-mountable
Port Configuration	24 or 48 ports
Ethernet Ports	10/100/1000 Mbps
PoE Support	Available on some models (PoE and PoE+)
Layer	Layer 2/Layer 3
Management	Web-based, CLI, SNMP
VLAN Support	Yes
QoS	Yes
Stackable	Yes
Ports	24 or 48
Jumbo Frame Support	Yes
Security Features	ACL, 802.1X, RADIUS, TACACS+
Operating Temperature	0° to 50° C (32° to 122° F)
Storage Temperature	-20° to 70° C (-4° to 158° F)
Power Supply	Internal power supply
