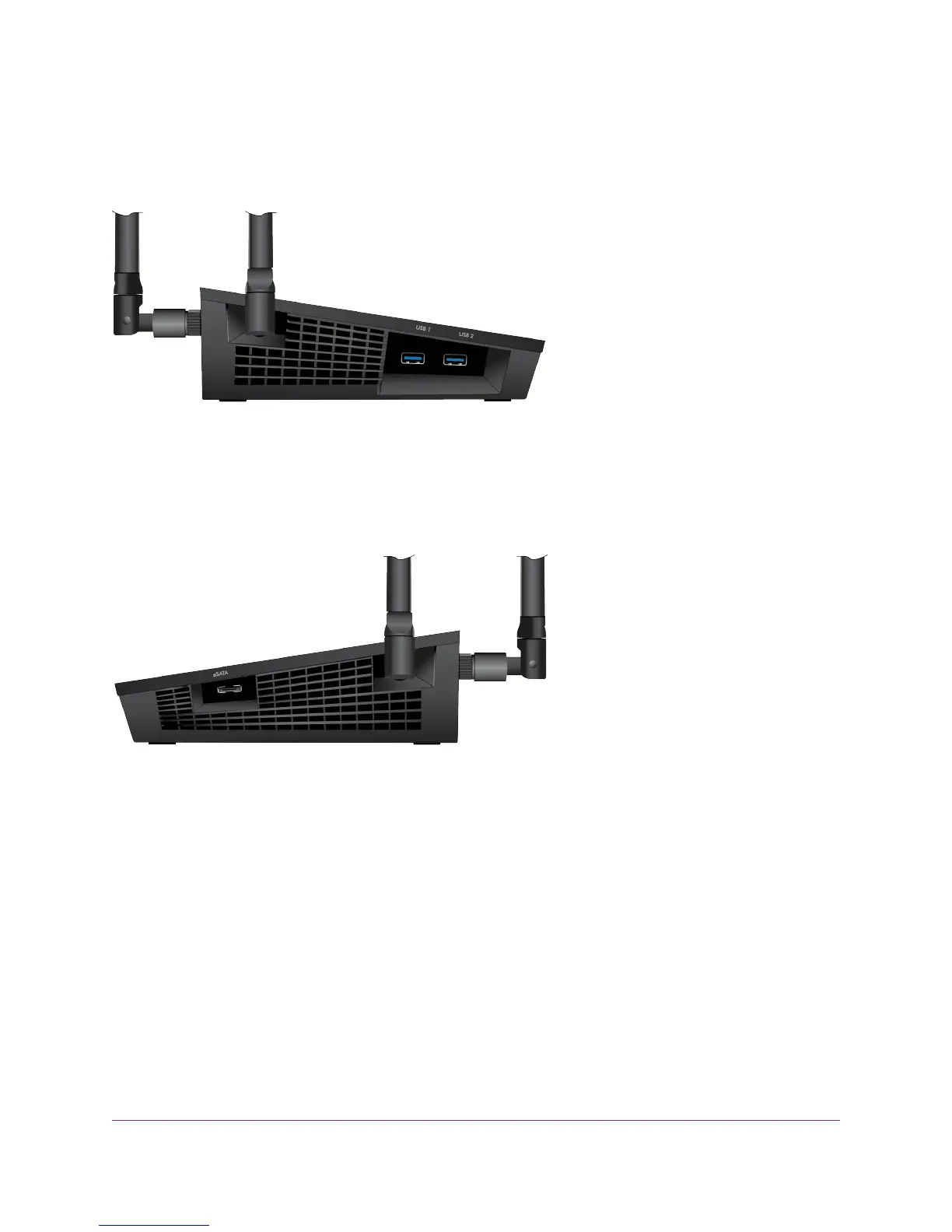

USB Ports on the Left Panel

Two 3.0 USB ports are located on the left panel.

Figure 4. USB ports

eSATA Port on the Right Panel

An eSATA port is located on the right panel.

Figure 5. eSATA port

Hardware Setup

13

Nighthawk X4S AC2600 Smart WiFi Router
