3. WAN Gigabit Ethernet port (with a yellow label). Use this port for your Internet
connection.
4. LAN Gigabit Ethernet ports 1–3. LAN ports 1 and 2 support link aggregation.
5. Power LED
6. DC Power connector
7. Reset button
Orbi Pro WiFi 6 Mini satellite model SXS30 hardware

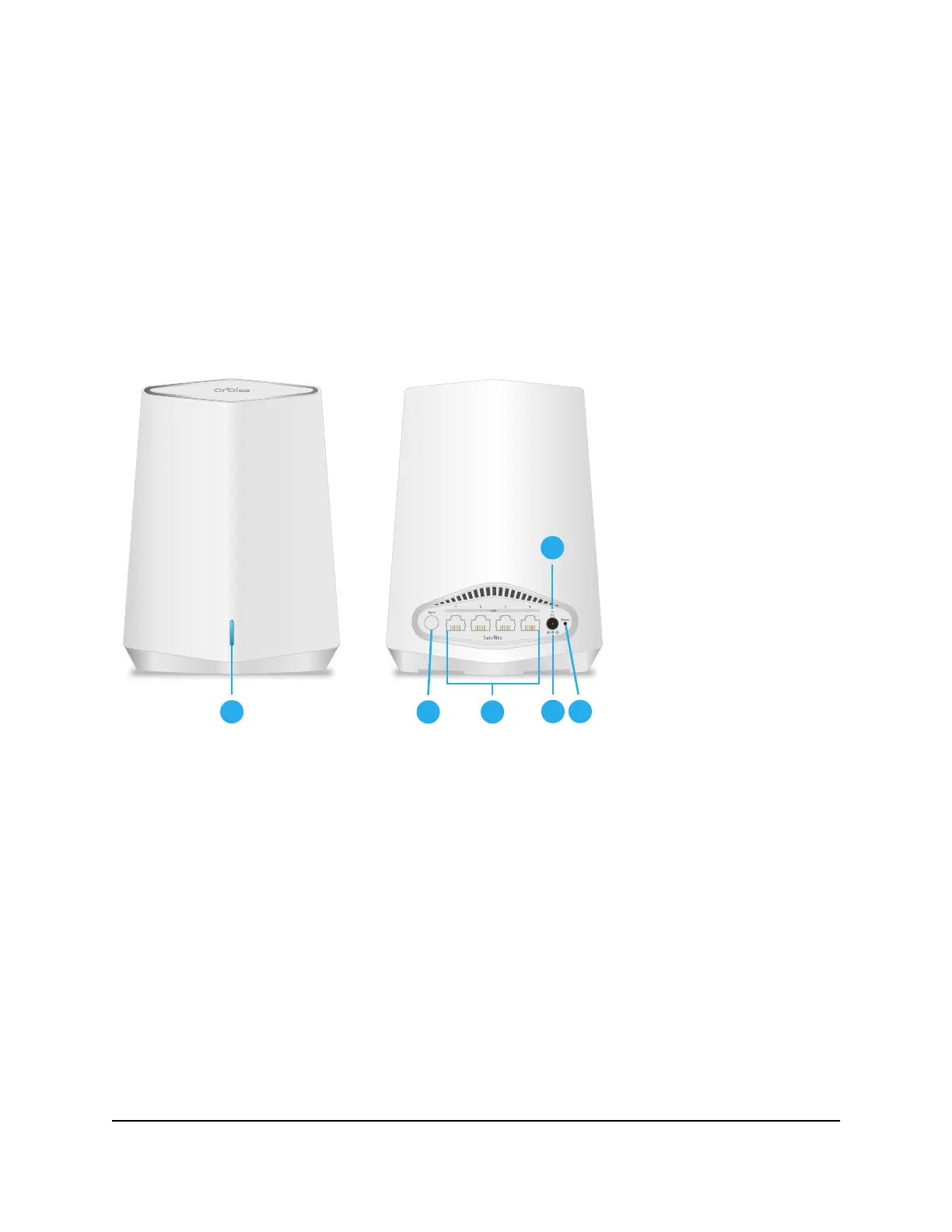

Figure 2. Orbi Pro WiFi 6 Mini satellite model SXS30, front and back views
1. Bar LED
2. Sync button (also used for WPS connection)
3. LAN Gigabit Ethernet ports 1–4. LAN ports 2 and 3 support link aggregation.
4. DC Power connector
5. Power LED
6. Reset button
User Manual13Overview and Setup
Orbi Pro WiFi 6 Mini Router Model SXR30 and Orbi Pro WiFi 6 Mini Satellite Model SXS30
