SFP GBIC Module Bays
The two module bays accommodate standard SFP GBIC modules, such as the AGM731F or AGM732F from NETGEAR, allowing you to have fiber
connections on your network. The module bays are combo ports, sharing a connection with 10/100/1000 Mbps RJ-45 ports, port 49 and 50. Being a
combo port, only one type of connection can be active at any given time. For example, same port number of Gigabit copper port and SFP port
cannot be used at the same time. If both connectors are plugged in at the same time, the SFP port will be active.
LED Descriptions
The front panel of the NETGEAR ProSafe FS750T2 Smart Switch has LEDs that provide a quick and accurate display of link, port speed, and
activity. Table 2-1 summarizes the LEDs on the switch.
Table 2-1. Front Panel LEDs
Label Color Activity Description
Power Green
On
Off
Power is supplied to the switch.
Power is disconnected.
Green On or Blinking 100 Mbps Link or Activity 10/100 Mbps LED
Yellow On or Blinking 10 Mbps Link or Activity
On Link 1000 Mbps Link/Act LED Green
Blink Activity
Green On Link at 1000 Mbps
On Link at 100 Mbps
1000 Mbps Speed LED
Yellow
Off Link at 10 Mbps
SFP (MiniGBIC) Link/Act Green On
Blinking
Off
A valid 1000Mbps link is established on the port
Data transmission is occurring on the port.
No 1000Mbps link is established on the port
Reset Button
The FS750T2 has a Reset Button to trigger a hardware reset of the switch. This is equivalent to turning the power off and back on. The last saved
configuration will be loaded onto the switch as it resets. To press the Reset Button, insert a small device such as a paper clip into the opening to
press the recessed button. The LEDs on the switch should go out and then come back on as the switch goes through its Power On Self Test
(POST).

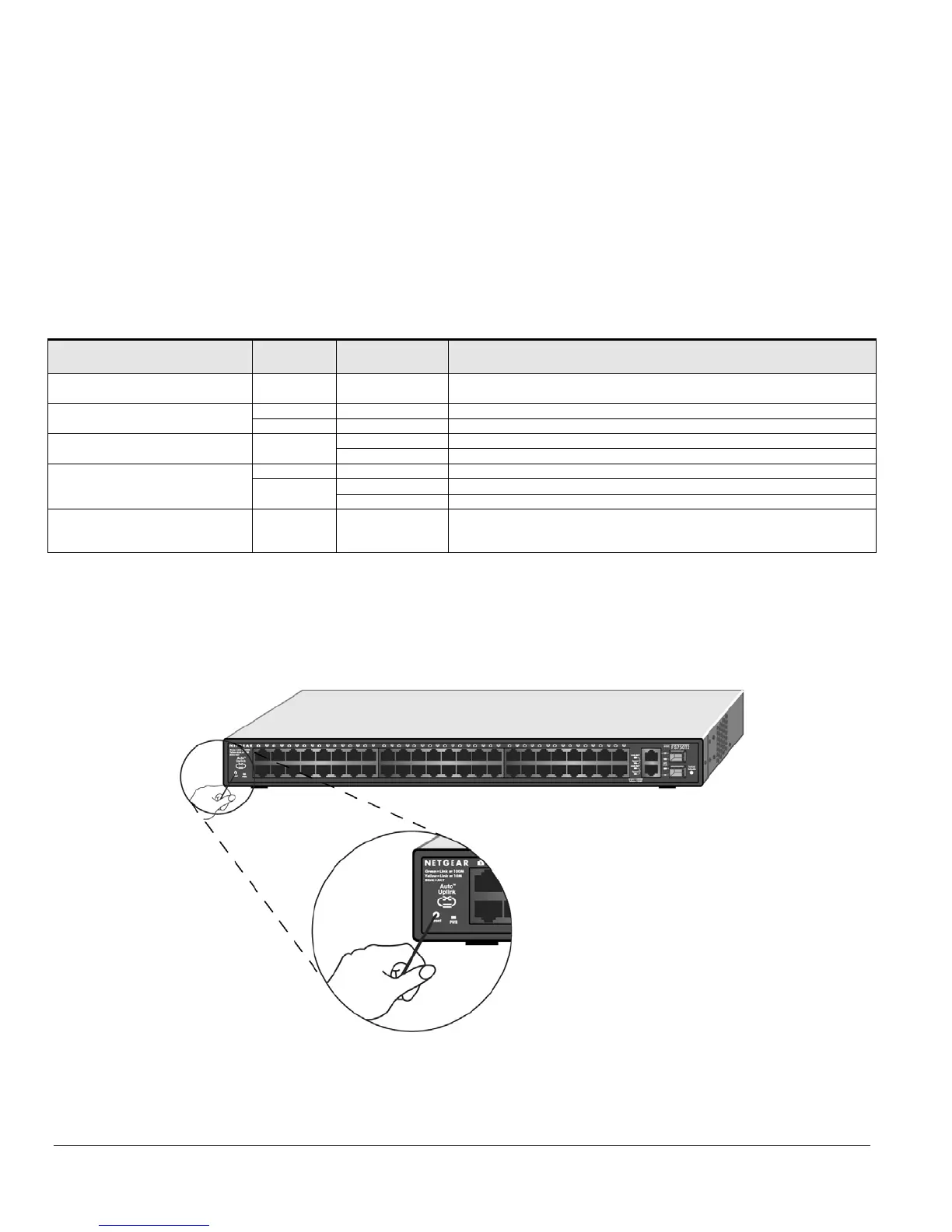

Figure 2-3. Reset Button of the FS750T2 Smart Switch
