GS110TP Hardware Installation Guide
2-2 Physical Description
v1.0, March 2010
• Power and Status LED
• PoE Max LED

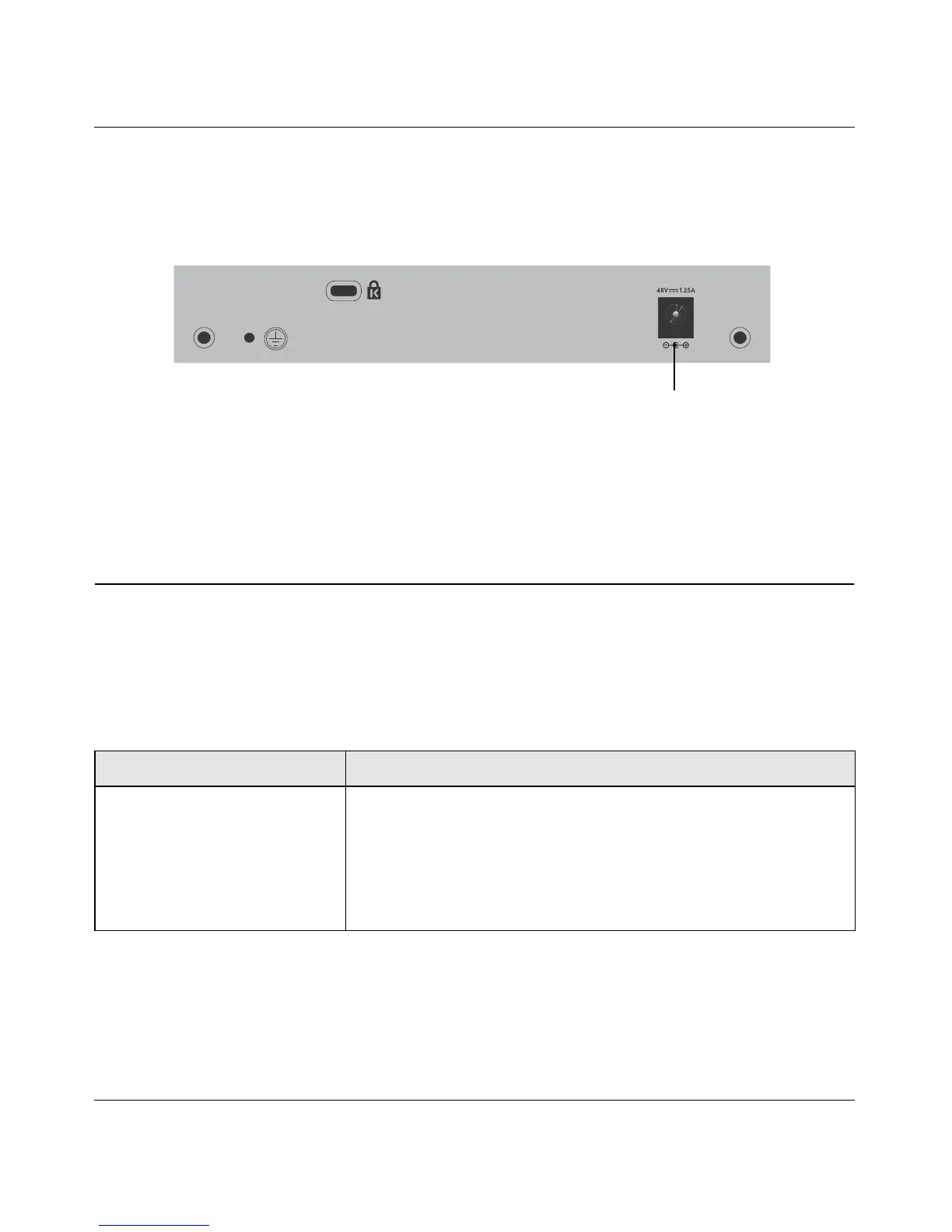

Figure 2-2 illustrates the NETGEAR GS110TP Smart PoE Switch back panel.
Power Connector
Figure 2-2
The back panel contains the following:
• A DC input for the supplied 48V/1.25A external power adapter
LED Designations
Port LEDs
The following table describes the RJ-45 and SFP port LED designations. There are two LEDs for
each RJ-45 port.
Each SFP port has its own indication LED.
Table 2-1. Port LEDs
LED Designation
Speed/Link/Activity
(Left LED on each RJ-45 port)
• Off = No link is established on the port.
• Solid Green = A valid 1000 Mbps link is established on the port.
• Flashing Green = Packet transmission or reception is occurring on
the port at 1000 Mbps.
• Solid Yellow = A valid 10/100 Mbps link is established on the port.
• Flashing Yellow = Packet transmission or reception is occurring on
the port at 10/100 Mbps.
