Manage Network Settings
23
ProSAFE Gigabit Web Managed (Plus) Switches
Use the ProSAFE Plus Utility Specify LAG Membership and
Enable LAGs
You must set up LAG membership before you can enable LAGs.
To specify LAG membership and enable a LAG:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired network connection, or connect directly to a switch that is
off-network using an Ethernet cable.
2. Double-click the ProSAFE Plus Utility icon.
The Switch Selection page displays a list of Web Managed (Plus) switches that it
discovers on the local network.
3. Select the switch.
If you do not see the switch, click the REFRESH button.
4. Click the APPLY button.
You are asked to enter the password for the switch.
5. Enter the switch’s password in the password field.
The switch’s default password is password.
The Switch Status page displays.

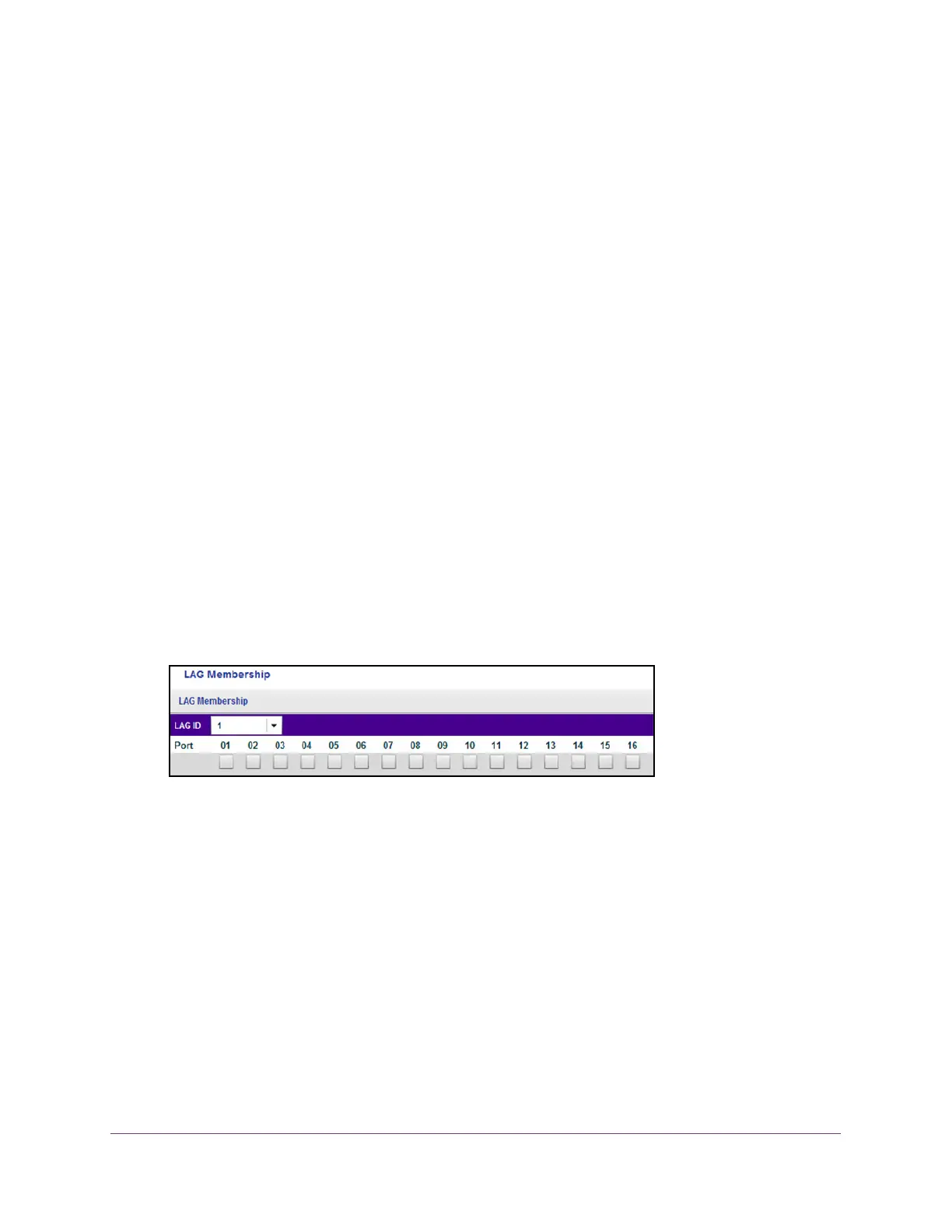

6. Select System > LAG > LAG Membership.
The previous figure is an example. Your switch might provide a larger number of ports.
7. In the LAG ID menu, select the LAG ID.
The number of LAGs that the switch supports depends on the model.
8. Select the ports for the LAG by selecting the associated check boxes under the port
numbers.
A LAG consists of at least two ports.
9. Click the APPLY button.
Your settings are saved.
10. Select System > LAG.
