Configure Quality of Service
204
ProSAFE 10-Gigabit Smart Managed Switch XS728T and XS748T User Manual
 To map DSCP values to queues:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection to connect your computer to the network, or
connect directly to a switch that is off-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser, enter the IP address of the switch.
If you do not know the IP address of the switch, see Change the Default IP Address of the
Switch on page 10.
The login window opens.
4. Enter the switch’s password in the Password field.
The default password is password.
The System Information page displays.

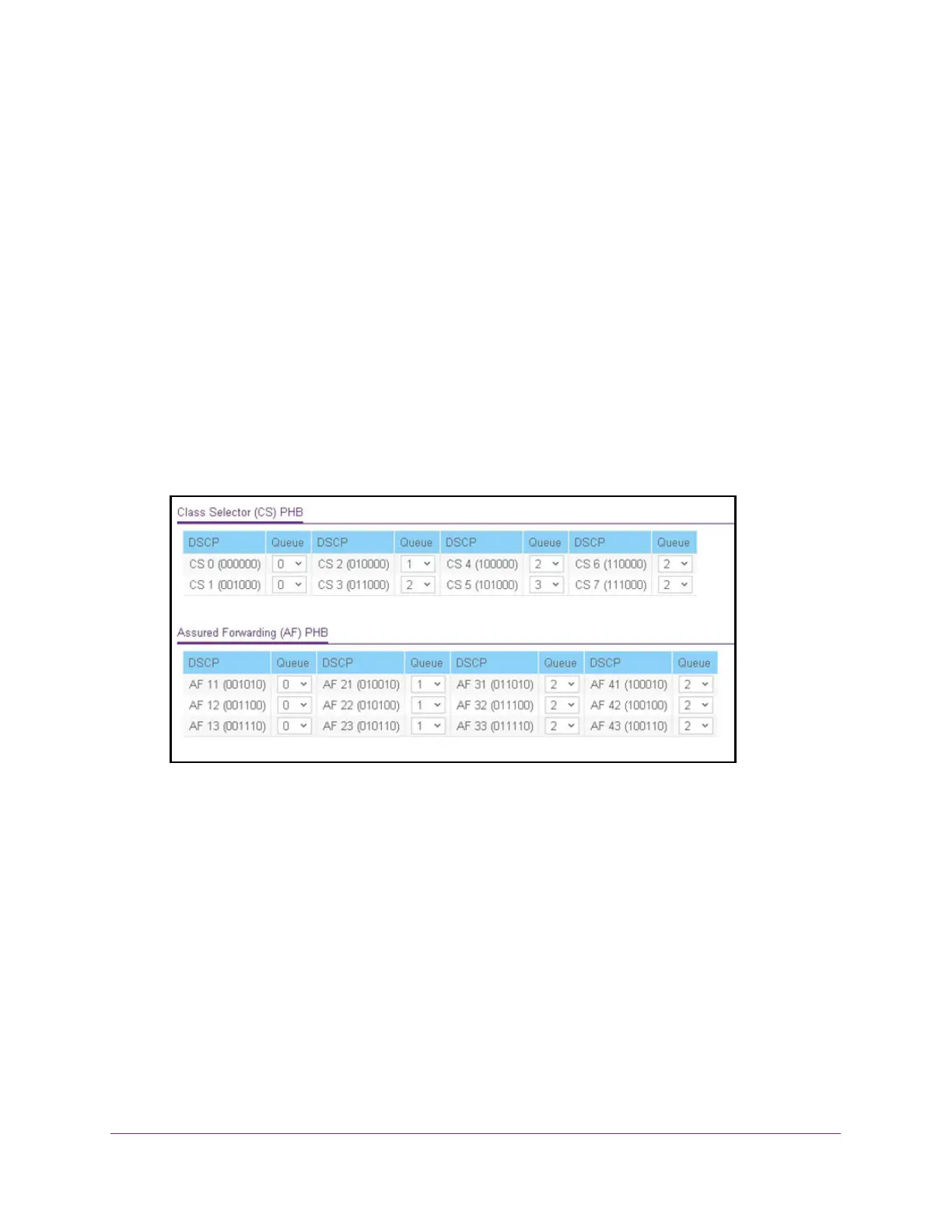

5. Select QoS > CoS > Advanced > DSCP to Queue Mapping.
The previous figure does not show the Expedited Forwarding (EF) PHB values and the
Other DSCP Values (Local/Experimental Use) values.
6. For each DSCP value, select from the corresponding Queue menu which internal traffic
class must be mapped to the DSCP value.
The traffic class is the hardware queue for a port. Higher traffic class values indicate a
higher queue position. Before traffic in a lower queue is sent, it must wait for traffic in
higher queues to be sent.
7. Click the Apply button.
The updated configuration is sent to the switch. Configuration changes take effect
immediately.
