Get Started
21
ProSAFE 10-Gigabit Smart Managed Switch XS728T and XS748T User Manual
5. Select System > Device View.

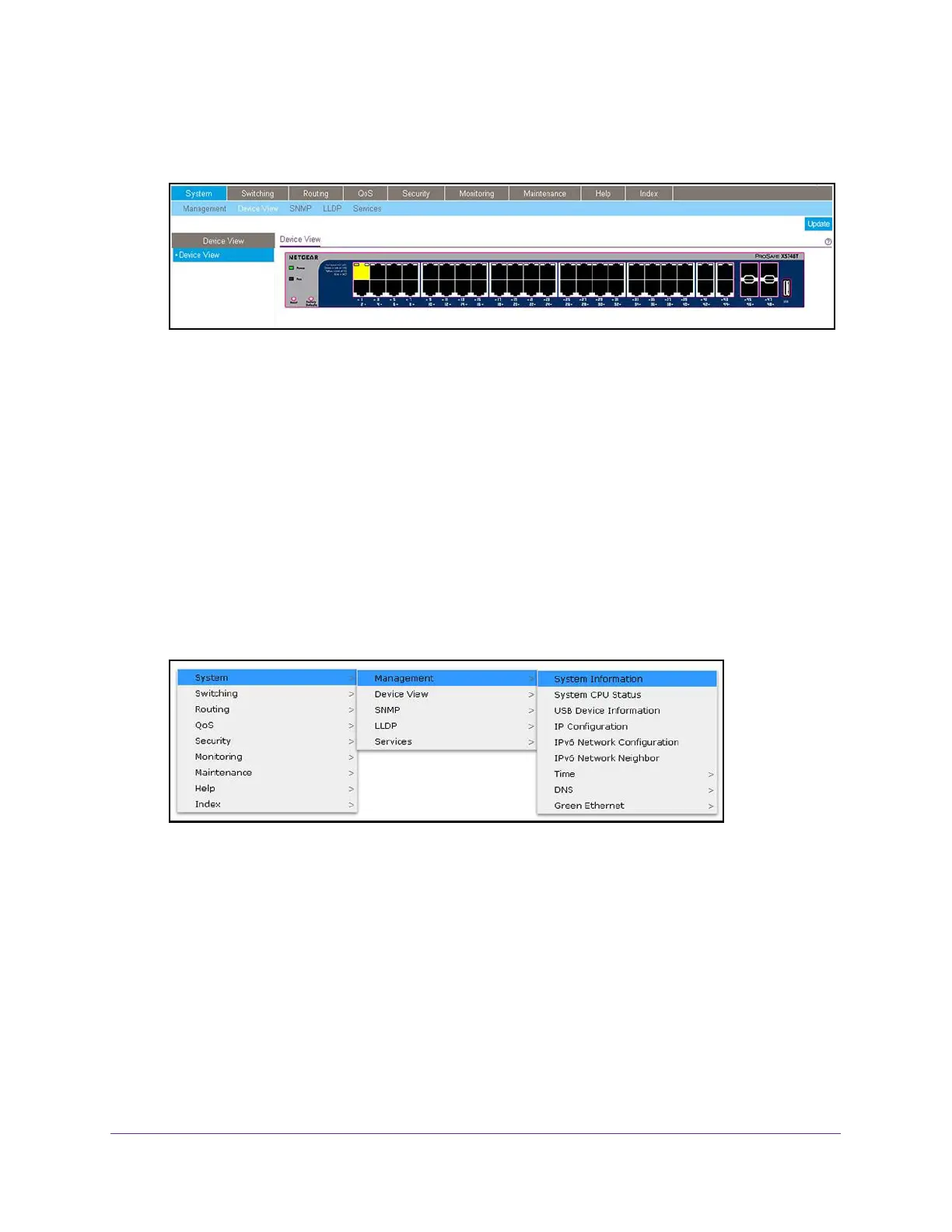

The following figure shows the device view of the XS748T switch.
Depending upon the status of the port, the port color in Device View is either yellow,
green, or black.
• Solid yellow indicates that a valid 10 Gbps link is established.
• Blinking yellow indicates that packets are being transmitted or received at 10 Gbps.
• Solid green indicates that a valid 1 Gbps link is established.
• Blinking green indicates that packets are being transmitted or received at 1 Gbps.
• Black indicates that no link is present.
6. Click a port to open a menu that displays statistics and configuration options.
You can select a menu option to access the page that contains the configuration or
monitoring options.
If you right-click the graphic, but do not right-click a specific port, the main menu displays.
This menu contains the same options as the navigation tabs at the top of the page.
Right-click the specific port that you want to view or configure to see a menu that displays
statistics and configuration options. Select the menu option to access the page that
contains the configuration or monitoring options.
The system LEDs are located on the left side of the front panel.
Power LED
The Power LED is a bicolor LED that serves as an indicator of power and diagnostic status:
• Solid green. The power is supplied to the switch and operating normally.
• Solid yellow. The system is in the boot-up stage.
• Off. No power is supplied to the switch.
