5. Ethernet ports. Use the four Gigabit Ethernet RJ-45 LAN ports to connect Ethernet
LAN devices to your router.
The router supports port aggregation:
•
Internet (WAN) aggregation. Use Ethernet port 1 with the Internet port to set
up a Multi-Gig Internet connection with port aggregation. For more information,
see Get Multi-Gig Internet With Internet Port Aggregation on page 31.
•
LAN aggregation. Use Ethernet ports 3 and 4 to set up a port aggregation link
to a LAN device that also supports Ethernet port aggregation. For more
information, see Manage Ethernet Port Aggregation to a LAN Device on page
96.
You can set up both Internet (WAN) aggregation and LAN aggregation.
6. Multi-Gig 2.5G/1G Ethernet port 5. Use a Category 5e (Cat5e) Ethernet cable or
higher rated Ethernet cable to connect a high-speed modem for a high-speed
Internet connection. For more information, see Get Multi-Gig Internet With the
Multi-Gig Port on page 31.
If you do not use the Multi-Gig port for an Internet connection, you can connect a
high-speed LAN device such as a Multi-Gig Ethernet switch to the port.
7. Power On/Off button. Press the Power On/Off button to provide power to the
router.
8. DC power connector. Connect the power adapter that came in your product package
to the DC power connector.
Extend the antennas
Before you install your router, extend the antennas as shown in the following figure.

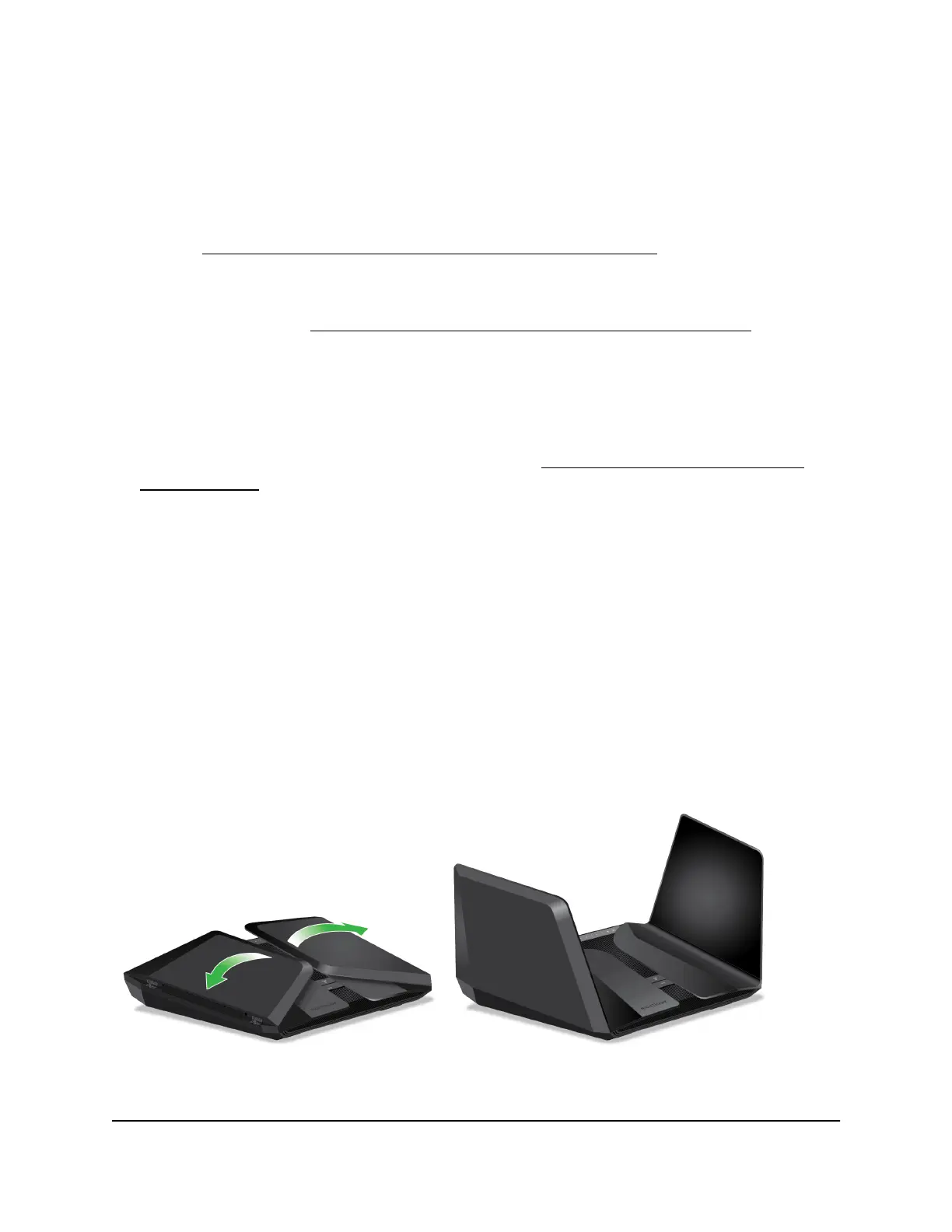

Figure 4. Position the antennas
User Manual14Hardware Setup
Nighthawk AXE11000 Tri-Band WiFi 6E Router
