NETGEAR WNDA3100v2 - RangeMax Dual Band Wireless-N USB 2.0 Adapter

NETGEAR RangeMax Dual Band Wireless-N USB Adapter WNDA3100v2 User Manual
1-9
v1.0, June 2009

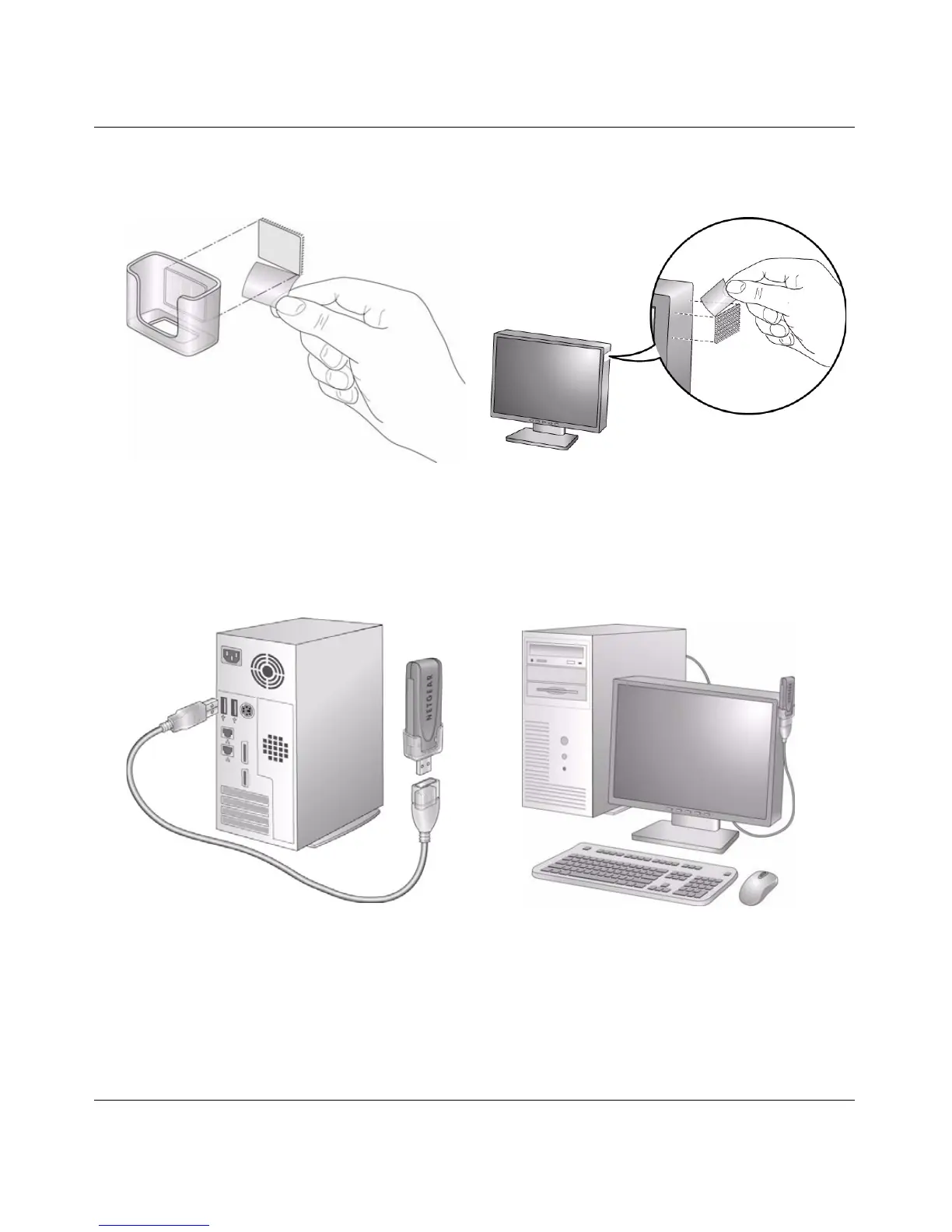

2. Attach the smooth side of the fastener to the back of your monitor, near the top for better
reception.
3. Insert the adapter in the plastic cradle and attach the USB cable to the adapter and the
computer.
4. Attach the cradle with the adapter to the side of the PC monitor where you placed the fastener.
Figure 1-7
Figure 1-8
