NETGEAR XAV1301v1/XAVB1301v1 User Manual

Powerline Utility
12
Powerline AV 200 Mini Adapter XAV1301

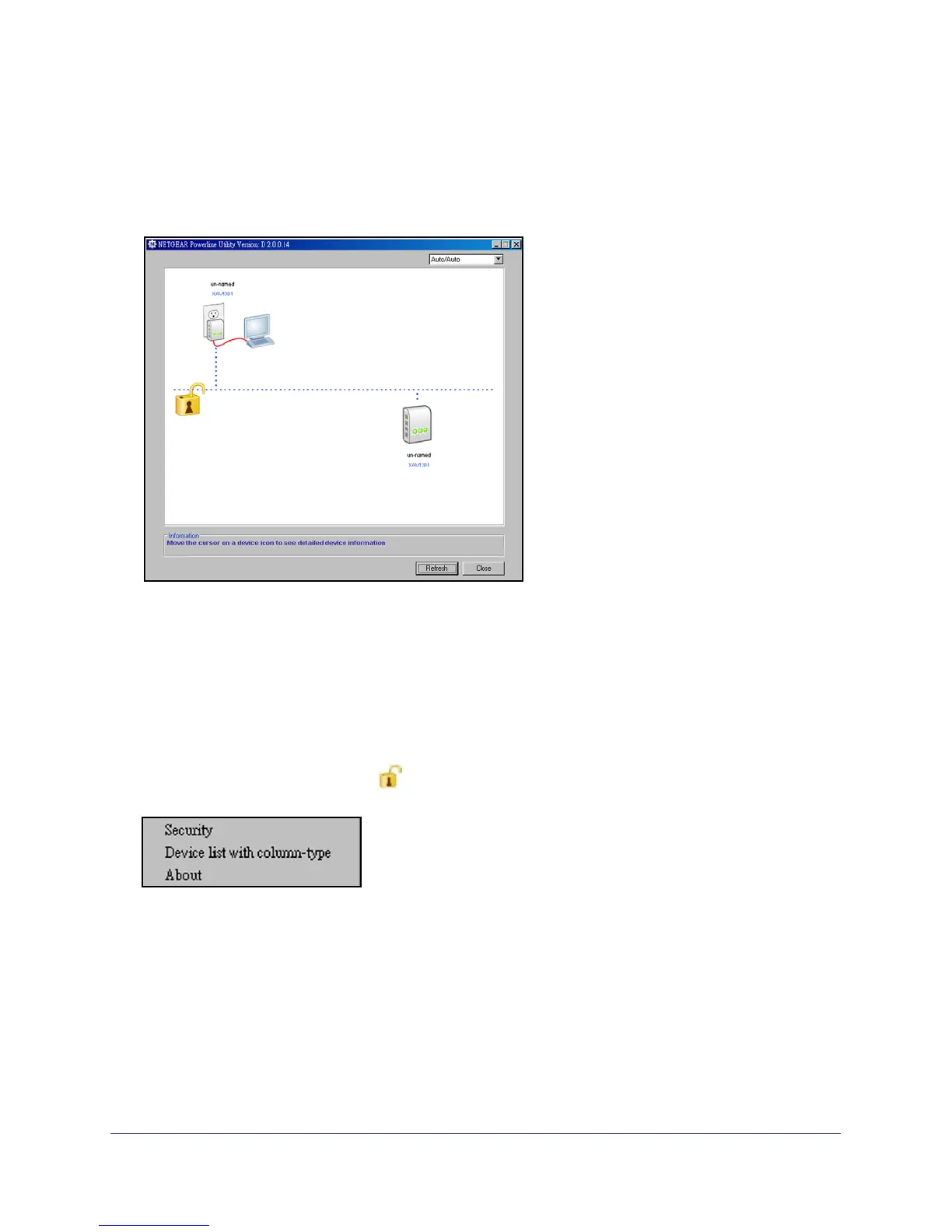

Powerline Utility Screen
When launched, the Powerline Utility opens to a screen that shows all the devices in your
Powerline network.
• Click the image of the device that you want to manage.
• If all devices are not shown, click the Refresh button to update the screen.
• The Information box at the bottom of the screen provides tips and information for using
this utility screen.
Security Icon
You can click the Security icon on the Powerline Utility main screen to go to the Security
screen, the Device list screen, or the About screen:

NETGEAR XAV1301v1/XAVB1301v1 Specifications

General

Data and routing protocols	IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-Tx)
Security encryption type	128-bit AES
MAC addresses	64: number of nodes that can be added to a single network
Frequency band:	2 -30Mbps
Modulation type:	OFDM symbol modulation
AC input	100-240V~, 0.1A (Max)
Power consumption	Normal: 3.5 W, Power saving mode: <1W
Operating temperature	0 ° to 40° C (32º to 104º F)
Operating humidity	10–90% maximum relative humidity, noncondensing
Storage humidity	5–95% maximum relative humidity, noncondensing
Electromagnetic emissions:	FCC Part 15 Class B; CE-EMC Class B; 3-home FCC Certificate
Safety agency approvals:	U L Listed (UL1950) /cUL IEC950; CE LVD; TUV CB, TUV GS
Bandwidth	2 00Mbps
Data transfer rate	U p to 200M bps with real throughput greater than 80Mbps
Compatibility	Not HomePlug v1.0 or HomePlug v1.0 Turbo compatible

Weight and Dimensions

Dimensions	90 x 53 x 32 mm (3.54 x 2.09 x 1.25 in)
Weight	0.119 kg (0.26 lb)
