NETGEAR XAV1301v1/XAVB1301v1 User Manual

Getting Started
7
Powerline AV 200 Mini Adapter XAV1301
Powerline Adapter in a Home Network
You can use Powerline AV 200 Mini Adapters to extend your Ethernet network anywhere in
your home using your existing electrical power lines.
Here, an Ethernet cable connects the
router to the Powerline network.
In another room, an Ethernet cable connects
a computer to the Powerline network.
Ethernet

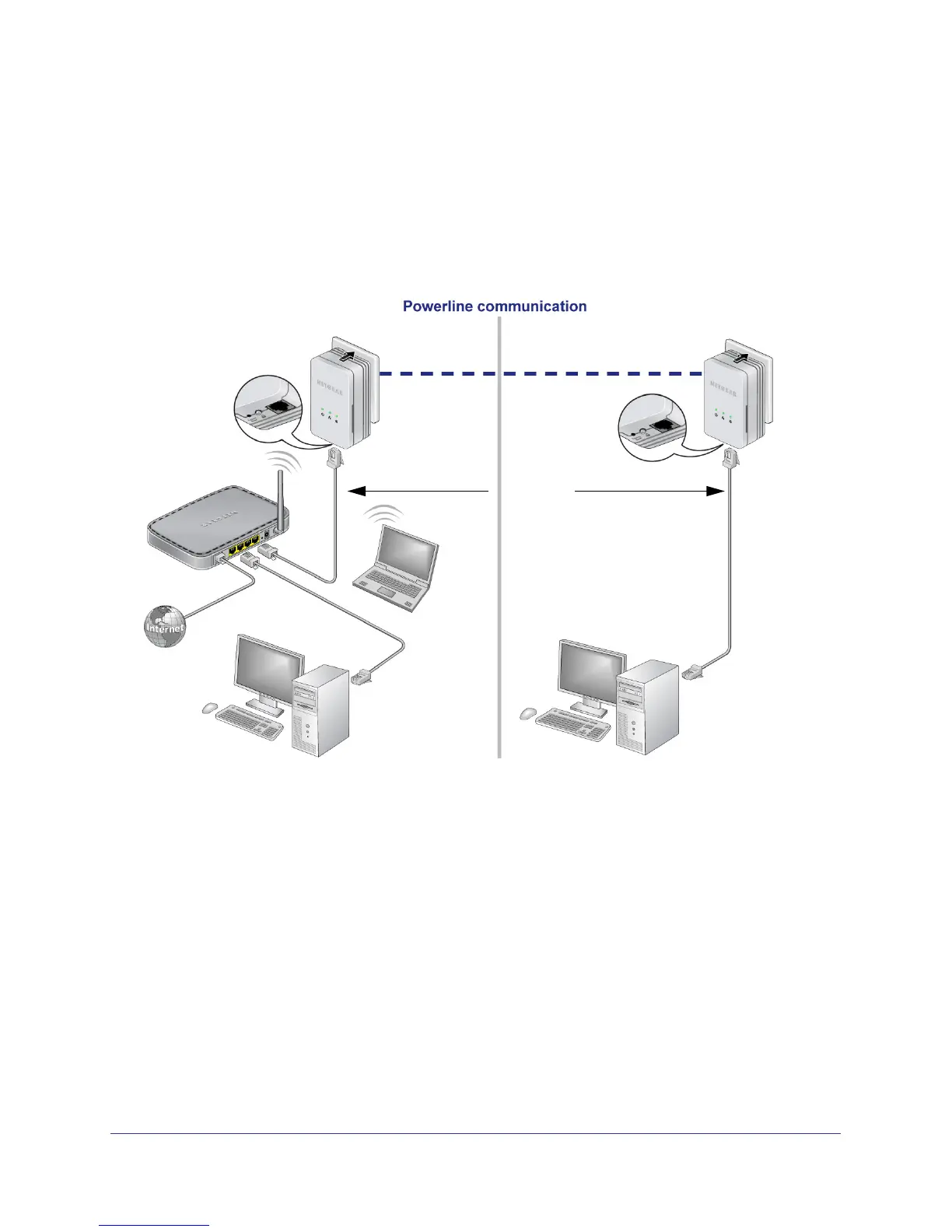

Figure 4. Powerline network with two Powerline adapters
For best performance, plan the location of your Powerline devices (to make a Powerline
network, you need at least two Powerline devices):
• Use an electrical outlet that is not controlled by a wall switch to avoid someone
unknowingly turning off the power to the outlet.
• Do not plug in Powerline products to a power strip, extension cord, or surge protector as
this might prevent them from working correctly, or reduce the network performance.
• Avoid plugging Powerline products into electrical outlets located near an appliance that
uses a lot of power, such as a washer or dryer, or a refrigerator. This could potentially
prevent the adapters from working correctly, or reduce network performance.
Different Powerline adapter models can share the network. All Powerline NETGEAR AV
products (models XAV101, XAV1004, XAV2001, XAV2501, and XAVN2001) are compatible.

NETGEAR XAV1301v1/XAVB1301v1 Specifications

General

Data and routing protocols	IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-Tx)
Security encryption type	128-bit AES
MAC addresses	64: number of nodes that can be added to a single network
Frequency band:	2 -30Mbps
Modulation type:	OFDM symbol modulation
AC input	100-240V~, 0.1A (Max)
Power consumption	Normal: 3.5 W, Power saving mode: <1W
Operating temperature	0 ° to 40° C (32º to 104º F)
Operating humidity	10–90% maximum relative humidity, noncondensing
Storage humidity	5–95% maximum relative humidity, noncondensing
Electromagnetic emissions:	FCC Part 15 Class B; CE-EMC Class B; 3-home FCC Certificate
Safety agency approvals:	U L Listed (UL1950) /cUL IEC950; CE LVD; TUV CB, TUV GS
Bandwidth	2 00Mbps
Data transfer rate	U p to 200M bps with real throughput greater than 80Mbps
Compatibility	Not HomePlug v1.0 or HomePlug v1.0 Turbo compatible

Weight and Dimensions

Dimensions	90 x 53 x 32 mm (3.54 x 2.09 x 1.25 in)
Weight	0.119 kg (0.26 lb)
