NETGEAR XAV1301v1/XAVB1301v1 User Manual

Powerline Utility
13
Powerline AV 200 Mini Adapter XAV1301
Change the Name of a Powerline Device
Powerline devices are identified by their model number and name. Any Powerline devices
that are plugged in and connected are detected by the Powerline Utility, and are shown on
the Powerline Utility main screen. If no name has been assigned to a Powerline device, it is
shown as un-named.
 To name a Powerline device in your Powerline network:

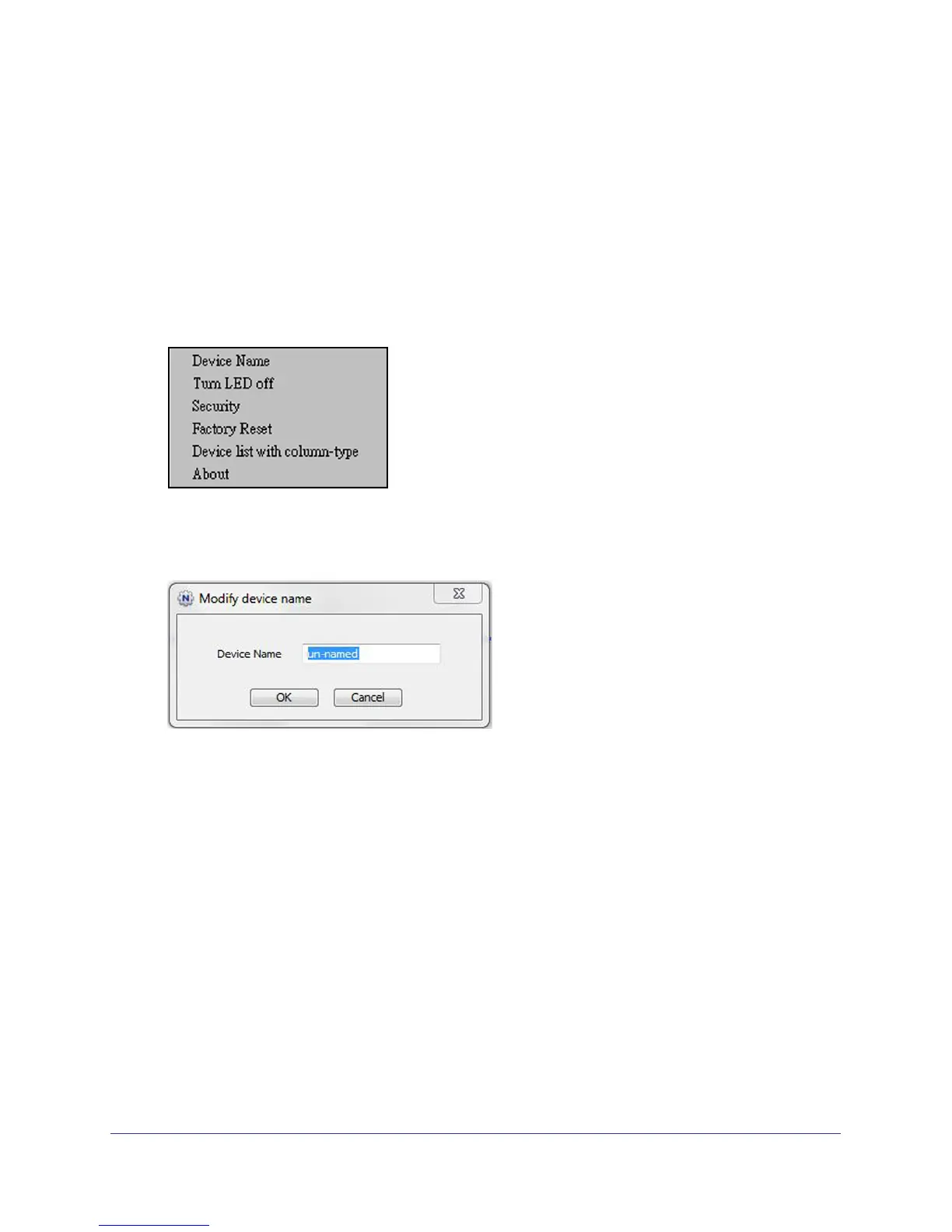

1. From the Powerline Utility main screen, click the device you want to name, and the
following pop-up menu displays:
2. Select Device Name. The utility responds that connectivity will be temporarily lost if you
continue.
3. Click OK. The following screen displays:
4. Enter a new name for the Powerline device, and click OK.
Turn LEDs Off or On
For each device in your Powerline network, you can turn the LEDs off or on. To do this, follow
these steps:
1. Click the Powerline device icon on the Powerline Utility main screen.
2. On the pop-up menu, select Turn LED off.
Note: This feature is a toggle. You can turn off LEDs if they are turned on, or
turn them on if they are currently turned off.
A screen displays advising you that connectivity will be temporarily lost while the LEDs are
being reset.

NETGEAR XAV1301v1/XAVB1301v1 Specifications

General

Data and routing protocols	IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-Tx)
Security encryption type	128-bit AES
MAC addresses	64: number of nodes that can be added to a single network
Frequency band:	2 -30Mbps
Modulation type:	OFDM symbol modulation
AC input	100-240V~, 0.1A (Max)
Power consumption	Normal: 3.5 W, Power saving mode: <1W
Operating temperature	0 ° to 40° C (32º to 104º F)
Operating humidity	10–90% maximum relative humidity, noncondensing
Storage humidity	5–95% maximum relative humidity, noncondensing
Electromagnetic emissions:	FCC Part 15 Class B; CE-EMC Class B; 3-home FCC Certificate
Safety agency approvals:	U L Listed (UL1950) /cUL IEC950; CE LVD; TUV CB, TUV GS
Bandwidth	2 00Mbps
Data transfer rate	U p to 200M bps with real throughput greater than 80Mbps
Compatibility	Not HomePlug v1.0 or HomePlug v1.0 Turbo compatible

Weight and Dimensions

Dimensions	90 x 53 x 32 mm (3.54 x 2.09 x 1.25 in)
Weight	0.119 kg (0.26 lb)
