8 | Chapter 1. Installation and Basic Configuration
XAV1601 Powerline AV+ 200 Nano User Manual
Connecting a Powerline AV+ 200 Nano to the Router
1. Plug an XAV1601 into a power outlet near your router.
Use the supplied gray Ethernet cable to connect from the XAV1601 to a LAN port on your
router so that the Powerline network can gain access to the Internet. The Power and
Ethernet LEDs on the Powerline XAV1601 Nano should turn on.
Note: It is not necessary to disconnect your router from your computer.

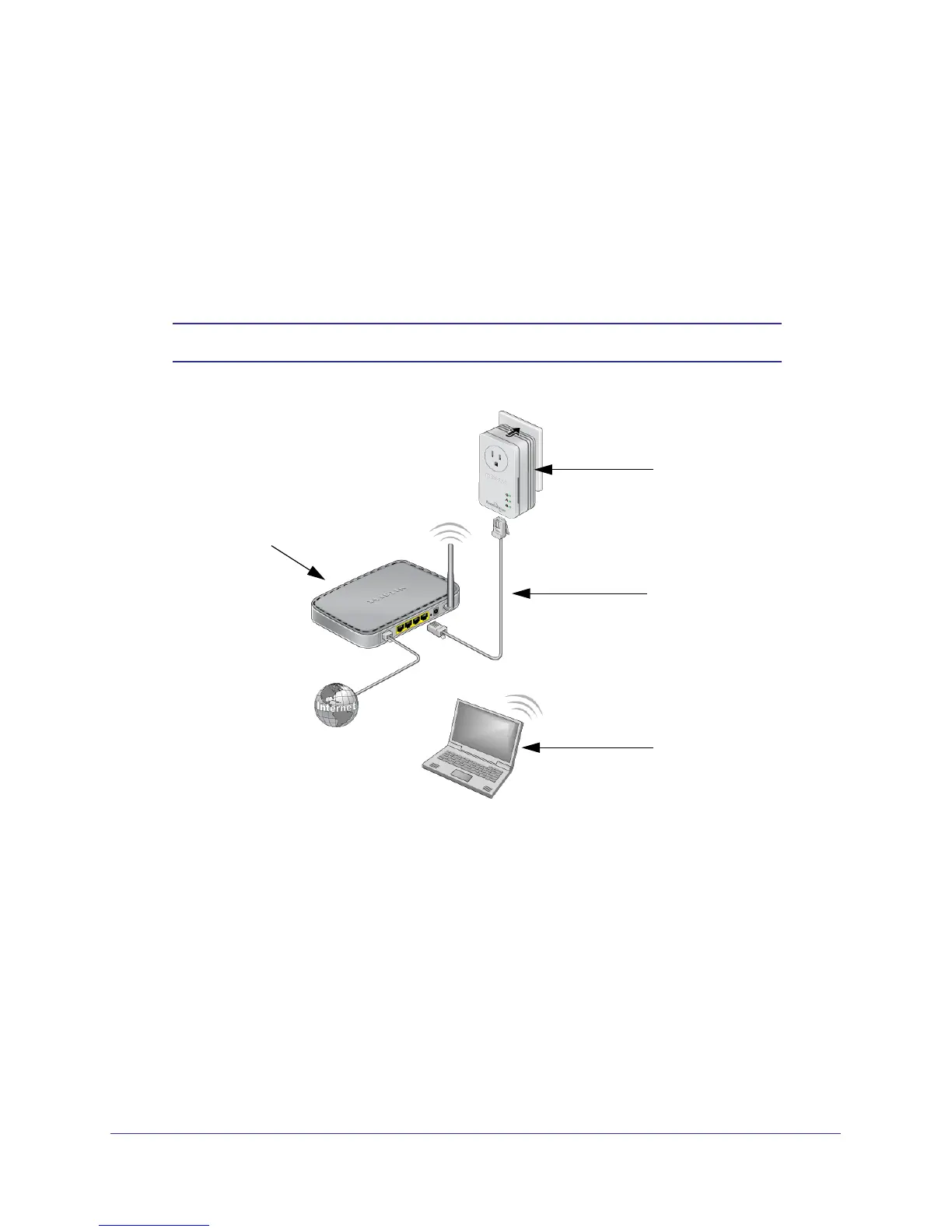

Figure 3. Connecting the XAV1601 to a Router
2. Once the Powerline adapter is plugged in and power is first applied, check to see that the
Power LED is on.
3. After approximately 10 seconds, check to see that:
a. The Power LED is solid green.
b. The Powerline LED is lit.
c. The Ethernet LED is on or blinks.
XAV1601
Supplied Ethernet cable
Router
Laptop PC
