XAV2001 Powerline AV Ethernet Adapter
Hardware Features

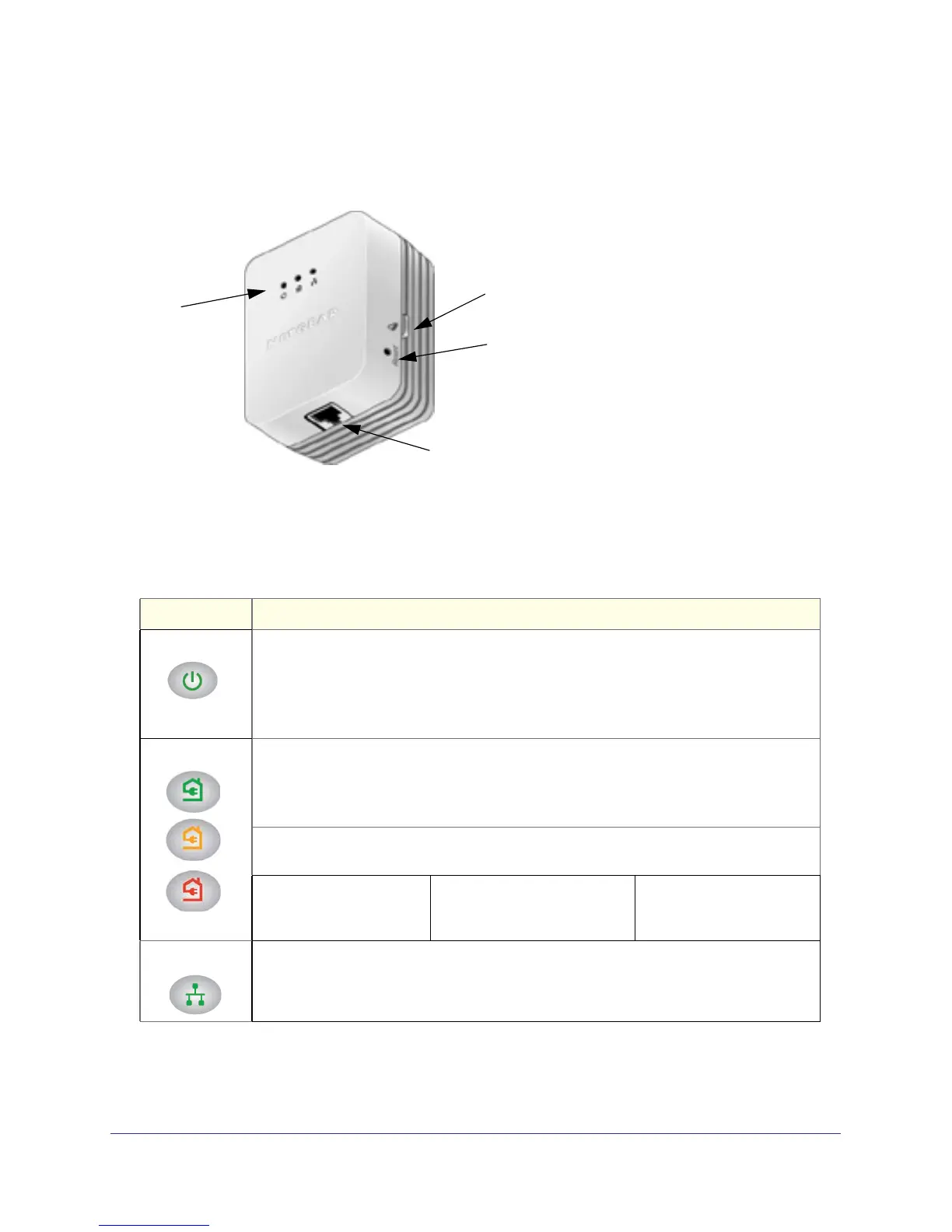

The following figure shows the adapter in detail:
Ethernet port
LEDs
Security
button
Factory
Reset
button
Figure 1. Adapter LEDs, buttons, and Ethernet port
LEDs
Table 1. XAV2001 Powerline AV Ethernet Adapter LEDs
Item Description
Power LED
• Solid green. The electrical power is on.
• Blinking green. The adapter is in the process of restarting or setting up security.
• Amber. The adapter is in power saving mode. The adapter enters power saving mode if
the Ethernet port is not linked for more than 10 minutes.
• Off. There is no electrical power, or has been turned off through the Powerline Utility.
Powerline LED
• Solid. The adapter is connected to a Powerline network.
• Blinking. The adapter is sending or receiving data.
• Off. The adapter has not found any other compatible Powerline devices using the same
encryption key.
The Pick A Plug feature lets you pick the electrical outlet with the strongest link rate,
indicated by the color displayed by the LED.
Green:
Link rate > 80 Mbps (best)
Amber:
Link rate > 50 and < 80 Mbps
(better)
Red:
Link rate < 50 Mbps (good)
Ethernet LED
• Solid. The Ethernet port is linked, but there is no activity.
• Blinking. There is traffic on the Ethernet port.
• Off. There is no Ethernet connection.
