XS712T Smart Switch
Desktop Switching
The smart switch can be used as a desktop switch to build a small network that enables
users to have 1000-Mbps access to a file server. With full duplex enabled, the switch port
connected to the server or computer can provide 2000 Mbps throughput. If a 10-Gbps
module is used to connect the switch to the file server in full-duplex operation, then the server
can provide up to 20 Gbps throughput.
*UHHQ /LQNDW*
<HOORZ /LQNDW
0
3RZHU
5HVHW
,'
)DQ
6WDFN
0DVWHU
)DFWRU\
'HIDXOWV
*67;6
)
)
*UHHQ */LQN<HOORZ *
%OLQN $&7
6)3
)
)
/LQN$FW0RGH ²
3RZHU
5HVHW
)DQ
)DFWRU\
'HIDXOWV
;67
7
) )
7
C C C

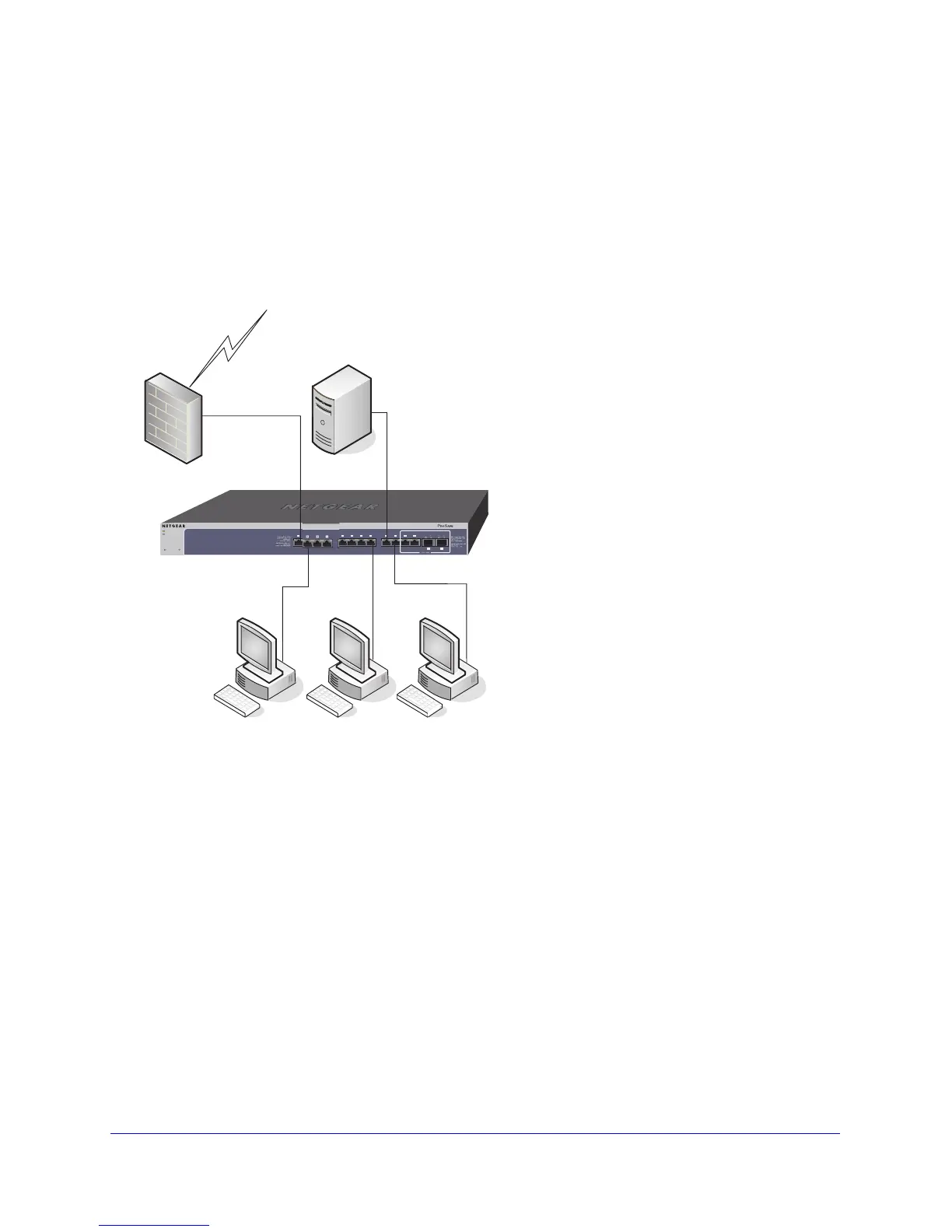

Figure 4. Desktop switching
Backbone Switching
You can use the smart switch as a backbone switch in a small network that gives users
high-speed access to servers and other network devices.
