Wireless-N USB Adapter User Manual

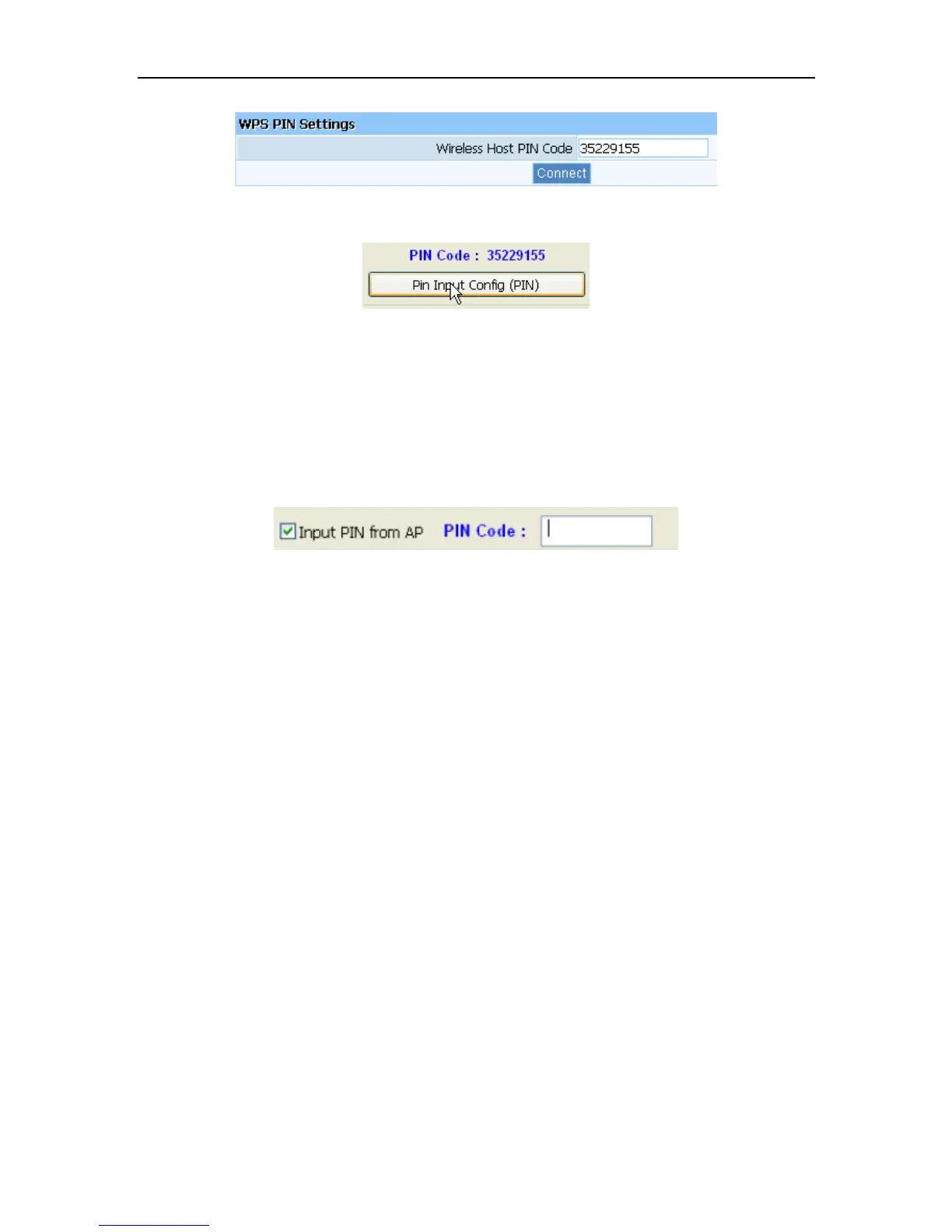

Figure 3-18
Click the ‘PIN Input Config (PIN)’ in the Wi-Fi protect setup of the adapter
Figure 3-19
Select the AP that you want to connect in the pop-up window, and then click ‘Select’
The connection will be established automatically.
Method 3:
Check ‘Input PIN from AP’ in the adapter’s WPS page into the router’s WPS configure page,
enter the PIN code of the wireless router that you want to connect (the PIN code is usually in
the back of the router), and then click the ‘PIN Input Config (PIN)’ in the Wi-Fi protect setup
of the adapter
Figure 3-20
Select the AP that you want to connect in the pop-up window, and then click ‘Select’
The connection will be established automatically.
Note: If there is more than one AP on the PBC mode when you use the method 1, there will be
session overlap. Please using method 2/3 or wait for a while push the button again.
