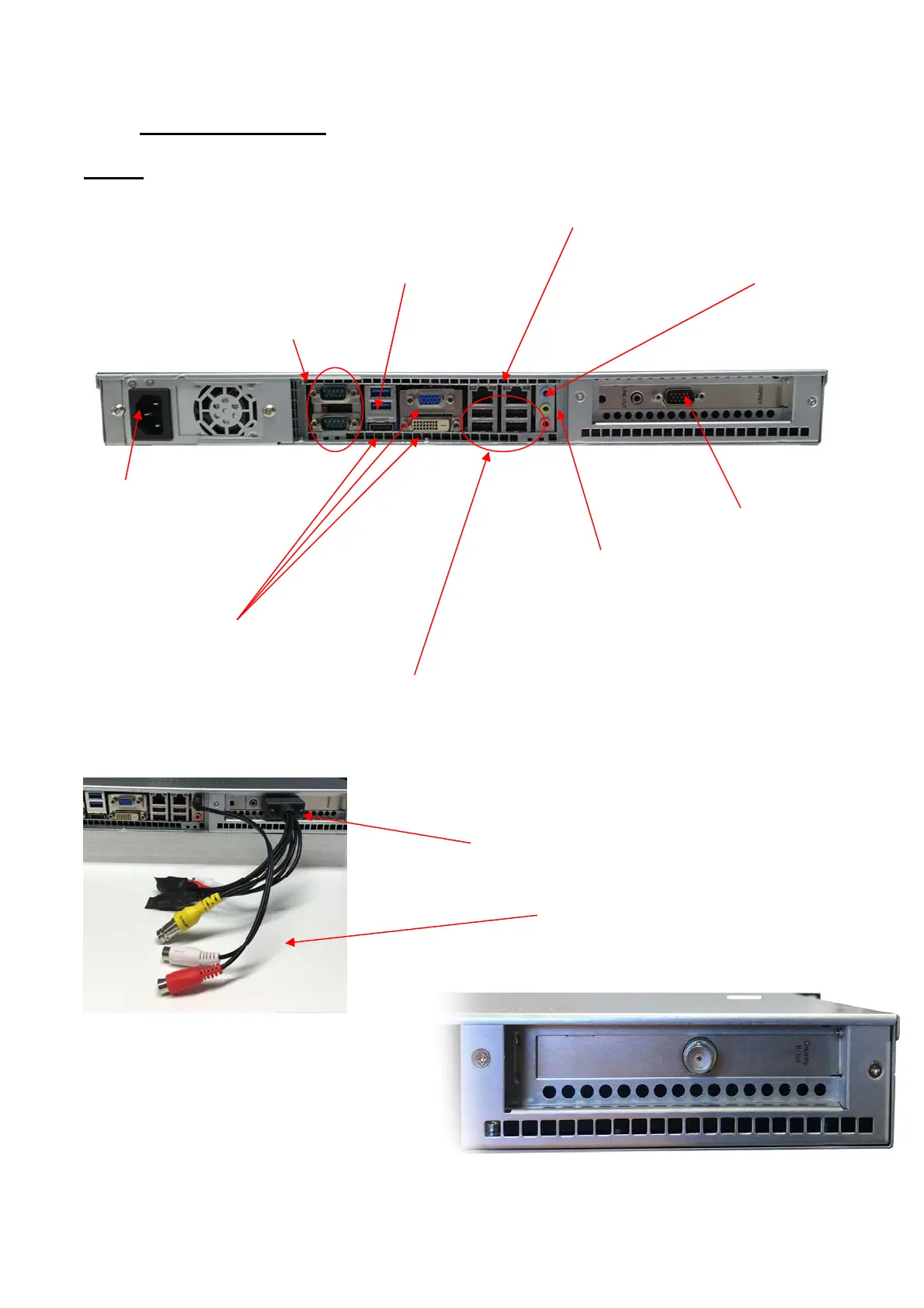

2.2 Back of the unit
1U Unit
LAN
connection
Video input via
adapter cable
supplied
Connections for
monitor – choice of 3
types (HDMI, DVI-D,
analogue VGA)
Blue = audio
recording input
(line in)
Green = audio out
speakers / headphones
Pink = Mic. in
Mains power
cable socket
4x USB 2.0 sockets (2
required for keyboPO
3125ard / mouse
2x USB 3.0
sockets
2 serial
p
o
r
ts
Supplied adapter installed
– yellow BNC is video
input
Supplied RCA
adapter for audio
recording
HD-SDI input (720 & 1080 support)
