NETmc Marine DVR - Back of the 4 U Unit

NETmc Marine DVR Manual-Rev7.2 Dec 2020 6 of 52
© NETmc Marine Ltd 2020

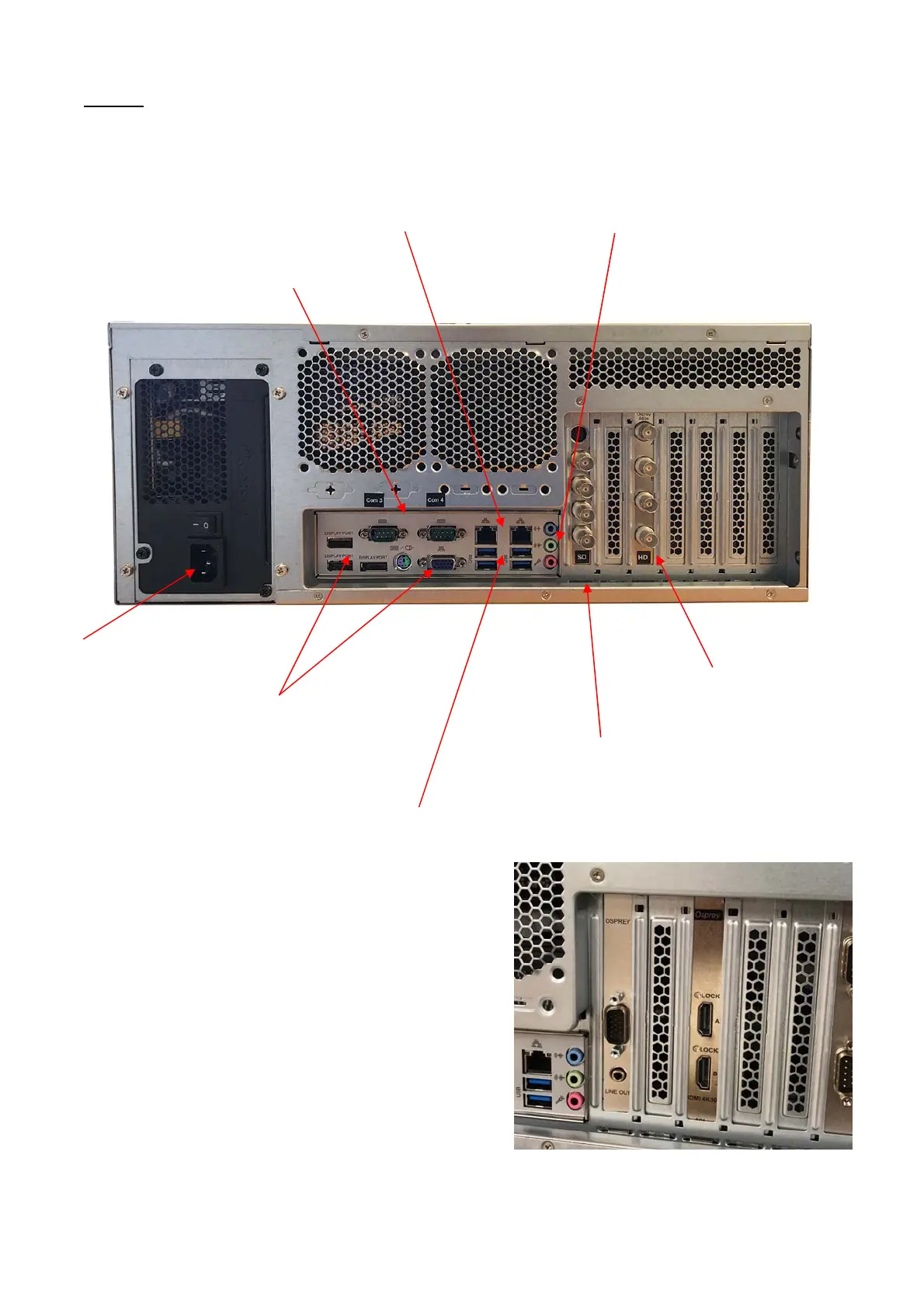

4U Unit
High Definition
inputs (HD-SDI) –
Input 1 at the top
(optional)
Connections for
monitor – VGA or
display port
Blue = audio recording
input (line in)
Green = audio out
speakers / headphones
Pink = Mic. in
Standard Definition
inputs (composite video)
– Input 1 at the top
Mains power
cable socket
4x USB 2.0 sockets (2
required for keyboard /
mouse
LAN
connections
2 serial
p
orts
HDMI input (720 & 1080 support)
