3 CLEARANCES AND INSTALLATION

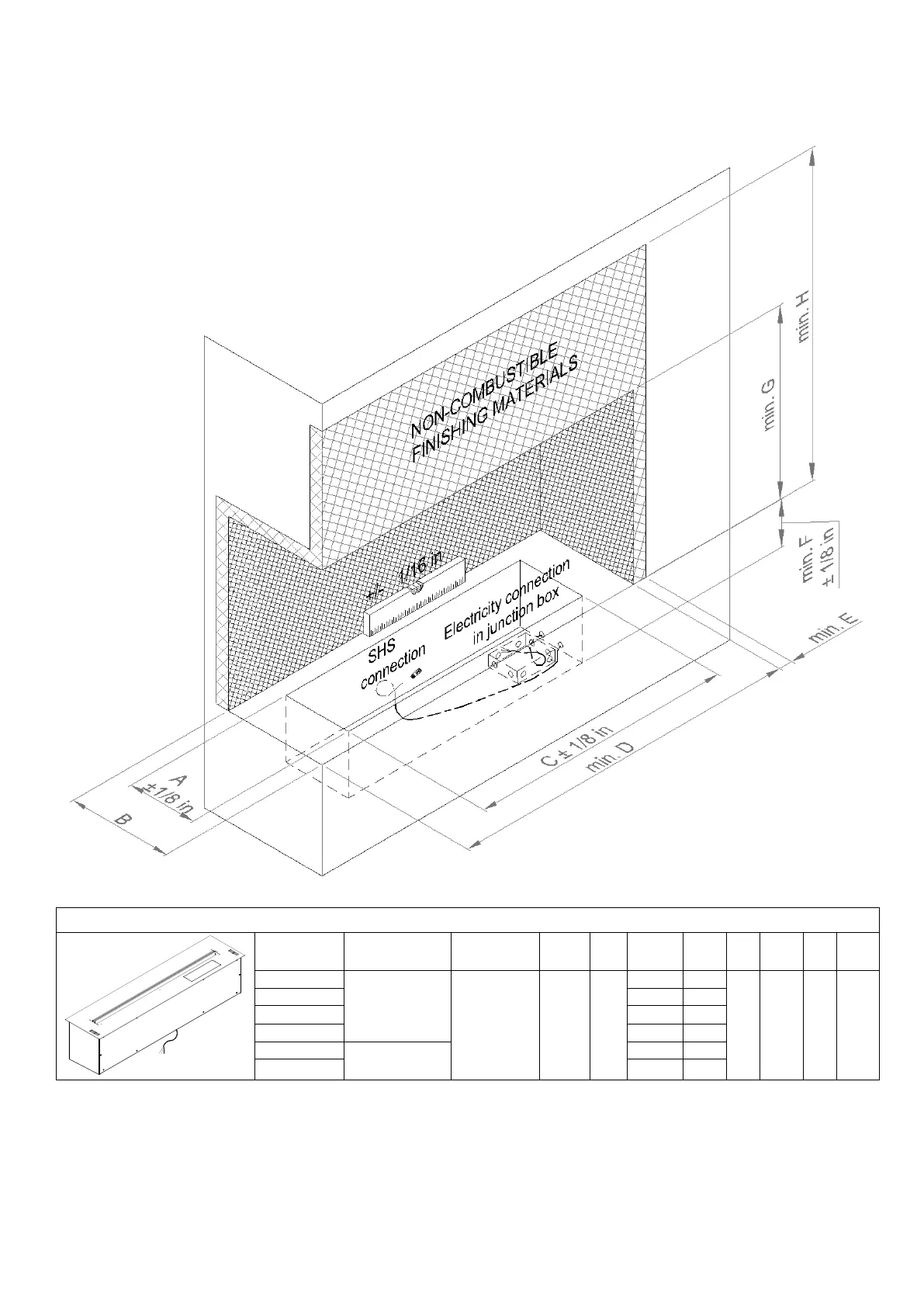

3.1 Burner Clearances and Cavity Measurements
Measurements
Burner Model
Electricity
connection
SHS
connection
A [in]
B
[in]
C [in]
D [in]
E
[in]
F [in]
G
[in]
H
[in]
NZ40B
115V, 60Hz,
min. 15A
RJ45
10 ¼”
16”
30 ½”
40”
2”
14”
20”
40”
NZ48B
38 ⅜”
48”
NZ60B
46 ¼”
60”
NZ72B
58”
72”
NZ90B
115V, 60 Hz,
min. 20A
77 ¾”
92”
NZ108B
97 ¼”
106”
- Ensure that burner flame is positioned a minimum of 40 inches away from curtains, flammable materials, and other
sources of ignition.
- Be aware of drafts. Do not place in areas where fans, vents or open doors or windows could affect the burner.
- The burner must be installed in accordance with the outlined safety requirements and clearances. Only non-
combustible materials can be used in the non-combustible zone.
